B1000 33 - 02

B1000 33

Control module - ECU Fault







On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Diagnostics run when ignition is ON.

Fault criteria:
- Control module on-board diagnostics has detected a Flash memory fault.

Diagnostic help

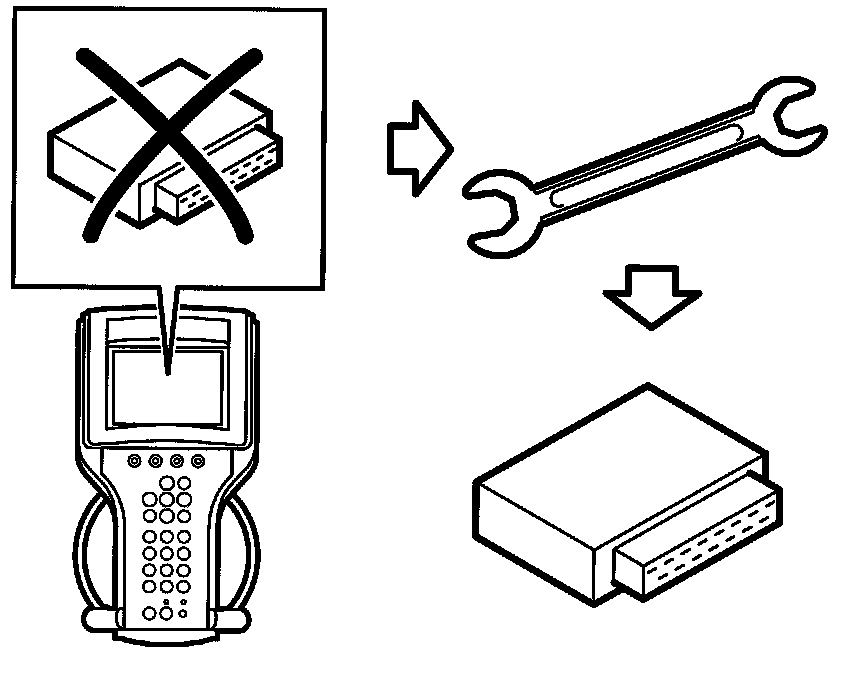

- See "Before changing a control module" and "After fitting a control module" under Fault diagnosis, general.

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
