B1000 30 - 01

B1000 30

Control Module. Internal Fault







Fault symptom
- Diagnostic communication works.
- Control module outputs switched off.
- Central locking, window lifts and door mirrors out of order.

On-board diagnosis

Type of diagnosis:
- Diagnostics run each time control module "wakes".

Enable criteria:
- Ignition ON.

Fault criteria:
- Internal control module fault

System reaction to a fault:
- Diagnostic communication works.
- Control module outputs switched off.
- Central locking, window lifts and door mirrors out of order.

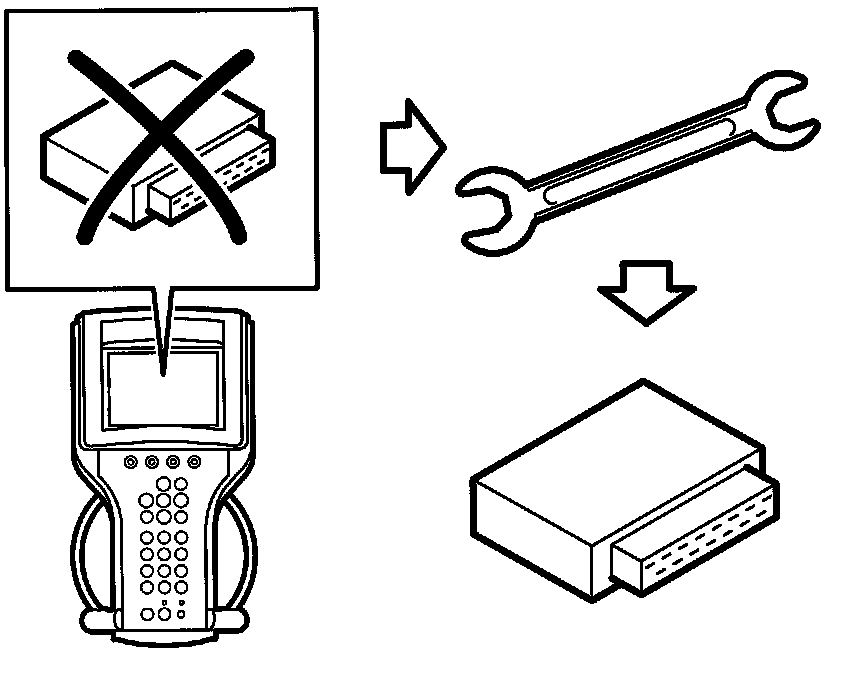

Diagnostic help
- Change the control module.
- See "Procedure for control module replacement"

Diagnostic help

Diagnosis regards:
- To locate electrical faults in the control module internal electronics.

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
