B1000 08 (ICM0,, ICM1, ICM2, ICM3)

B1000 08

Control Module. Internal Fault







On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.

Fault criteria:
- Internal communication fault between processors 1 and 2.

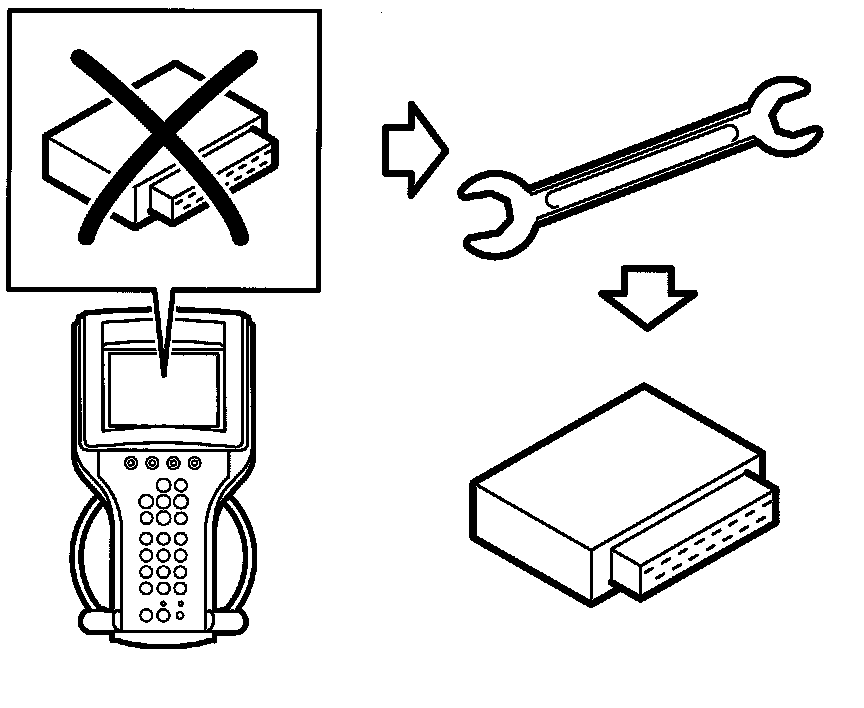

Diagnostic help
- Change the control module.
- See "Procedure for control module replacement"

Diagnostic help

Functions in the diagnostic tool related to the fault:
- See menu "All - Add/Remove"
