B0961 0F

B0961 0F

Right Outer Distance Circuit, Sensor Ringing Time Exceptions







Fault symptom
- Message "Parking assistance out of order" shown in SID.
- SPA stops all measurements and the acoustic signals from SID for SPA are switched off.

On-board diagnosis

Type of diagnosis:

Enable criteria:
- Ignition ON.
- Reverse gear selected
- Battery voltage greater than 9 V.

The following diagnostic trouble codes may not be generated:
- B1350 01
- B1350 02

System reaction to a fault:
- The control module is inactive until it receives a signal from the sensor.

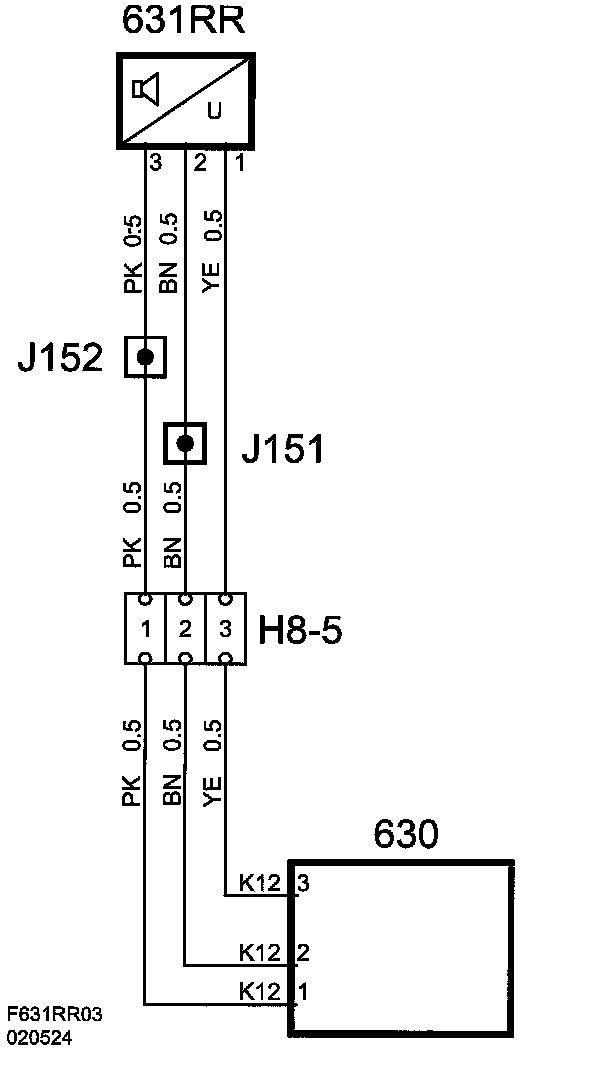

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

See Reading:
- Distance, Right Outer Sensor
(See also description of readings/activations in diagnostic tool)
