B0530 02 (REC - Rear Electrical Center)

B0530 02

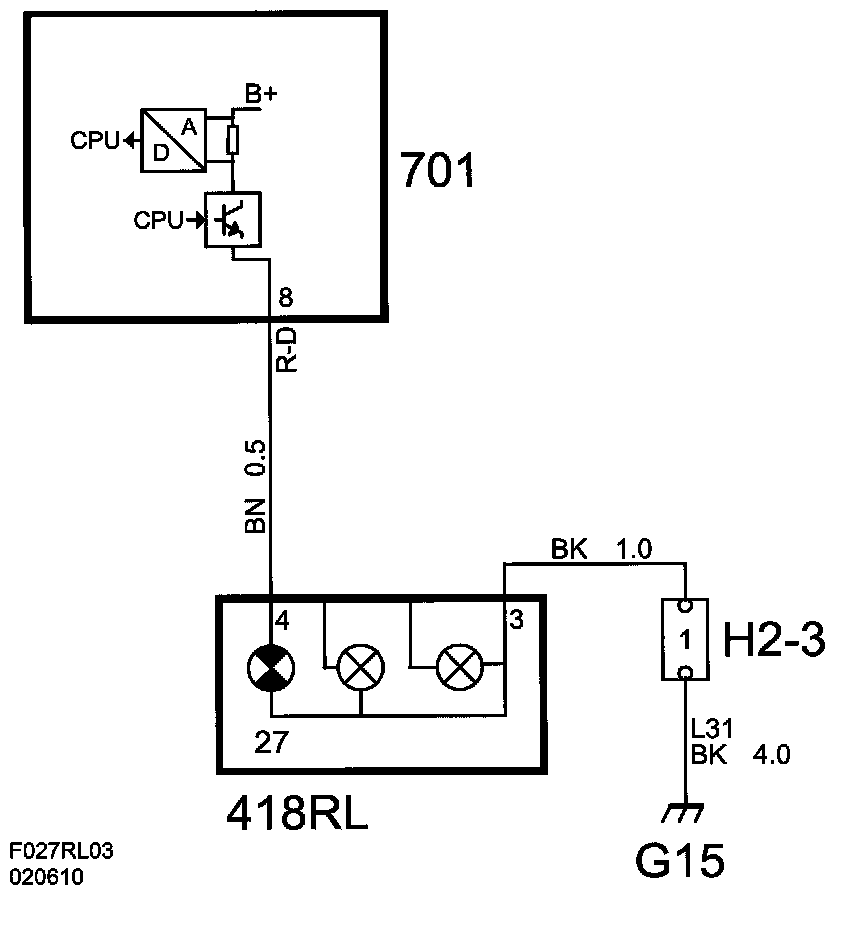

Turn Indicator Left Rear Circuit, Short to Ground







Fault symptom
- Direction indicators are activated at double speed.
- Left rear direction indicator, faulty function.
- Messages shown in SID.

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Left direction indicators on.

Fault criteria:
- Current consumption greater than 6 A for more than 6 ms

System reaction to a fault:
- Control module output switched off.

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Activation:
- Turn Indicator Left Rear
