B0480

B0480 00

Flame Off from High Power







Fault symptom
- Poor cabin heating

On-board diagnosis

Type of diagnosis:
- Continuous

Enable criteria:
- Ignition ON.
- Heater is activated.

Fault criteria:
- No flame in high output mode.

System reaction to a fault:
- Heater is switched off.

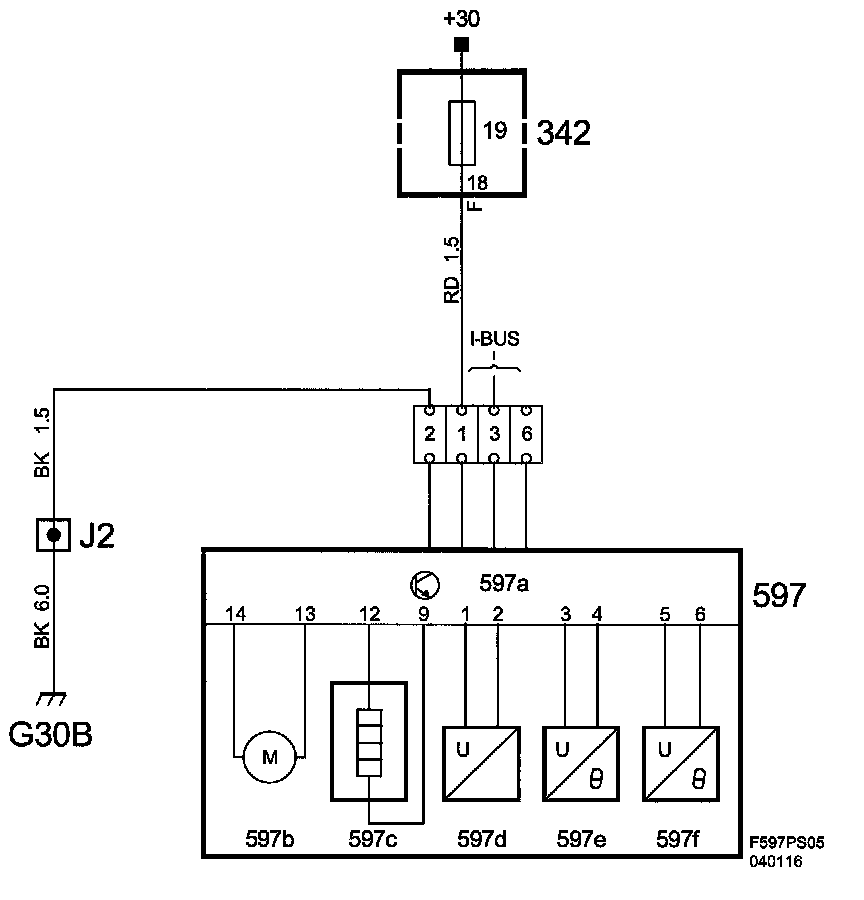

Checking the wiring harness
- Move the wiring harness at several spots and in several directions to reveal intermittent breaks and short-circuits. Check switches, connectors and crimp connections for oxidation, retracted pins and pin clamping force.

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.

Functions in the diagnostic tool related to the fault:

Test value:
- Flame Detected
(See also description of readings/activations in diagnostic tool)
