B0080

B0080 00

Driver Side B-pillar Sensor, Internal Fault in Sensor







Fault symptom
- Airbag warning lamp is lit

On-board diagnosis

Type of diagnosis:
- Asynchronous

Enable criteria:
- Ignition ON.

Fault criteria:
- Incorrect signal from sensor.

System reaction to a fault:
- Airbag warning lamp on
- The airbag system should be considered non-operational. There may, however, be some functionality.

Diagnostic help

IMPORTANT: Read "Before starting fault diagnosis" under Fault diagnosis, general before beginning fault diagnosis.

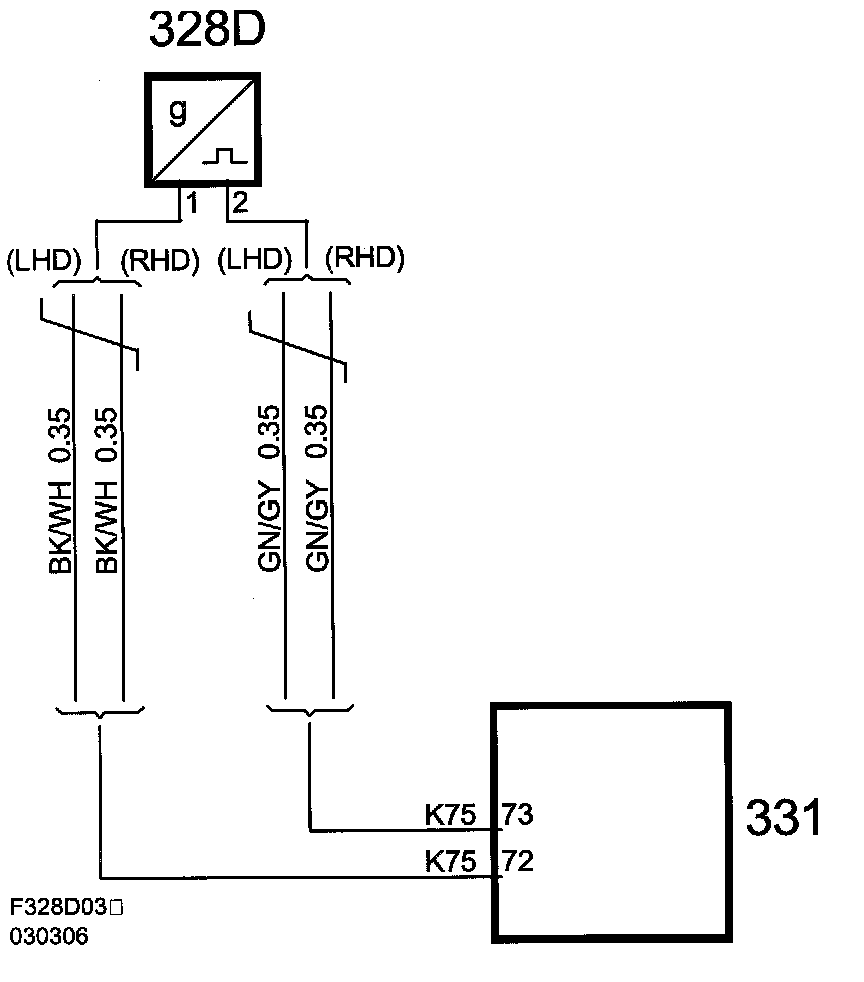

Diagnostic help

Diagnosis regards:
- Electrical fault in connecting leads or component.
