Shift Solenoids, Duty Solenoids and ATF Temperature Sensor
Shift Solenoids, Duty Solenoids And ATF Temperature SensorREMOVAL
SHIFT SOLENOIDS AND DUTY SOLENOIDS
Lift-up the vehicle.
Clean the transmission exterior.
Replace the gasket with a new one, and tighten the drain plug.

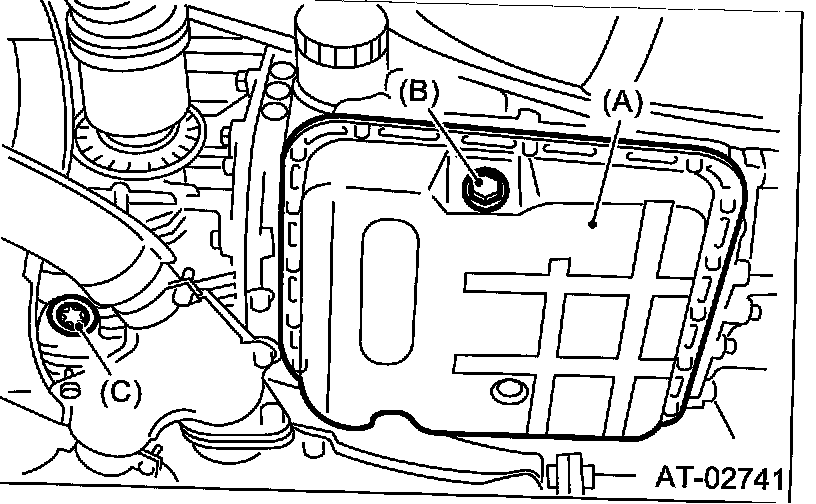

Drain the ATF completely.
Tightening torque: 25 Nm (2.5 kgf-m, 18.1 ft. lbs.)
(A) Oil pan
(B) Drain plug (ATF)
(C) Differential gear oil drain plug
Remove the oil pan.

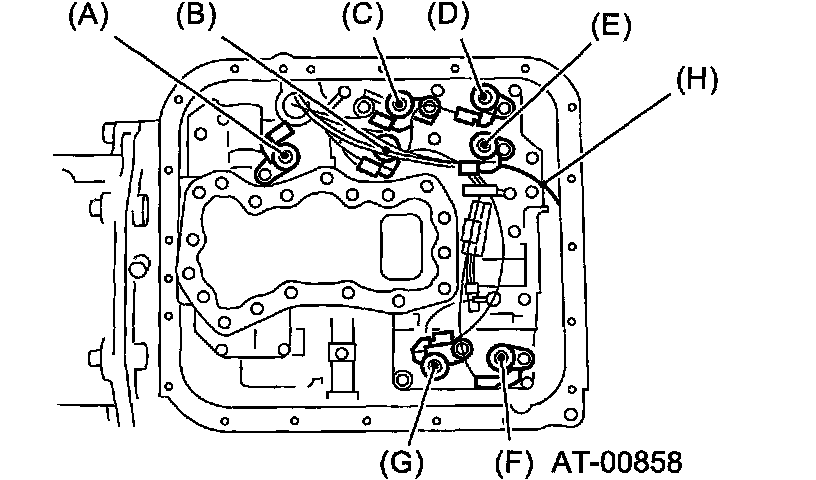

Disconnect the solenoid and duty solenoid connectors.
(A) Lock-up duty solenoid (Blue)
(B) Low clutch timing solenoid (Gray)
(C) Line pressure duty solenoid (Red)
(D) Shift solenoid 2 (Yellow)
(E) Shift solenoid 1 (Green)
(F) 2-4 brake timing solenoid (Black)
(G) 2-4 brake duty solenoid (Red)
(H) Transfer duty solenoid (Brown)

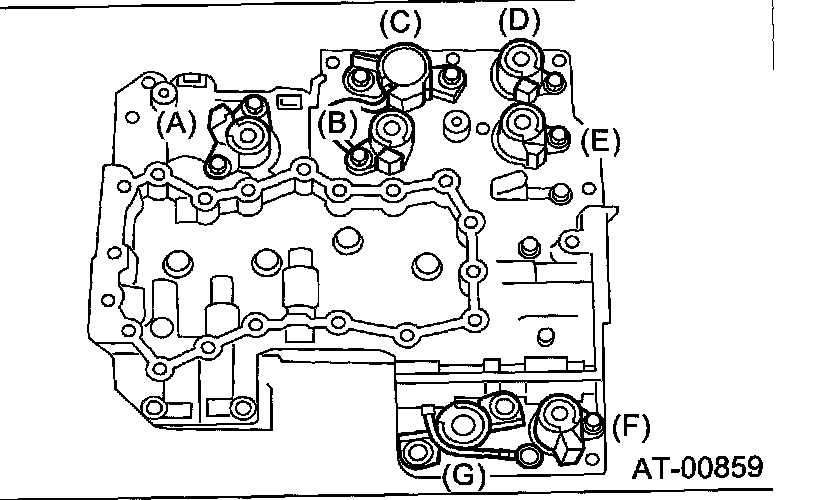

Remove the solenoids and duty solenoids.
(A) Lock-up duty solenoid (Blue)
(B) Low clutch timing solenoid (Gray)
(C) Line pressure duty solenoid (Red)
(D) Shift solenoid 2 (Yellow)
(E) Shift solenoid 1 (Green)
(F) 2-4 brake timing solenoid (Black)
(G) 2-4 brake duty solenoid (Red)
ATF TEMPERATURE SENSOR
For removal of ATF temperature sensor, refer to Front Vehicle Speed Sensor.
INSTALLATION
SHIFT SOLENOIDS AND DUTY SOLENOIDS

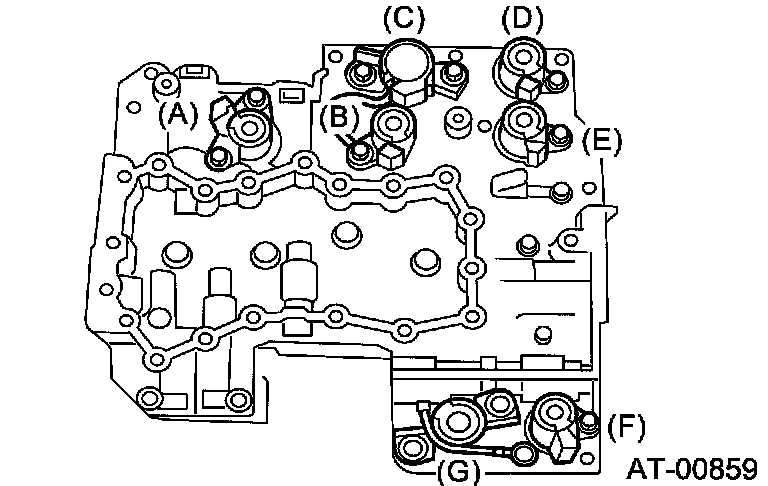

Insert solenoid and duty solenoid to specified position.
(A) Lock-up duty solenoid (Blue)
(B) Low clutch timing solenoid (Gray)
(C) Line pressure duty solenoid (Red)
(D) Shift solenoid 2 (Yellow)
(E) Shift solenoid 1 (Green)
(F) 2-4 brake timing solenoid (Black)
(G) 2-4 brake duty solenoid (Red)

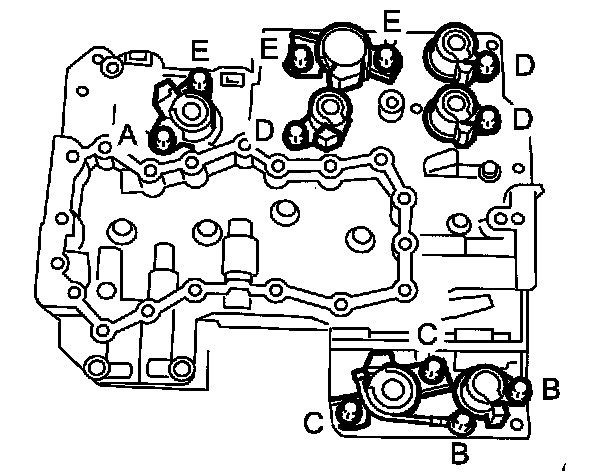

Tighten the bolts and nuts.
Tightening torque: 8 Nm (0.8 kgf-m, 5.8 ft. lbs.)
Bolt length mm (in)
(A) 12 (0.47)
(B) 40 (1.57)
(C) 45 (1.77)
(D) 62 (2.44)
(E) 73 (2.87)

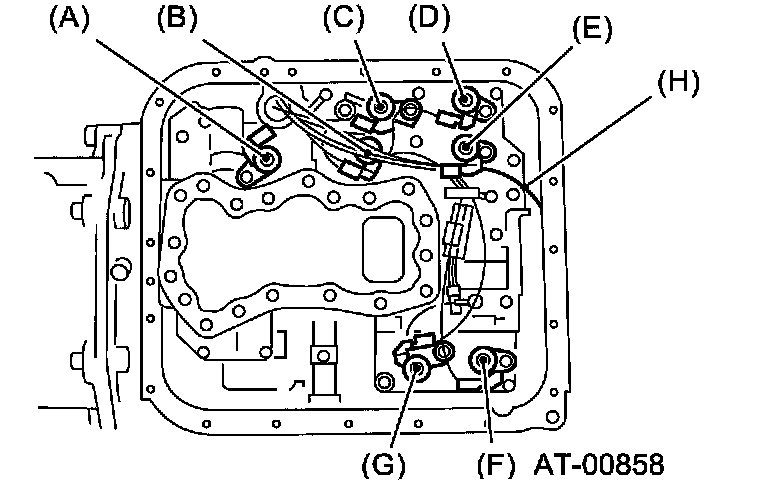

Connect the harness connectors.
Connect the connectors of same color, and secure the harness to valve body using clips.
(A) Lock-up duty solenoid (Blue)
(B) Low clutch timing solenoid (Gray)
(C) Line pressure duty solenoid (Red)
(D) Shift solenoid 2 (Yellow)
(E) Shift solenoid 1 (Green)
(F) 2-4 brake timing solenoid (Black)
(G) 2-4 brake duty solenoid (Red)
(H) Transfer duty solenoid (Brown)

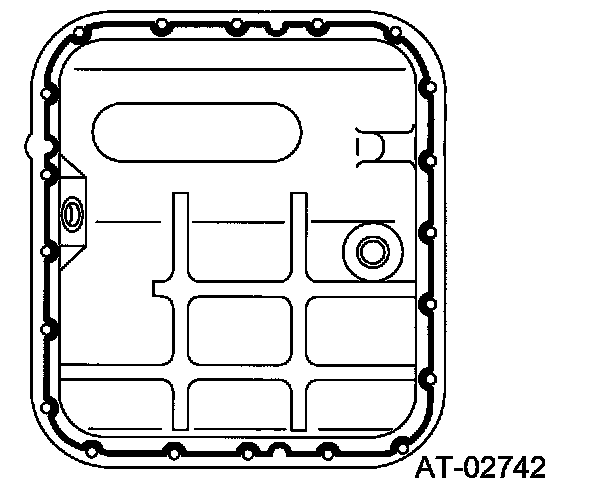

Apply proper amount of liquid gasket to the entire oil pan mating surface.
Fluid packing: THREE BOND 1217B (Part No. 32005004)

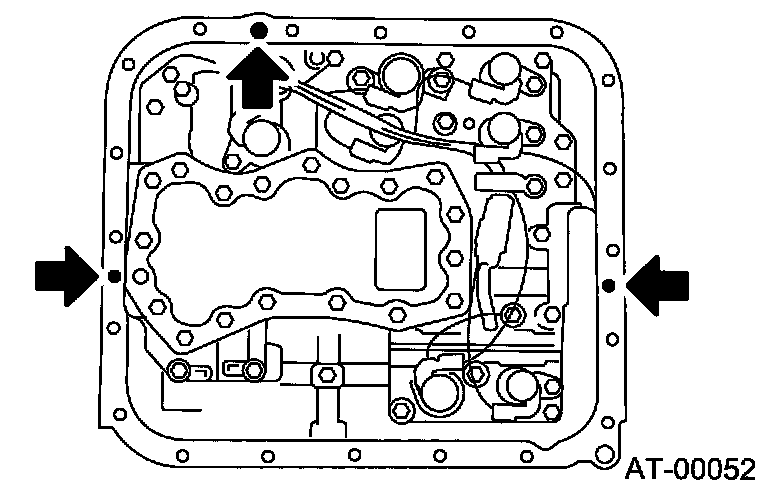

Apply liquid gasket fully to three holes other than screw holes on transmission case.
Fluid packing: THREE BOND 1217B (Part No. 32005004)
Install the oil pan.
Tightening torque: 5 Nm (0.5 kgf-m, 3.6 ft. lbs.)
fill ATF up to the middle of the COLD side on level gauge by using the gauge hole.
Check the ATF level.
ATF TEMPERATURE SENSOR
For installation of ATF temperature sensor, refer to Front Vehicle Speed Sensor.
