Speedometer Gear

Speedometer Gear
REMOVAL
Remove the manual transmission assembly from vehicle.
Remove the back-up light switch and neutral position switch.
Remove the transfer case with extension case assembly.
Remove the transmission case.
Remove the vehicle speed sensor.

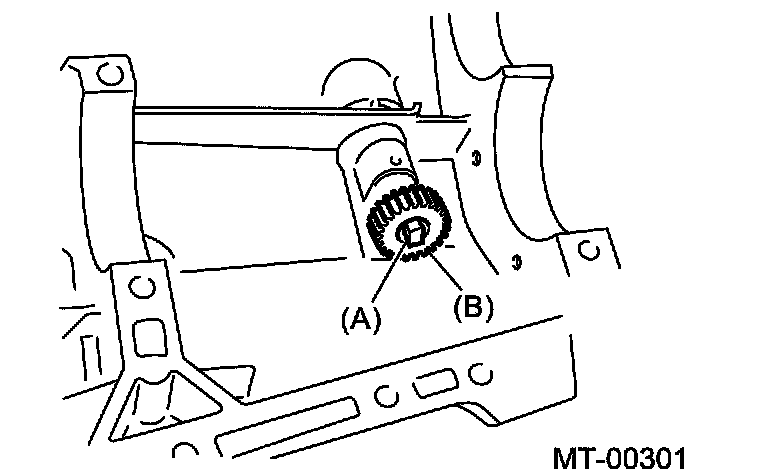

(A) Outer snap ring
(B) Speedometer driven gear

Remove the outer snap ring and pull out speedometer driven gear. Next, remove the oil seal, speedometer shaft and washer.

INSTALLATION
Install the washer and speedometer shaft, and press fit the oil seal with ST.

Note: Use a new oil seal, if it has been removed.

ST 32005177 or 32005157 PRESS
Install the vehicle speed sensor.

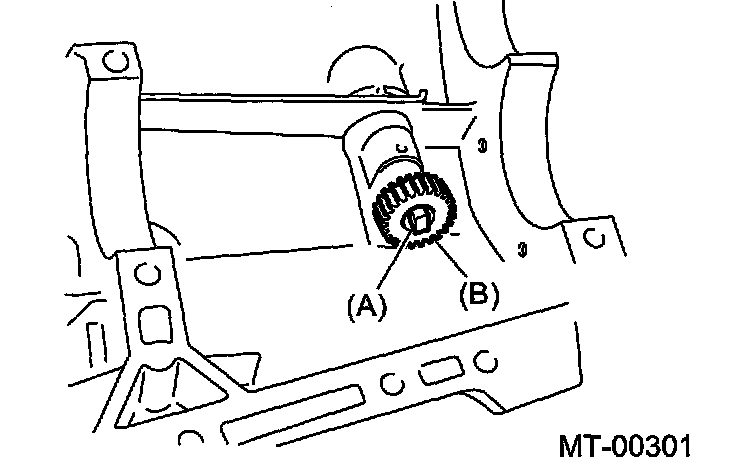

(A) Outer snap ring
(B) Speedometer driven gear

Install the speedometer driven gear and snap ring.

Note: Use a new snap ring, if it has been removed.

Install the transmission case.
Install the transfer case with extension case assembly.
Install the back-up light switch and neutral position switch.
Install the manual transmission assembly to vehicle.

INSPECTION
Check the speedometer gear, oil seal and speedometer shaft for damage. Replace if damaged.
