Seals and Gaskets: Service and Repair

Oil Seal
INSPECTION
Check the oil seal portion for leakage. If leakage is found, replace the oil seal with a new one.

REPLACEMENT
Clean the transmission exterior.
Drain the gear oil completely.

Note: Tighten the drain plug after draining gear oil.

Tightening torque: 69 Nm (7.0 kgf-m, 50.6 ft. lbs.)





Remove the rear exhaust pipe and muffler.
Remove the heat shield cover. (If equipped)
Remove the propeller shaft.

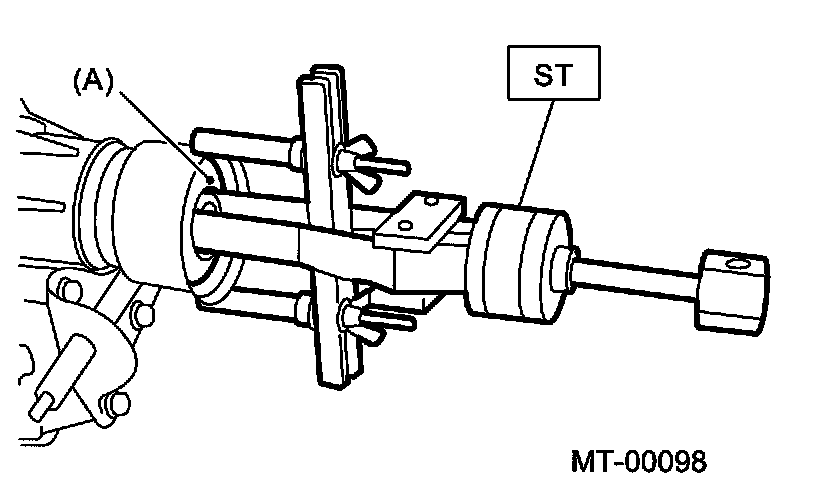

Using the ST, remove the oil seal.
ST 32005071 PULLER ASSY




(A) Oil seal

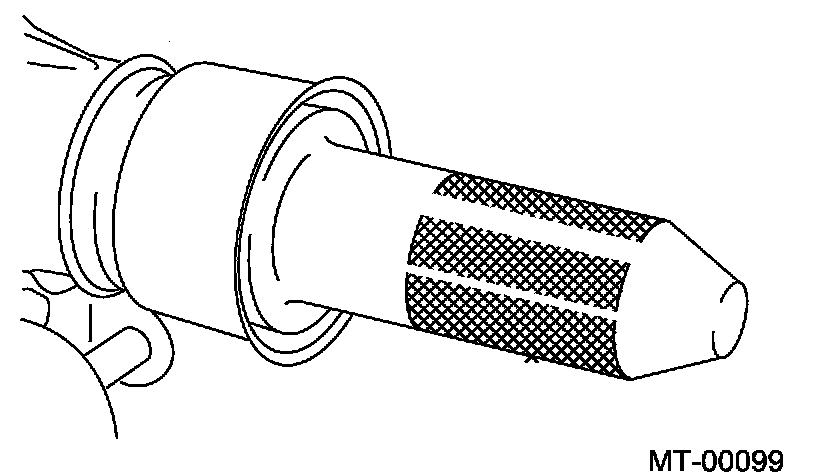

Using the ST, install the oil seal.
ST 32005087 INSTALLER





Install the propeller shaft.
Install the heat shield cover. (If equipped)
Install the rear exhaust pipe and muffler.
Pour gear oil and check the oil level.
