Fluid - M/T: Service and Repair
Transmission Gear OilREPLACEMENT
1. Pull out the oil level gauge.
2. Lift-up the vehicle.
3. Remove the drain plug using TORX BIT T70, and drain the transmission gear oil completely.
CAUTION:
Directly after the engine has been running, the transmission gear oil is hot. Be careful not to burn yourself.
NOTE:

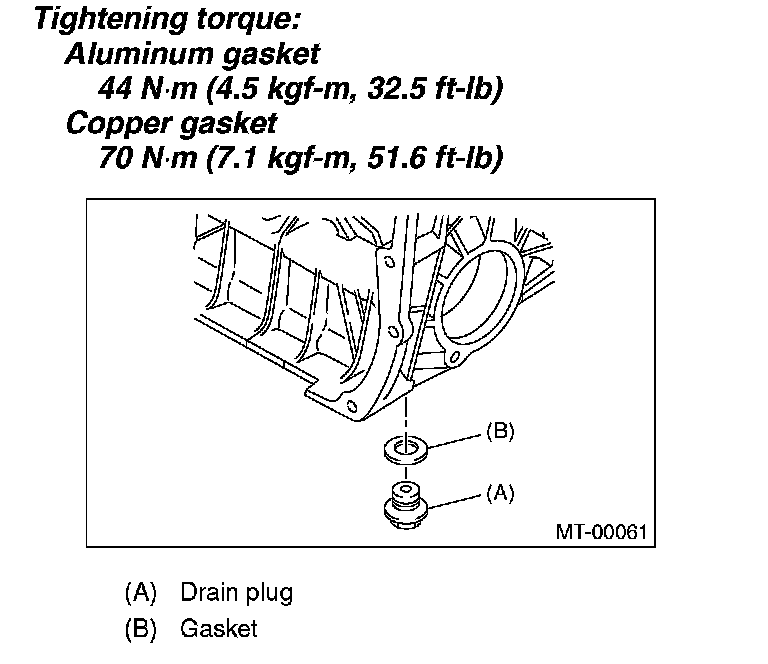

Tighten the transmission drain plug after draining the transmission gear oil.
4. Lower the vehicle.
5. Pour gear oil into the gauge hole.
Recommended gear oil:
Use GL-5 (75W-90) or equivalent.
Gear oil capacity:
3.5 liters (3.7 US quarts, 3.1 Imp quarts)
6. Check the level of the transmission gear oil.
CAUTION:
When inserting the level gauge into transmission gear, align the protrusion on the top end of level gauge with the notch in the gauge hole.
NOTE:
The level should be within the specified range marked on the gauge.
