Transmission Case Assembly

TRANSMISSION CASE ASSEMBLY
Drive pinion shim adjustment

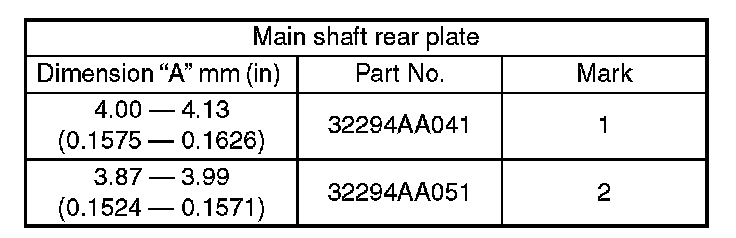

Selection of main shaft rear plate
