Transfer Case or Rear Case

TRANSFER CASE OR REAR CASE

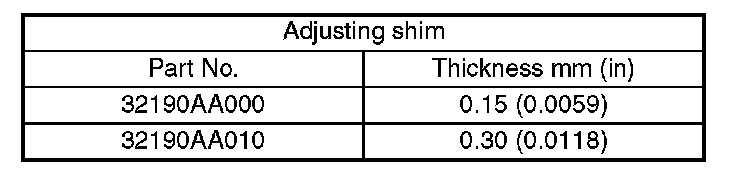

Neutral position adjustment

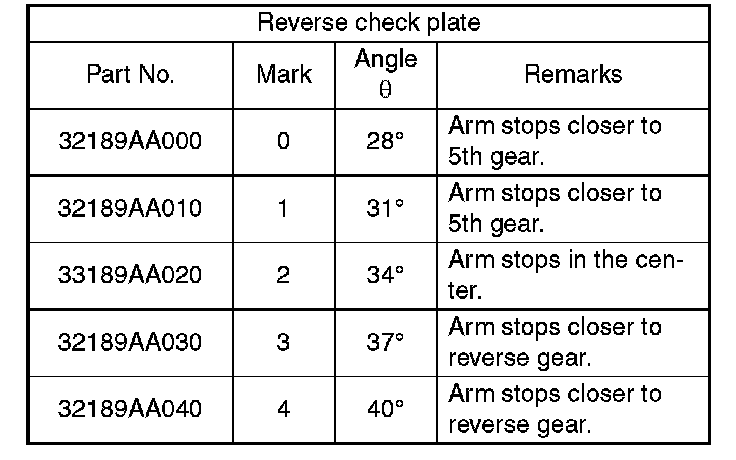

Reverse check plate adjustment
