Reverse Idler Gear

REVERSE IDLER GEAR

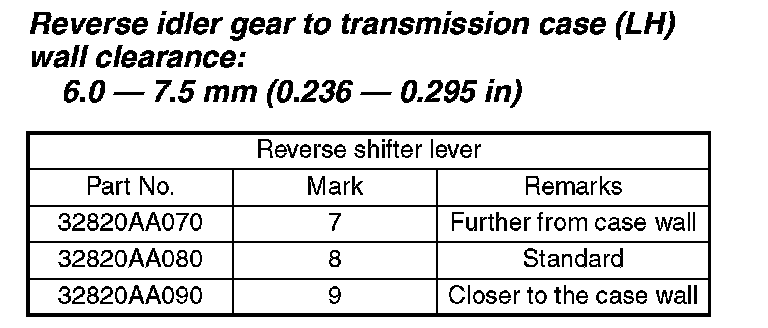

Adjustment of reverse idler gear position

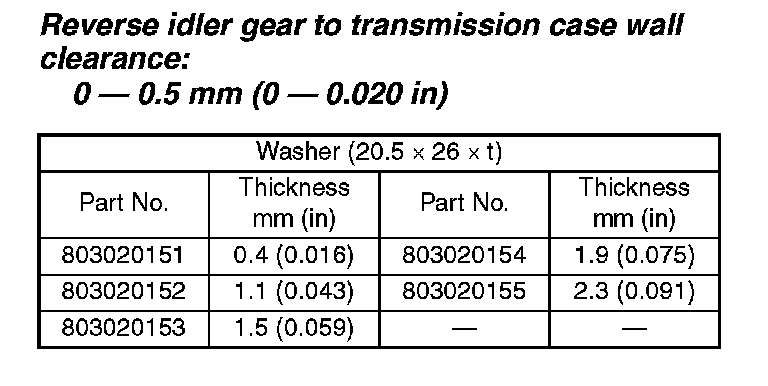

After installing a suitable reverse shifter lever, adjust the clearance using washers.
