Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Transmission and Drivetrain >> Clutch >> Testing and Inspection >> Diagnostic Diagram of Clutch Drag

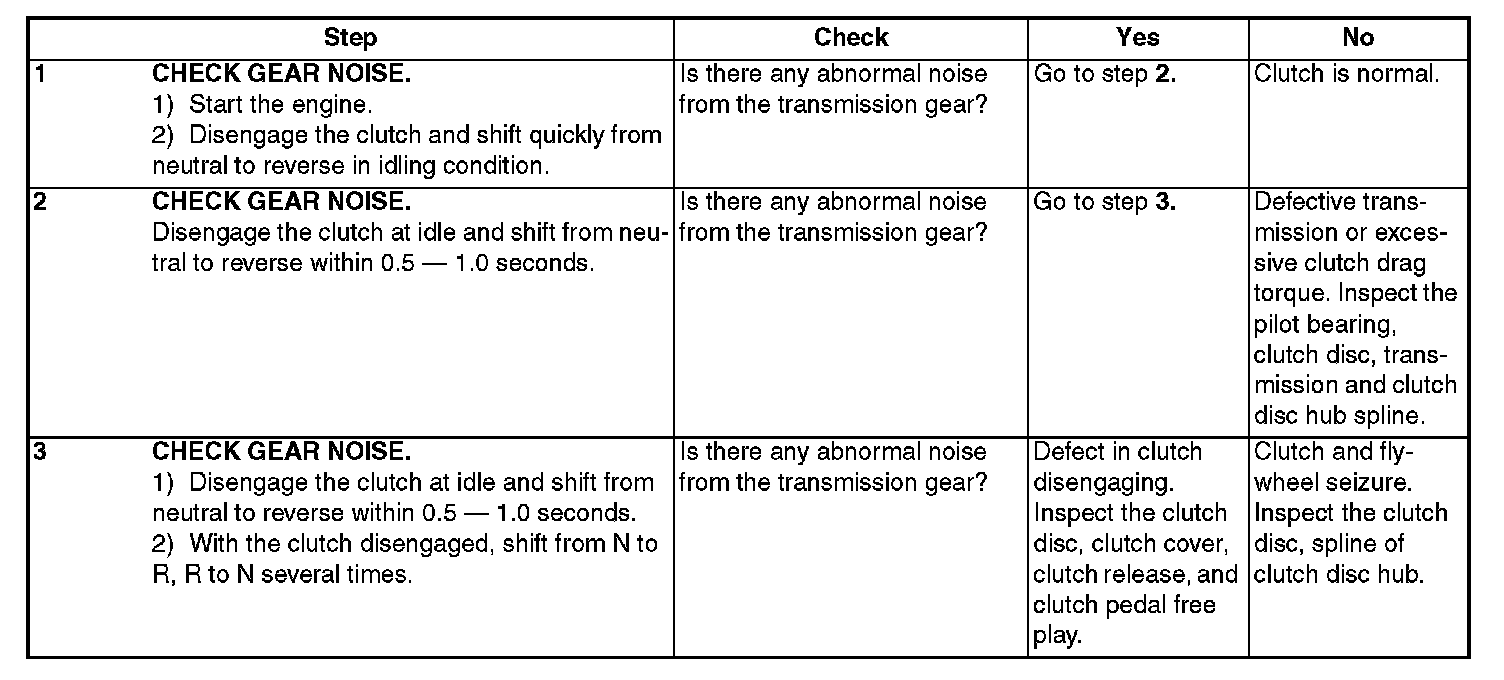

Diagnostic Diagram of Clutch Drag

Step 1 - Step 3:
