Pressure Plate: Testing and Inspection

INSPECTION
CLUTCH COVER

Note: Visually check for the following items without disassembling, and replace or repair if defective.

^ Loose thrust rivet
^ Damaged or worn bearing contact area at center of diaphragm spring

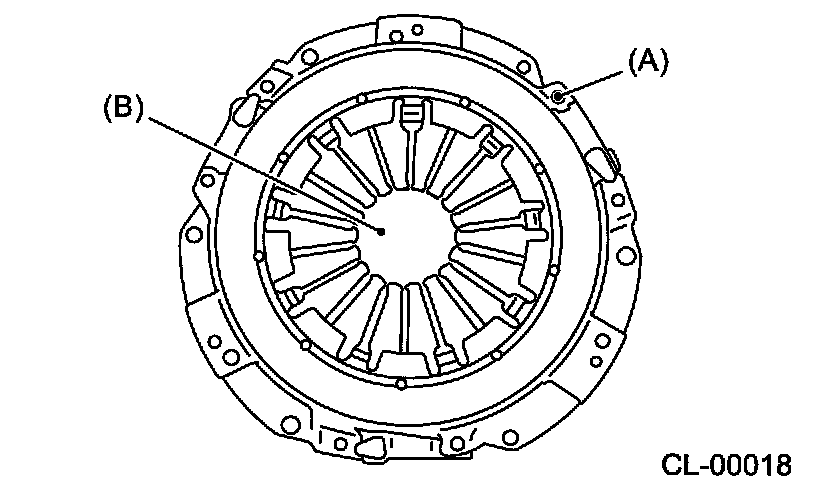

(A) Thrust rivet
(B) Diaphragm spring
