Clutch Release Fork: Testing and Inspection
INSPECTIONRELEASE LEVER

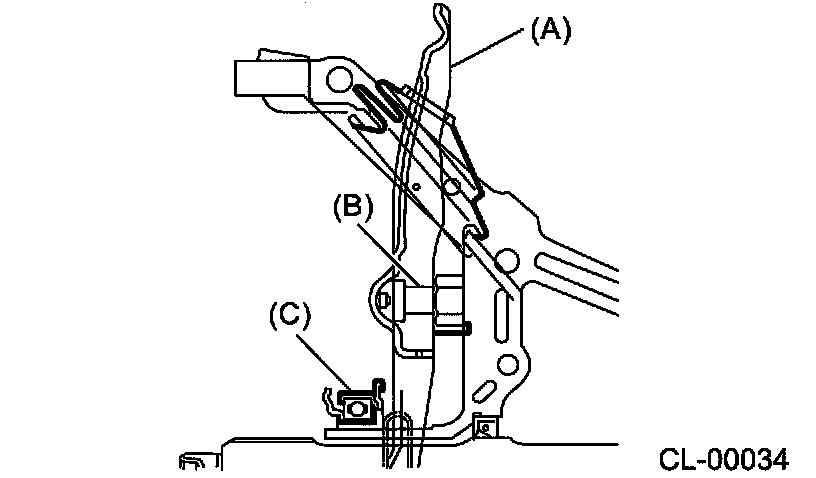

Check the lever pivot portion and the point of contact with release bearing case for wear.
(A) Clutch release lever
(B) Pivot
(C) Clutch release bearing
RELEASE LEVER
Check the lever pivot portion and the point of contact with release bearing case for wear.
(A) Clutch release lever
(B) Pivot
(C) Clutch release bearing
