Clutch Release Bearing: Testing and Inspection

INSPECTION
RELEASE BEARING

Note: Since this bearing is grease sealed and is of a nonlubrication type, do not wash with gasoline or any solvent when servicing the clutch.

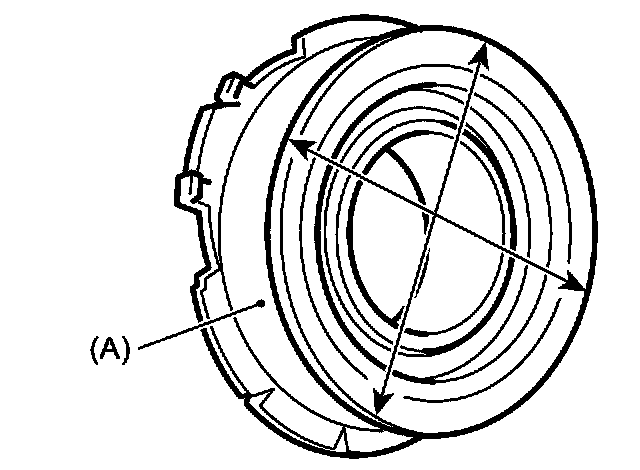

Check the bearing for smooth movement by applying force in the radial direction.
Radial direction stroke: 1.4 mm (0.055 inch)





(A) Bearing case

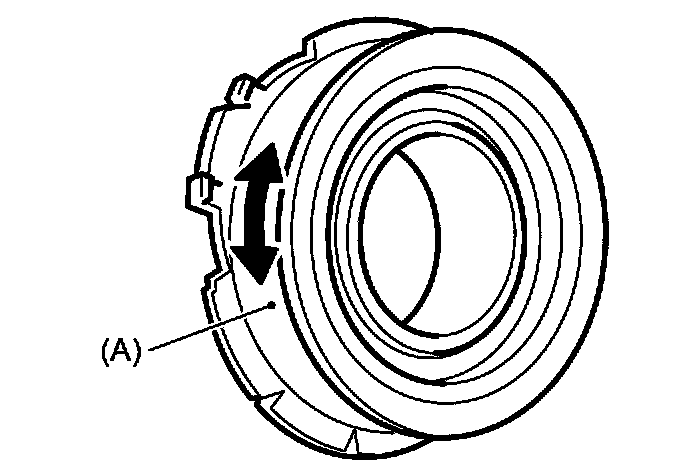

Check the bearing for smooth rotation by applying pressure in the thrust direction.





(A) Bearing case

Check wear and damage of the bearing case surface contacting with lever.
