Clutch Pedal Assembly: Description and Operation

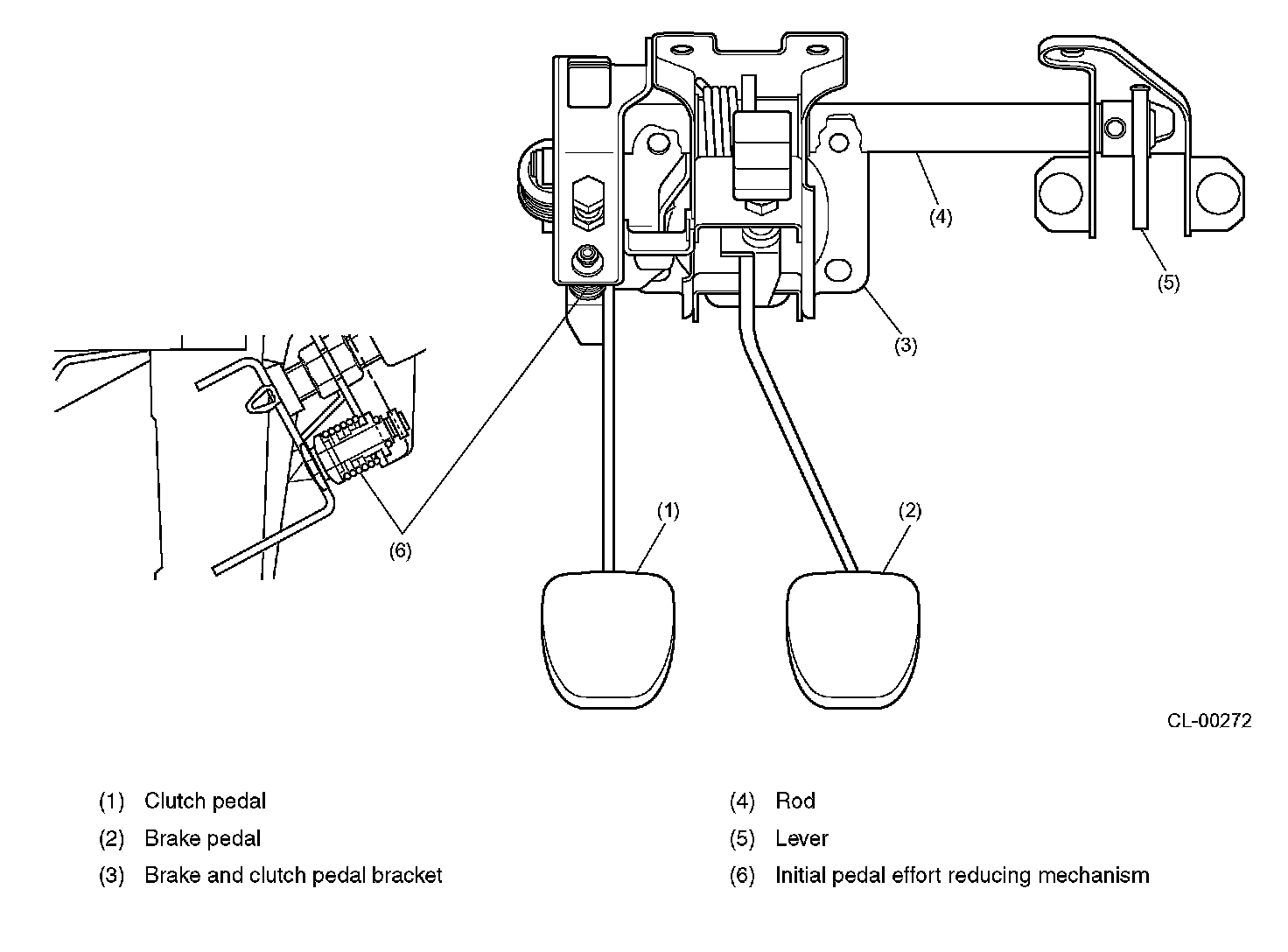

CONSTRUCTION




^ The hydraulic clutch pedal is connected to the master cylinder via a rod.
^ The clutch pedal and brake pedal are mounted on the same bracket.
^ The clutch pedal has a mechanism that reduces (assists) the force required to depress the clutch pedal and reduce the initial pedal depressing force.
^ A starter interlock mechanism is provided to prevent the engine from starting unless the clutch pedal is pressed.
