Read Diagnostic Trouble Code

READ DIAGNOSTIC TROUBLE CODE
Prepare the Vehicle Diagnostic Interface kit.
Connect the diagnosis cable to Vehicle Diagnostic Interface.
Connect the Vehicle Diagnostic Interface to data link connector.

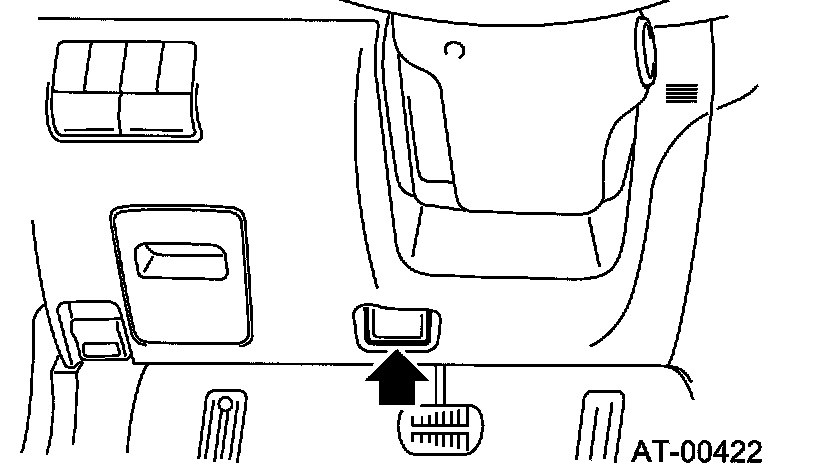

Data link connector located in the lower portion of instrument panel (on driver's side).

Connect the diagnosis cable to data link connector.

Note: Do not connect scan tools except for Vehicle Diagnostic Interface.

Turn the ignition switch to ON (engine OFF), and start the Vehicle Diagnostic Interface.
On the <

> display screen, select the {Each System Check}.
On the <> display screen, select the {Transmission Control System}.
Select the {OK} after the information of transmission type is displayed.
On the <> display screen, select the {Diagnostic Code(s) Display}.

Note:
^ For detailed operation procedure, refer to the Vehicle Diagnostic Interface OPERATION MANUAL.
^ For details concerning the DTC, refer to the DTC LIST. Transmission Codes
