Read Current Data

READ CURRENT DATA
On the <
> display screen, select the {Each System Check}.
On the <> display screen, select the {Transmission Control System}.
Select the {OK} after the information of transmission type is displayed.
On the <> display screen, select the {Current Data Display & Save}.
On the <> display screen, select the {Data Display}.
Using the scroll key, move the display screen up or down until desired data is shown.

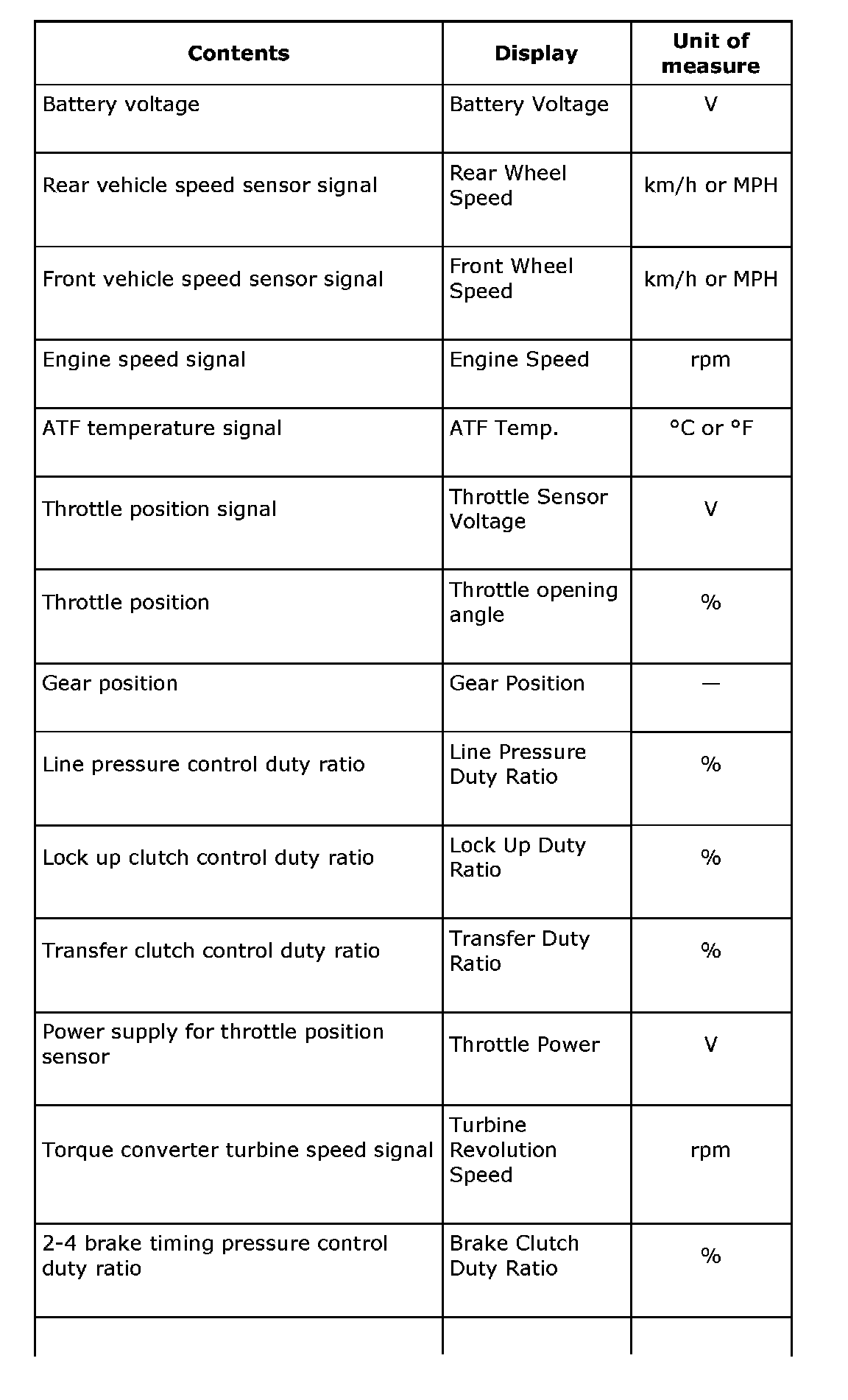

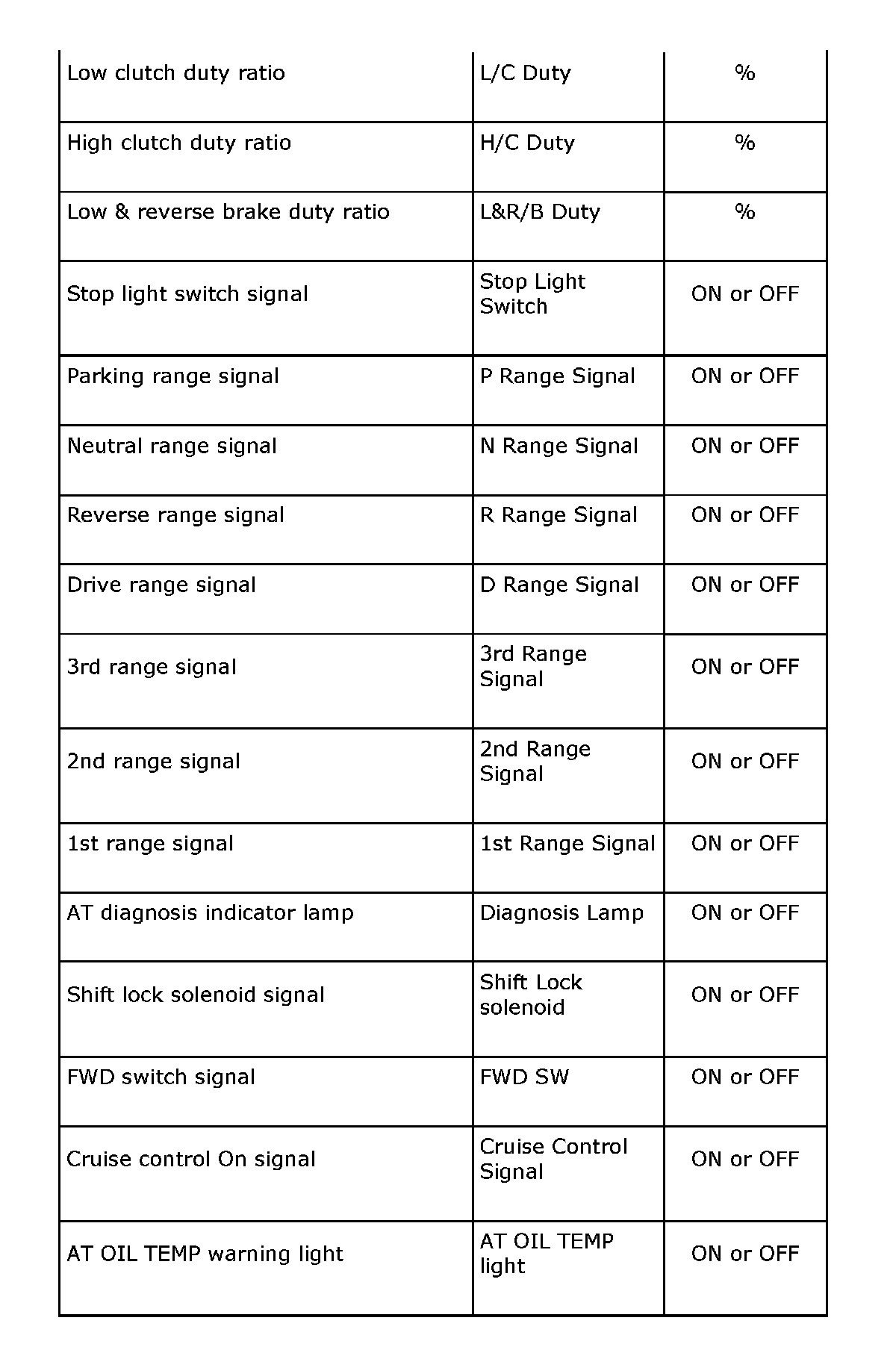

^ A list of the support data is shown in the following table.

Note: For detailed operation procedure, refer to the

Vehicle Diagnostic Interface OPERATION MANUAL.
