Pinout Values and Diagnostic Parameters

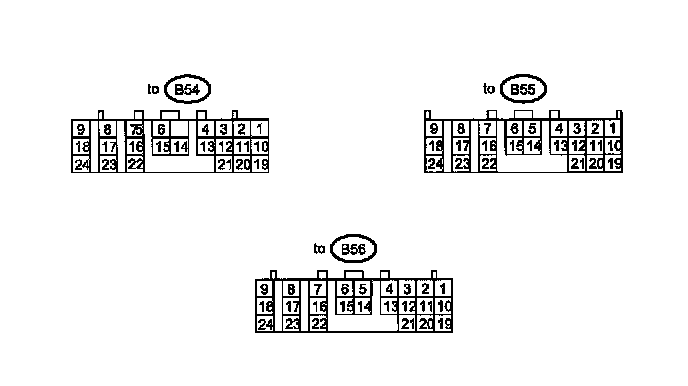

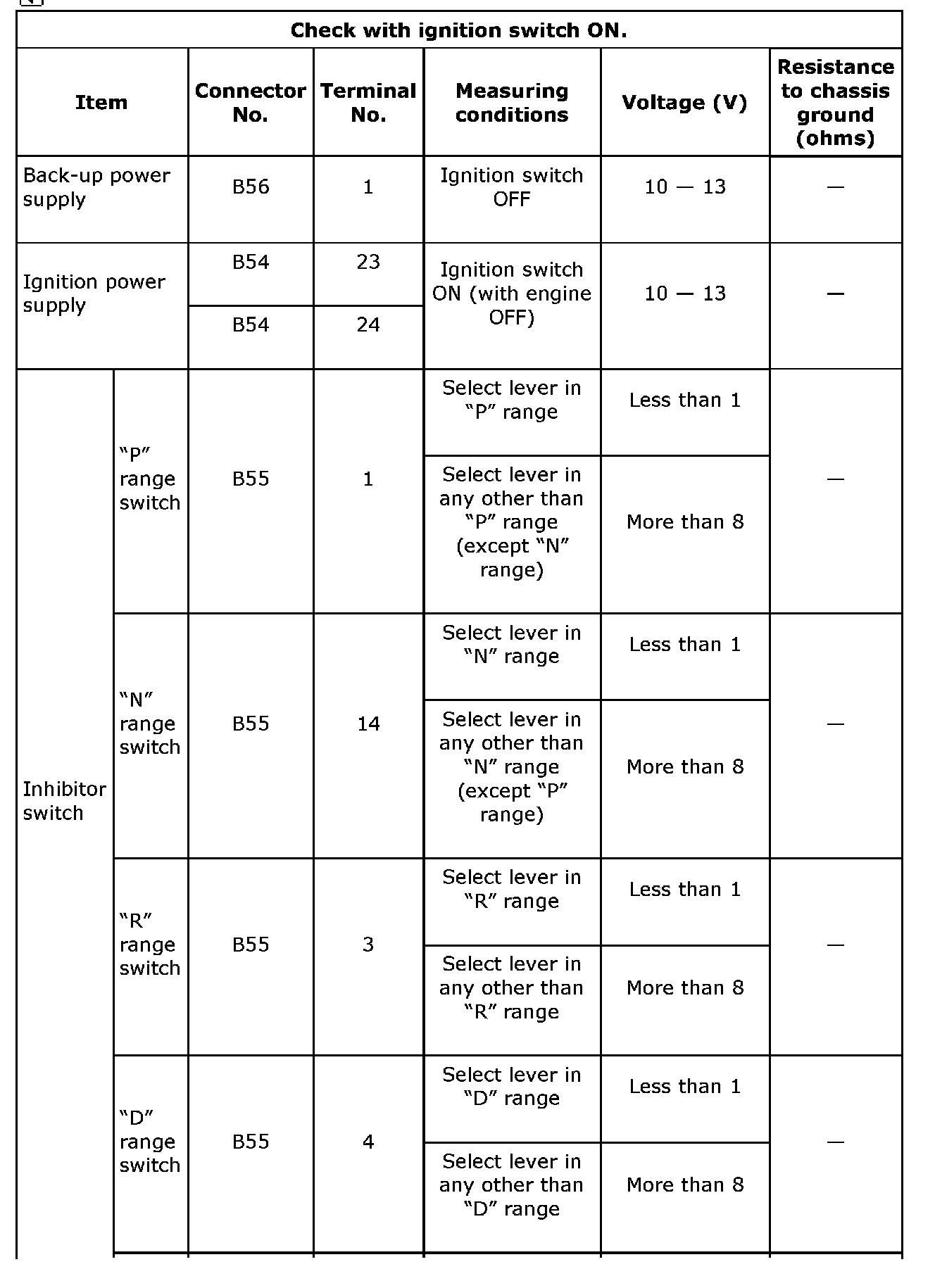

Transmission Control Module (TCM) 1/0 SignalElectrical Specification (Part 1):

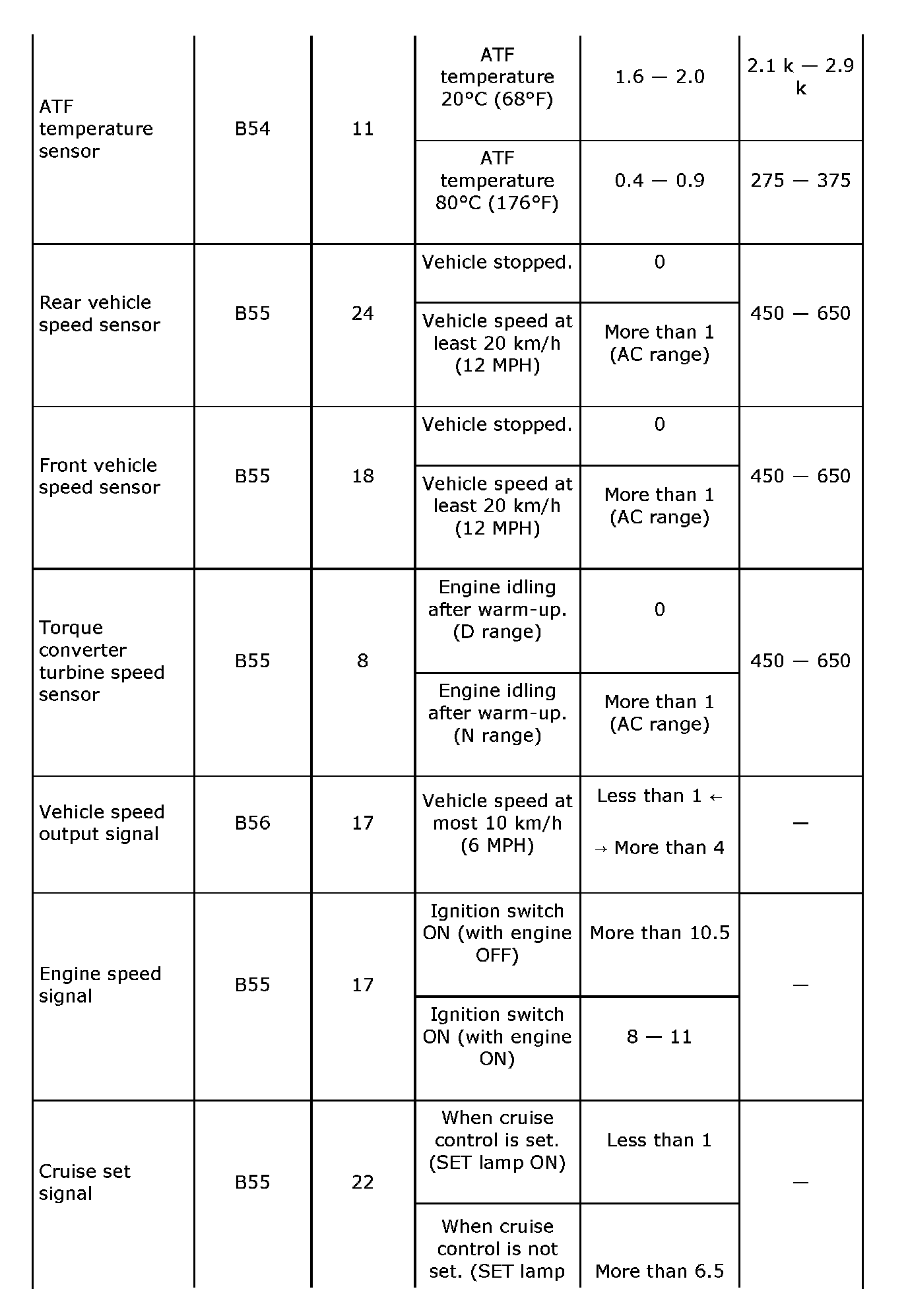

Electrical Specification (Part 2):

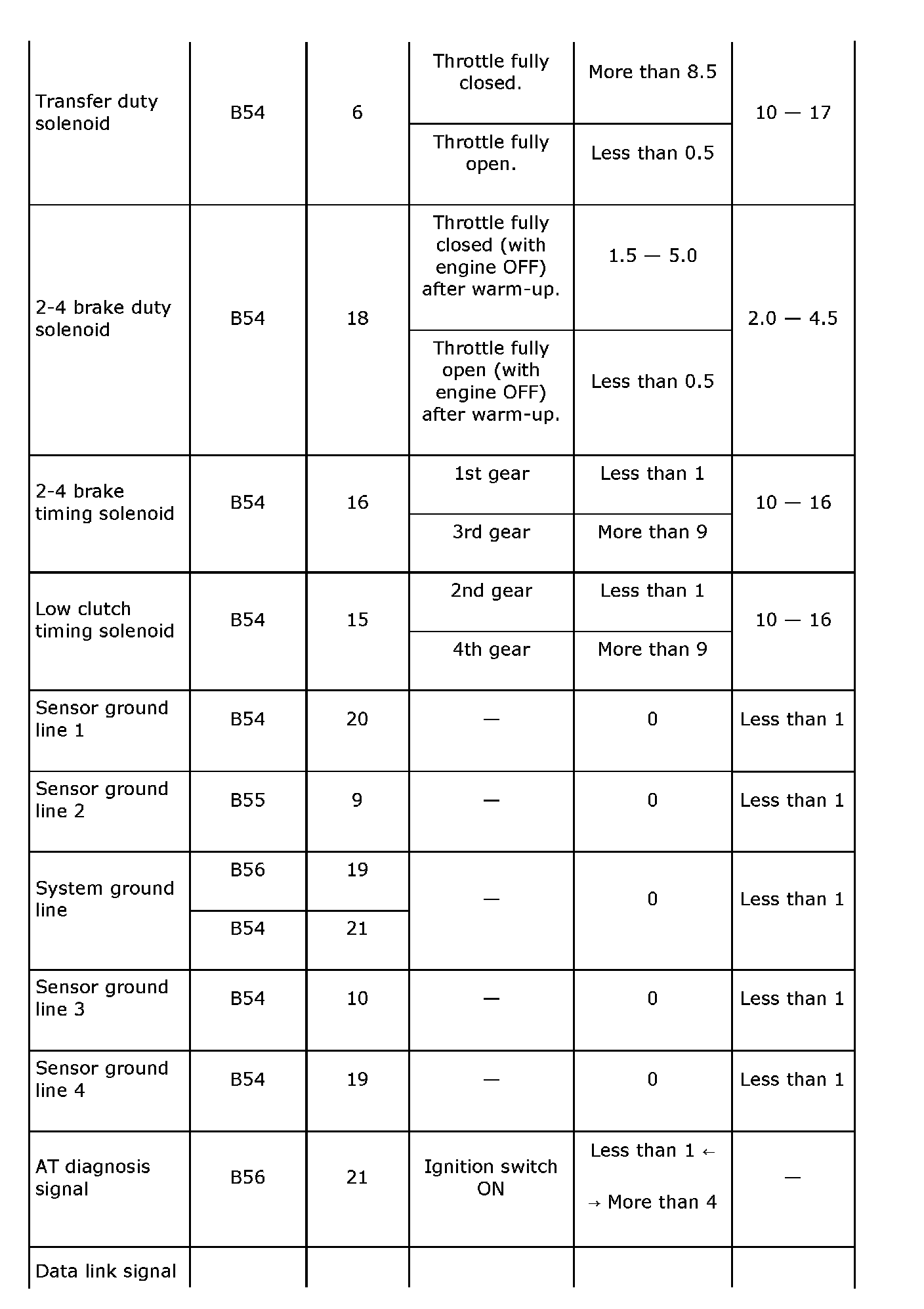

Electrical Specification (Part 3):
Electrical Specification (Part 4):
Electrical Specification (Part 5):
Electrical Specification (Part 5):

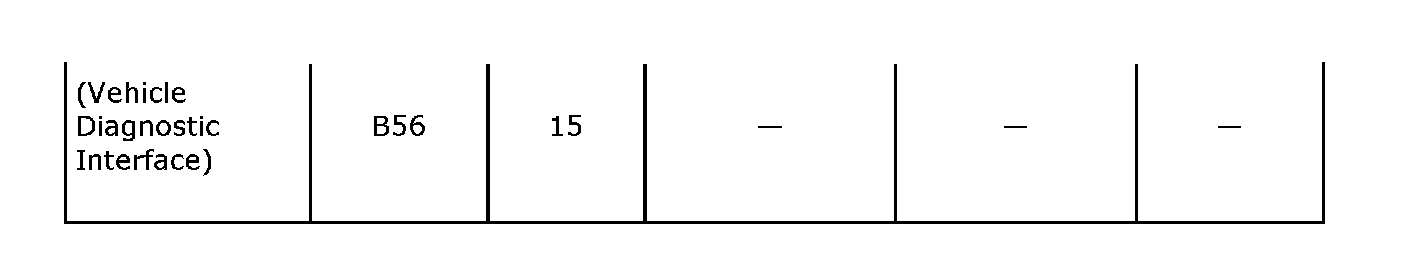

Electrical Specification (Part 6):
ELECTRICAL SPECIFICATION
