Operation Read Diagnostic Trouble Code (DTC)
Vehicle Diagnostic InterfaceOPERATION READ DIAGNOSTIC TROUBLE CODE (DTC)
Prepare the Vehicle Diagnostic Interface kit.
Connect the diagnosis cable to Vehicle Diagnostic Interface.
Connect the Vehicle Diagnostic Interface to data link connector.
Data link connector located in the lower portion of instrument panel (on drivers side).
Connect the diagnosis cable to data link connector.
Note: Do not connect scan tools except for Vehicle Diagnostic Interface and OBD-II general scan tool.
Turn the ignition switch to ON (engine OFF), and start the Vehicle Diagnostic Interface.
On the <
On the <
Select the {OK} after the information of transmission type is displayed.
On the <
On the <
Note:
^ For detailed operation procedure, refer to the Vehicle Diagnostic Interface OPERATION MANUAL.
^ For details concerning the DTC, refer to the List of Diagnostic Trouble Code (DTC).
READ CURRENT DATA
On the <
On the <
Select the {OK} after the information of transmission type is displayed.
On the <
On the <> display screen, select the {Data Display}
Using the scroll key, move the display screen up or down until desired data is shown.

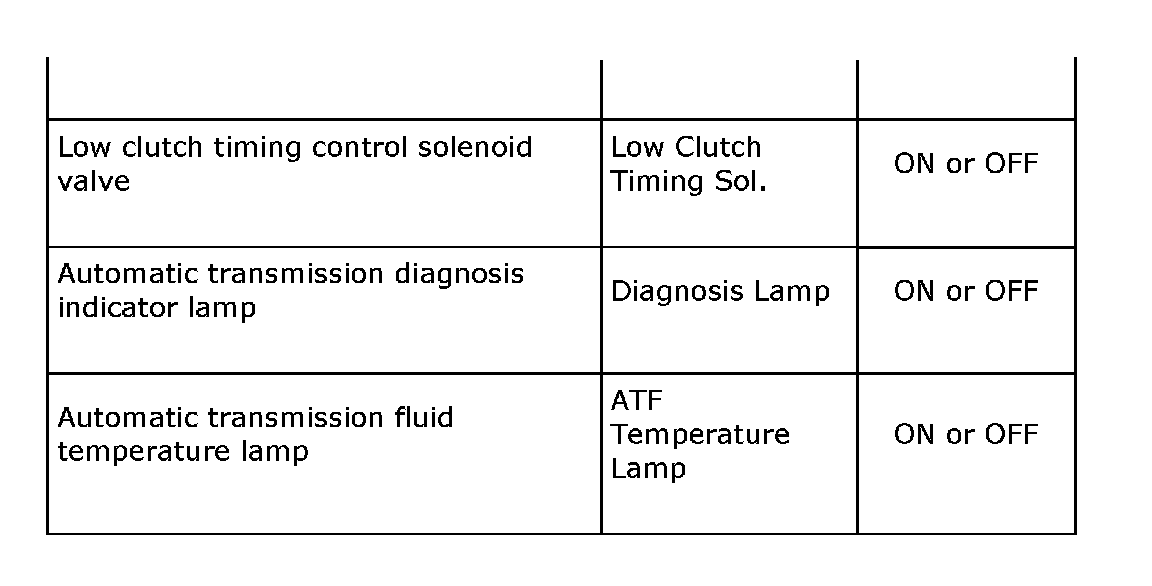

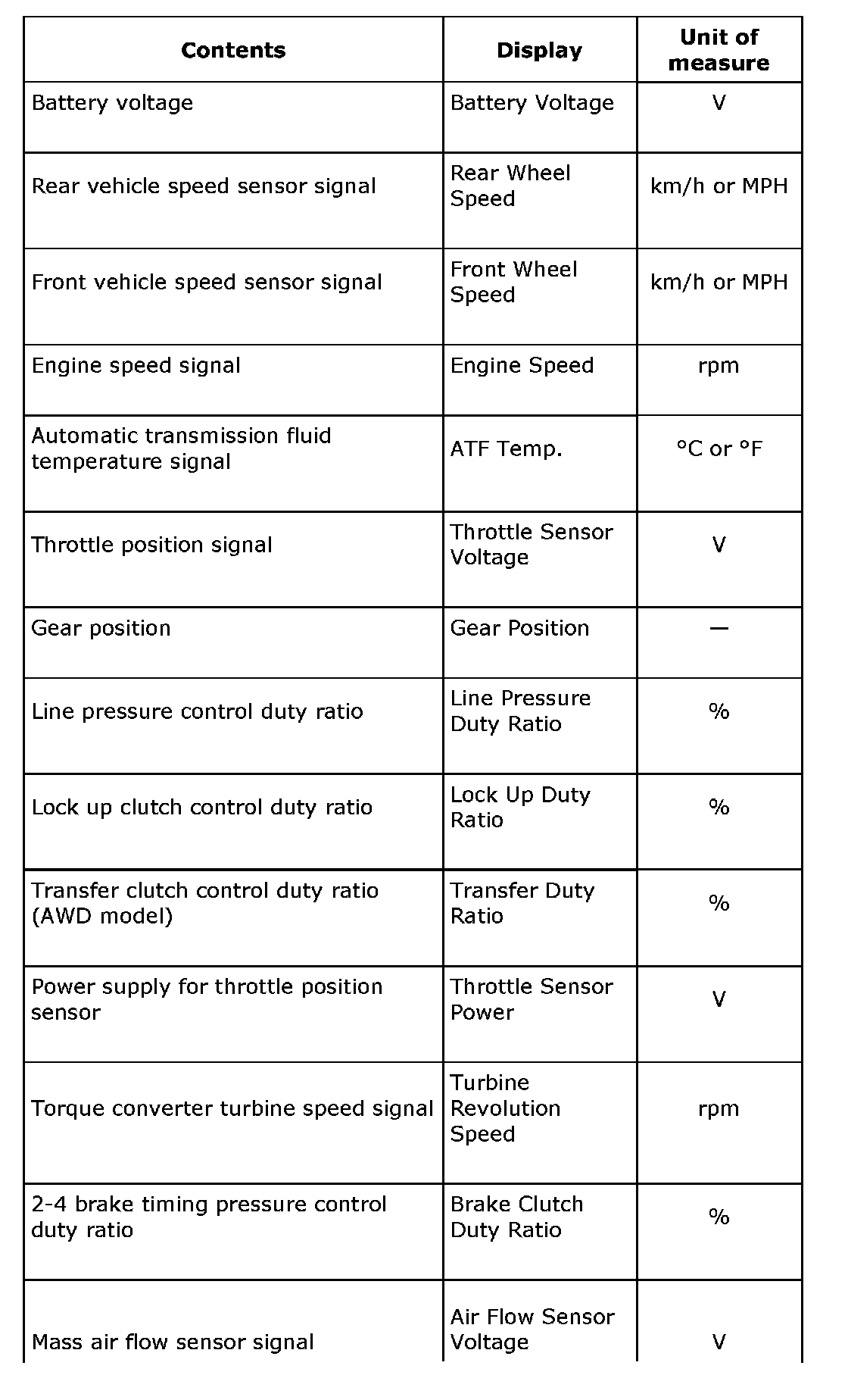

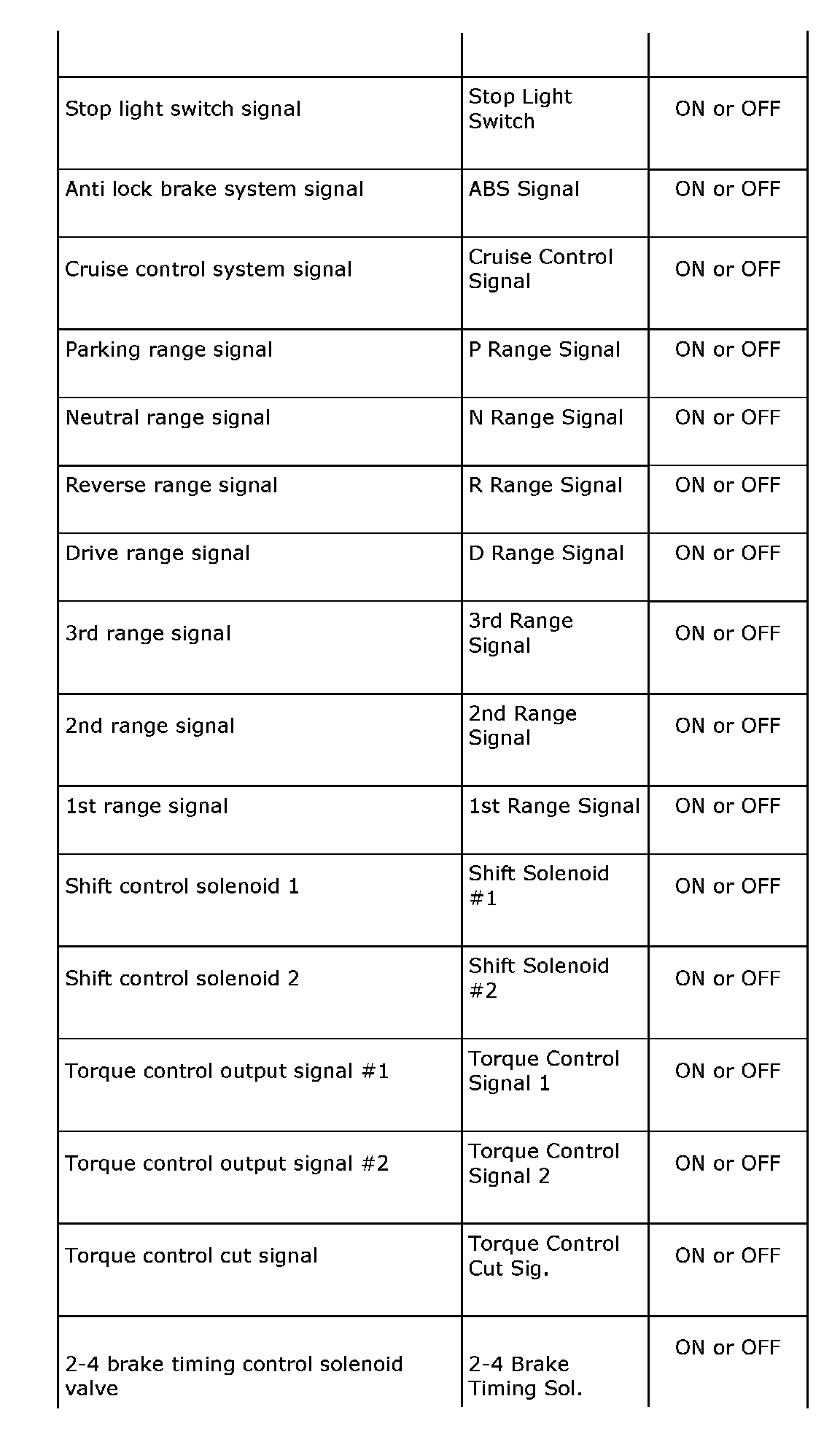

^ A list of the support data is shown in the following table.
Note: For detailed operation procedure, refer to the Vehicle Diagnostic Interface OPERATION MANUAL.
