Preliminary Inspection

INSPECTION
BATTERY
Measure the battery voltage and specific gravity of electrolyte.
Standard voltage: 12 Volts or more
Specific gravity: Above 1.260

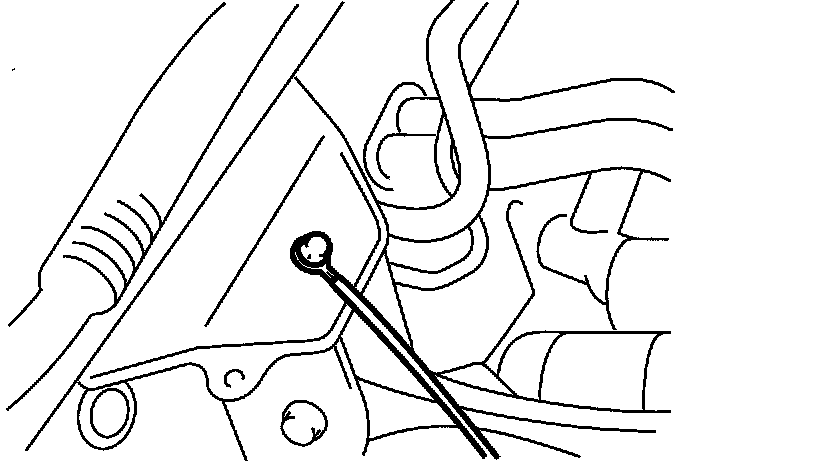

TRANSMISSION GROUND





Make sure that the ground terminal bolt is tightened securely.
^ Chassis side
Tightening torque: 13 Nm (1.3 kgf-m, 9.4 ft. lbs.)

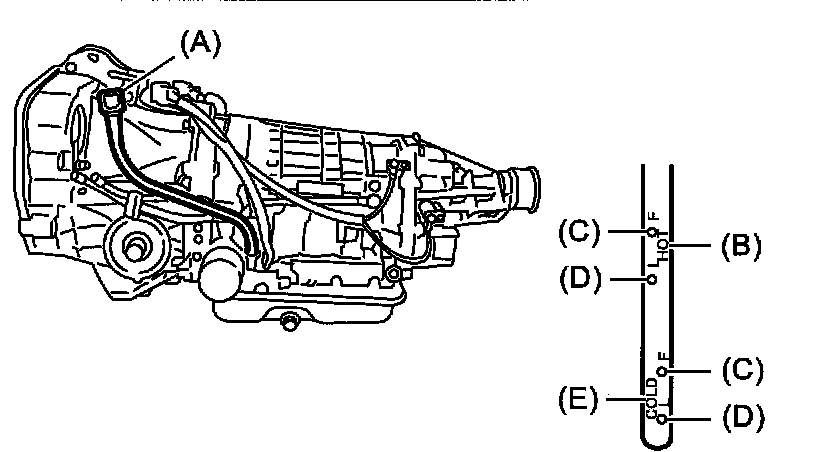

ATF LEVEL
Make sure that ATF level is within the specification.





(A) Level gauge
(B) HOT side
(C) Upper level
(D) Lower level
(E) "COLD" side

FRONT DIFFERENTIAL OIL LEVEL
Make sure that front differential oil level is within the specification.





(A) Upper level
(B) Lower level

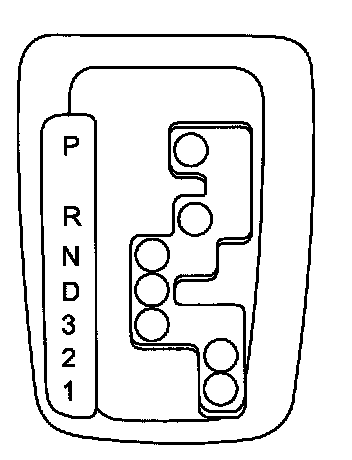

OPERATION OF SELECT LEVER
Make sure there is no abnormal noise, dragging or contact pattern in each select lever range.

Warning: Stop the engine while checking operation of select lever.
