Transmission Control Device

Transmission Control Device
REMOVAL
Remove the transmission assembly from the vehicle.
Extract the torque converter clutch assembly.
Remove the input shaft.
Lift-up lever behind the transmission harness connector and disconnect it from stay.
Disconnect the air breather hoses.
Disconnect inhibitor switch connector from stay.
Wrap vinyl tape around the nipple attached to the air breather hose.
Remove pitching stopper bracket.

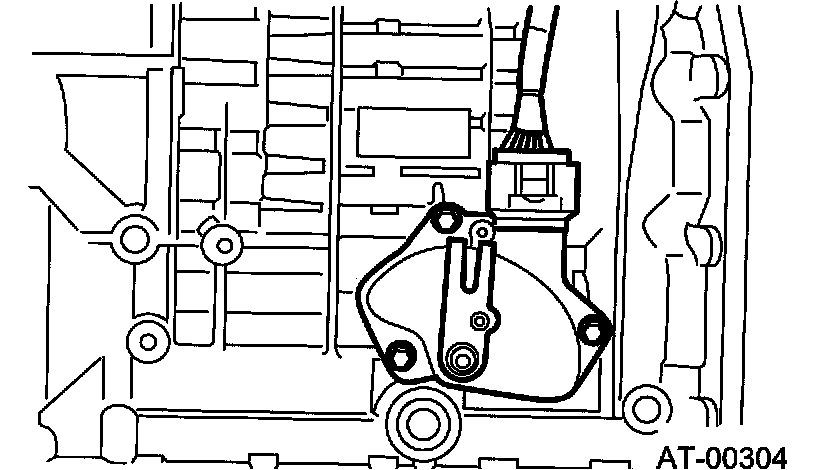

Remove the inhibitor switch.





Remove control valve body assembly.

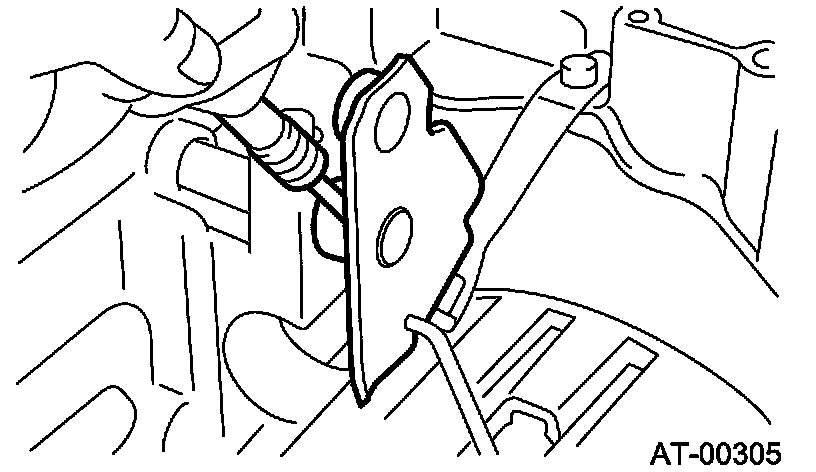

Pull off the straight pin of manual plate.

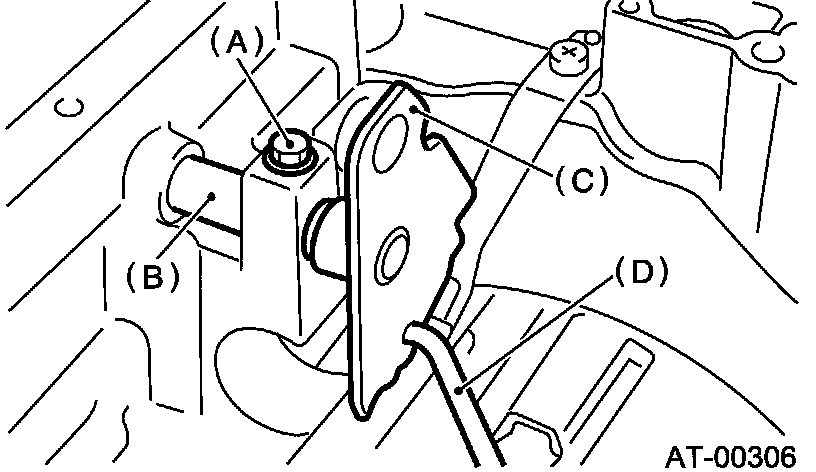

Remove bolts securing select lever, then remove select lever, manual plate and parking rod.

Note: Be careful not to damage the lips of the press-fitted oil seal in the case.





(A) Bolt
(B) Range select lever
(C) Manual plate
(D) Parking rod

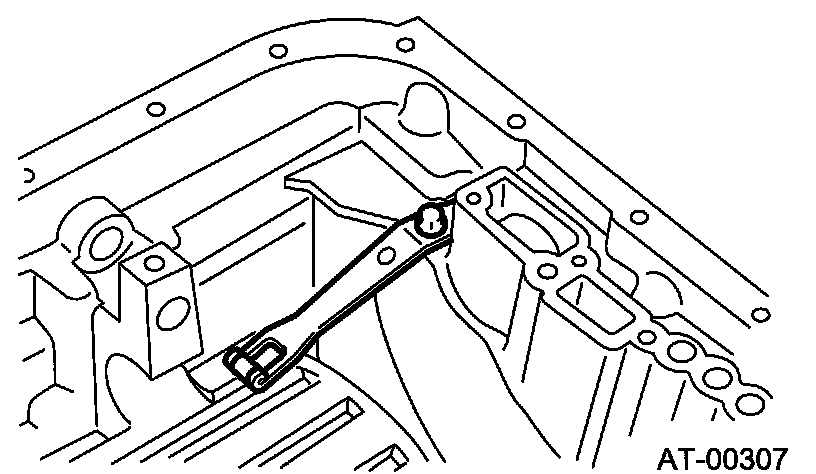

Remove the detention spring.

INSTALLATION
Install detention spring to transmission case.
Tightening torque: 6 Nm (0.6 kgf-m, 4.3 ft. lbs.)

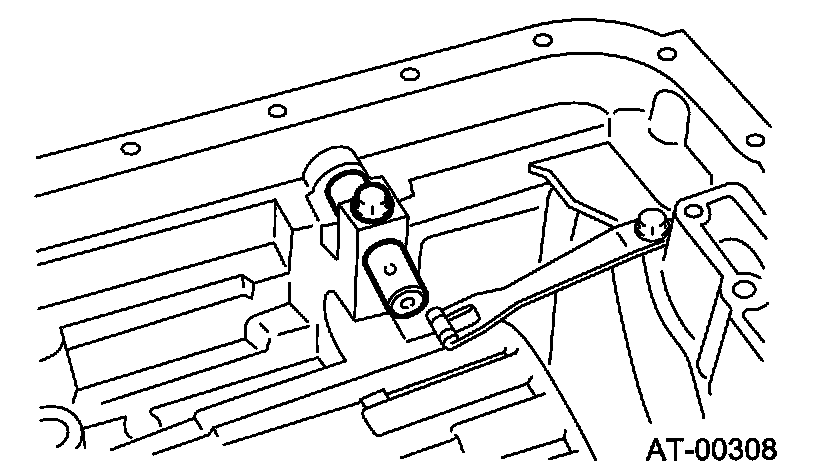

Insert range select lever, and tighten bolt.
Tightening torque: 6 Nm (0.6 kgf-m, 4.3 ft. lbs.)

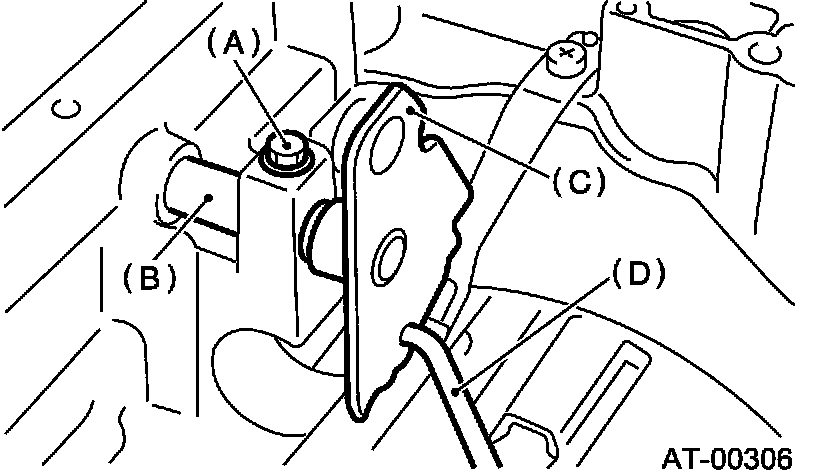

Install the manual plate and parking rod.





(A) Bolt
(B) Range select lever
(C) Manual plate
(D) Parking rod

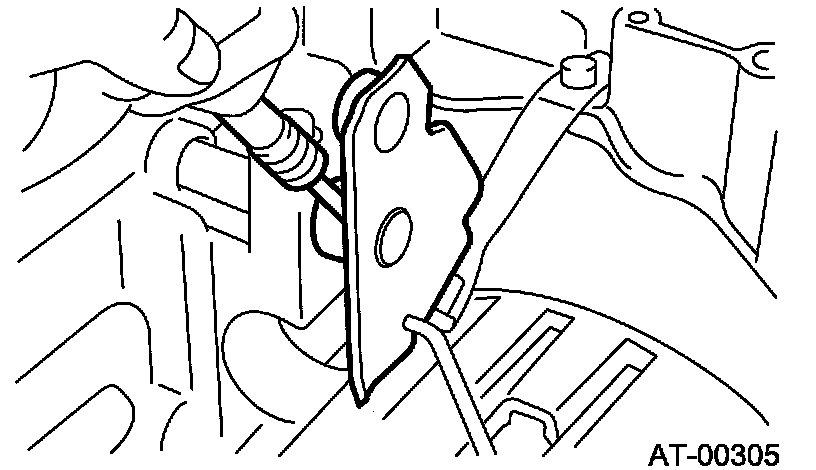

Insert spring pin to manual plate.





Install control valve assembly and oil pan.
Turn over the transmission case to its original position.
Install pitching stopper bracket.
Tightening torque: 41 Nm (4.2 kgf-m, 30.4 ft. lbs.)
Install inhibitor switch and adjust the inhibitor switch.

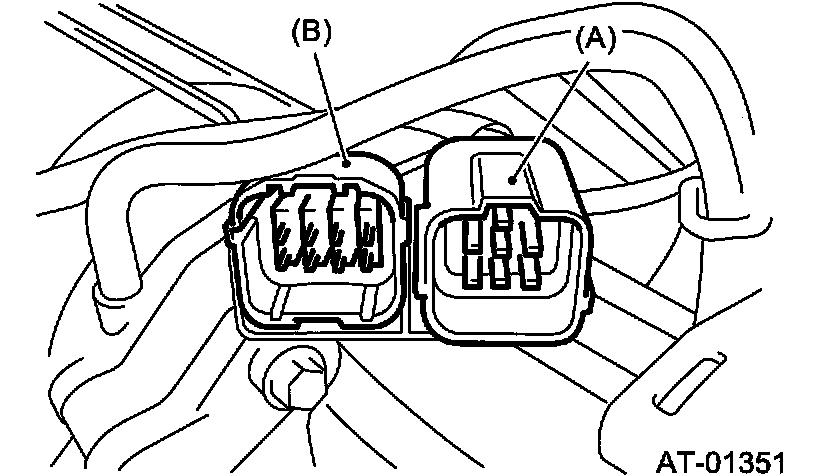

Insert inhibitor switch and transmission connector into stay.





(A) Transmission harness
(B) Inhibitor switch harness
Install air breather hose.

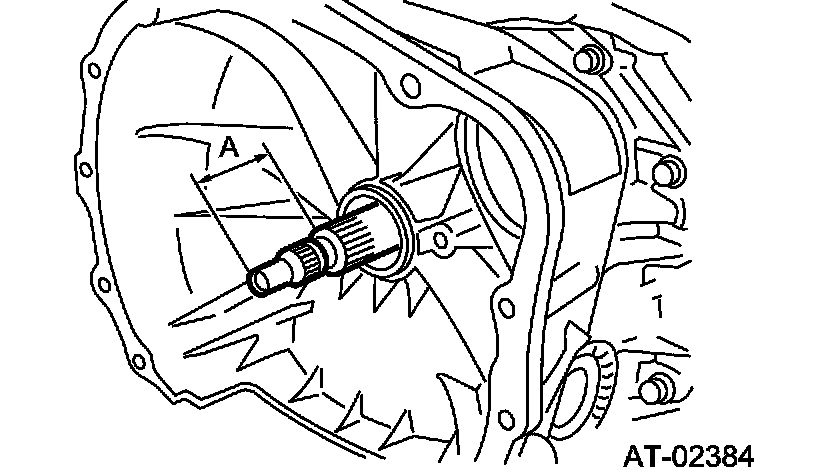

Insert the input shaft while turning lightly by hand and verify the protrusion amount.
Normal protrusion A: 50 - 55 mm (1.97 - 2.17 inch)





Install the torque converter clutch assembly.
Install the transmission assembly to the vehicle.

INSPECTION
Make sure the manual lever and detention spring are not worn or otherwise damaged.
