Reduction Driven Gear

Reduction Driven Gear
REMOVAL
MPT MODEL
Remove the transmission assembly from the vehicle.
Remove rear vehicle speed sensor, and separate the transmission case and extension case.
Set the range select lever to "P".

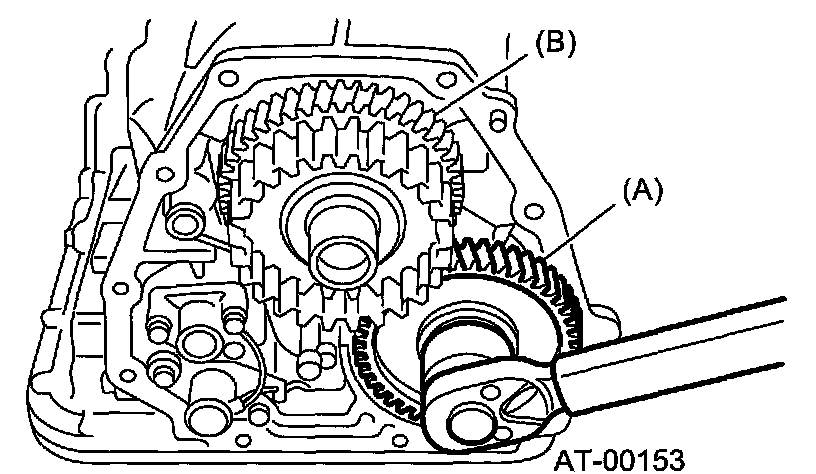

Straighten the staked portion, and remove the lock nut.





(A) Reduction driven gear
(B) Reduction drive gear

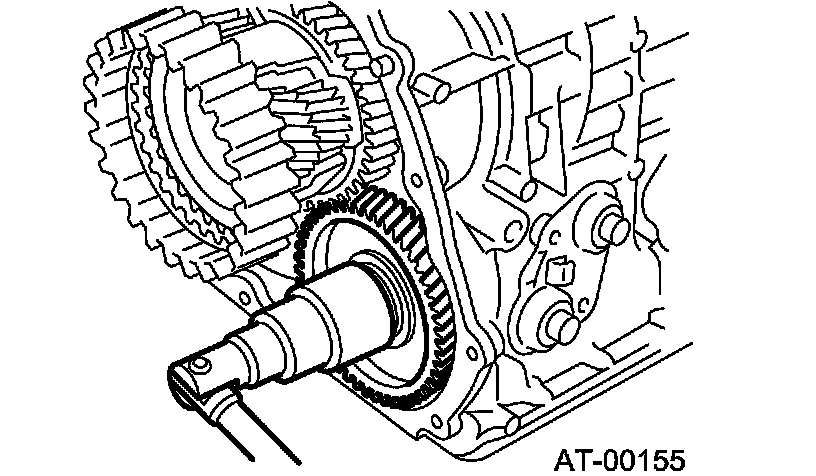

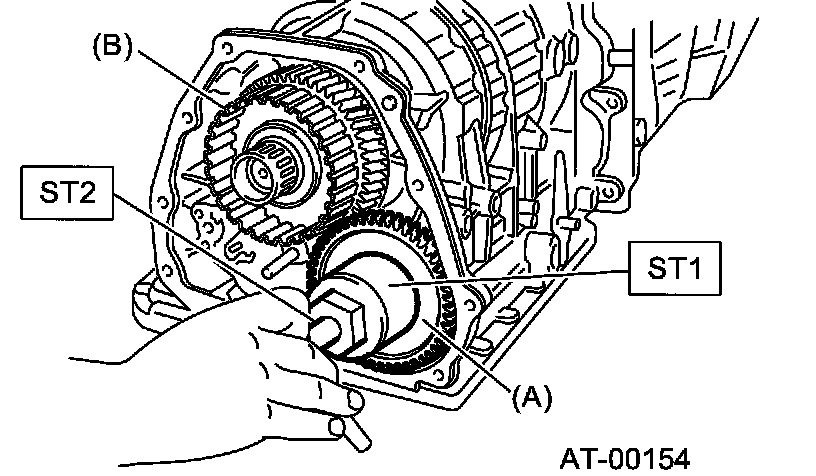

Using the ST1 and ST2, extract the reduction driven gear.
ST1 32005144 PULLER
ST2 32005174 PULLER SET





(A) Reduction driven gear
(B) Reduction drive gear

VTD MODEL
Remove the transmission assembly from the vehicle.
Remove rear vehicle speed sensor, and separate the transmission case and extension case.
Remove the rear drive shaft.
Set the range select lever to P.
Straighten the staked portion, and remove the lock nut.





Using the ST1 and ST2, extract the reduction driven gear.
ST1 32005144 PULLER
ST2 32005174PULLER SET
Pull out the center differential assembly.

INSTALLATION
MPT MODEL

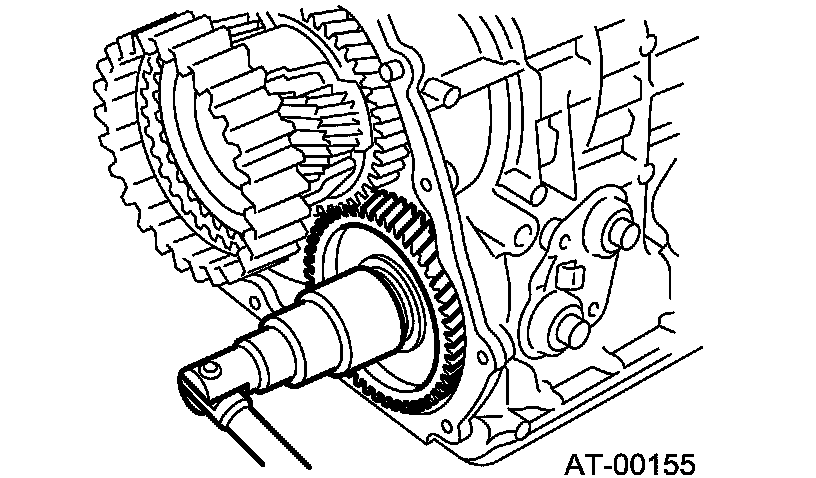

Set the select lever to "P" range.

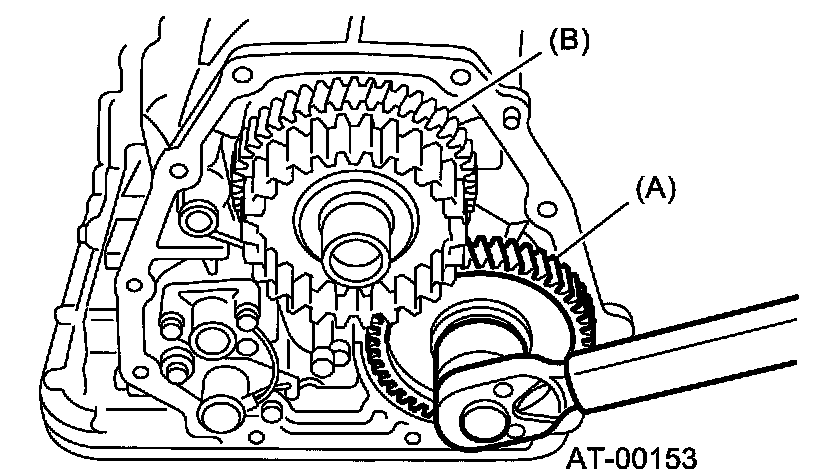

Using a plastic hammer, install reduction driven gear assembly and new washer, and tighten new drive pinion lock nut.
Tightening torque: 100 Nm (10.2 kgf-m, 73.8 ft. lbs.)





(A) Reduction driven gear
(B) Reduction drive gear
After tightening, stake the lock nut securely.
Combine the transmission case with the extension case, and install rear vehicle speed sensor.
Install the transmission assembly to vehicle.

VTD MODEL
Set the select lever to "P" range.
Using a plastic hammer, install reduction driven gear assembly.
Using a plastic hammer, install the center differential assembly.
Install a new self-lock nut and a washer.
Tightening torque: 100 Nm (10.2 kgf-m, 73.8 ft. lbs.)





After tightening, stake the lock nut securely.
Insert the rear drive shaft assembly.
Combine the transmission case with the extension case, and install rear vehicle speed sensor.
Install the transmission assembly to vehicle.

DISASSEMBLY

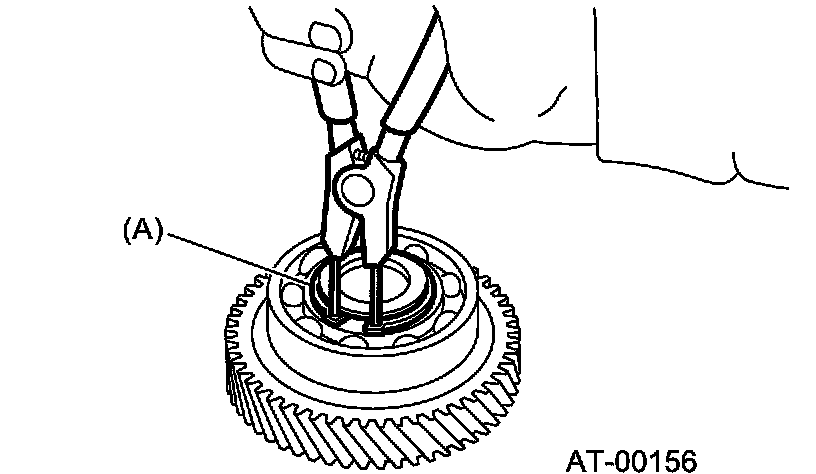

Remove snap ring from reduction driven gear.





(A) Snap ring

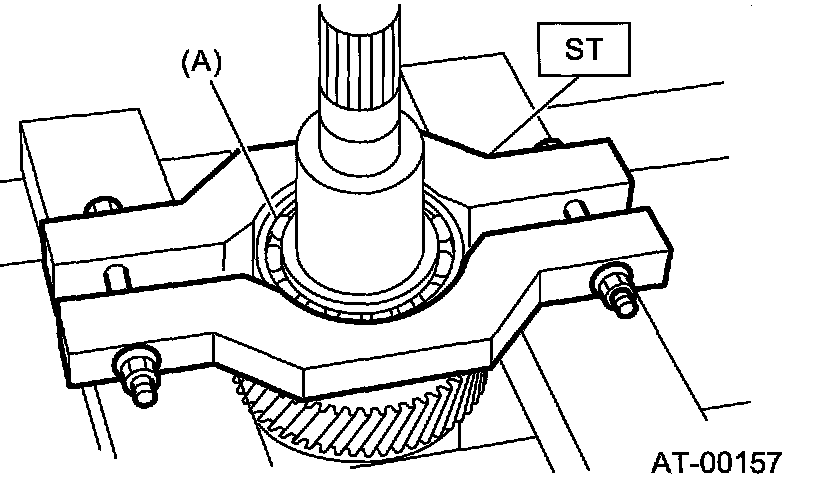

Using ST, remove ball bearing from reduction driven gear.
ST 32005091 REMOVER





(A) Ball bearing

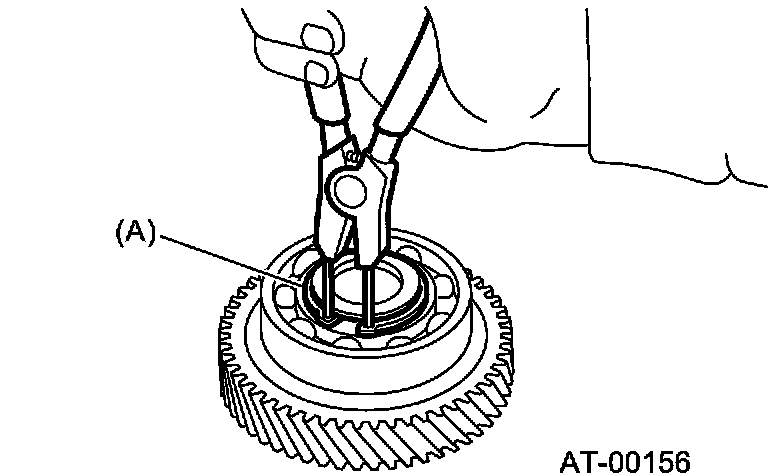

Remove snap ring reduction driven gear.

ASSEMBLY
Install snap ring to reduction driven gear.

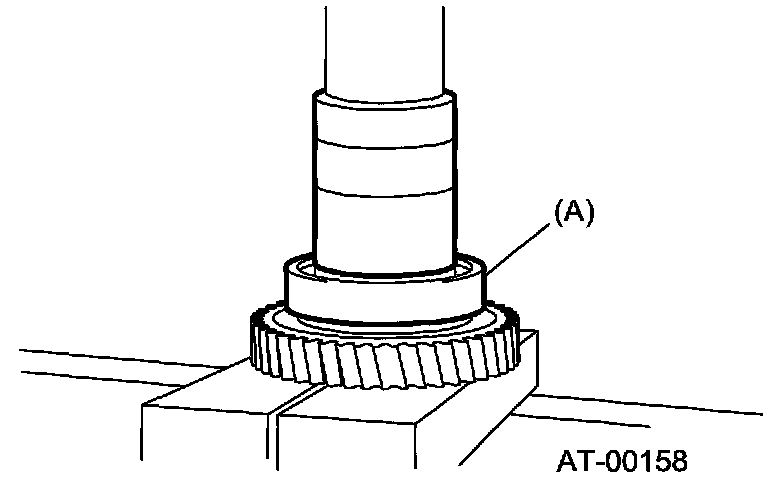

Using a press, install a new ball bearing to reduction driven gear.





(A) Ball bearing
Install snap ring to reduction driven gear.





(A) Snap ring

INSPECTION
Check ball bearing and gear for dents or damage.
