Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive/Propeller Shaft >> Propeller Shaft Dimensions

Propeller Shaft Dimensions

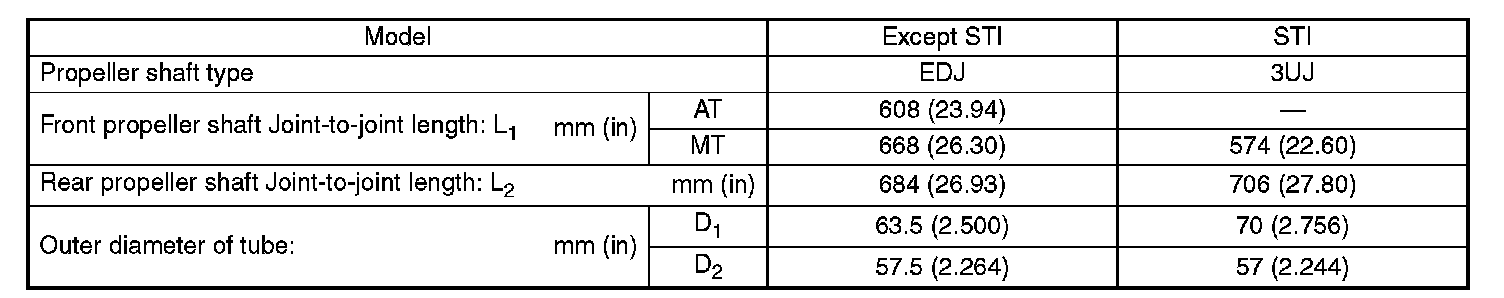

Propeller Shaft Dimensions 1:

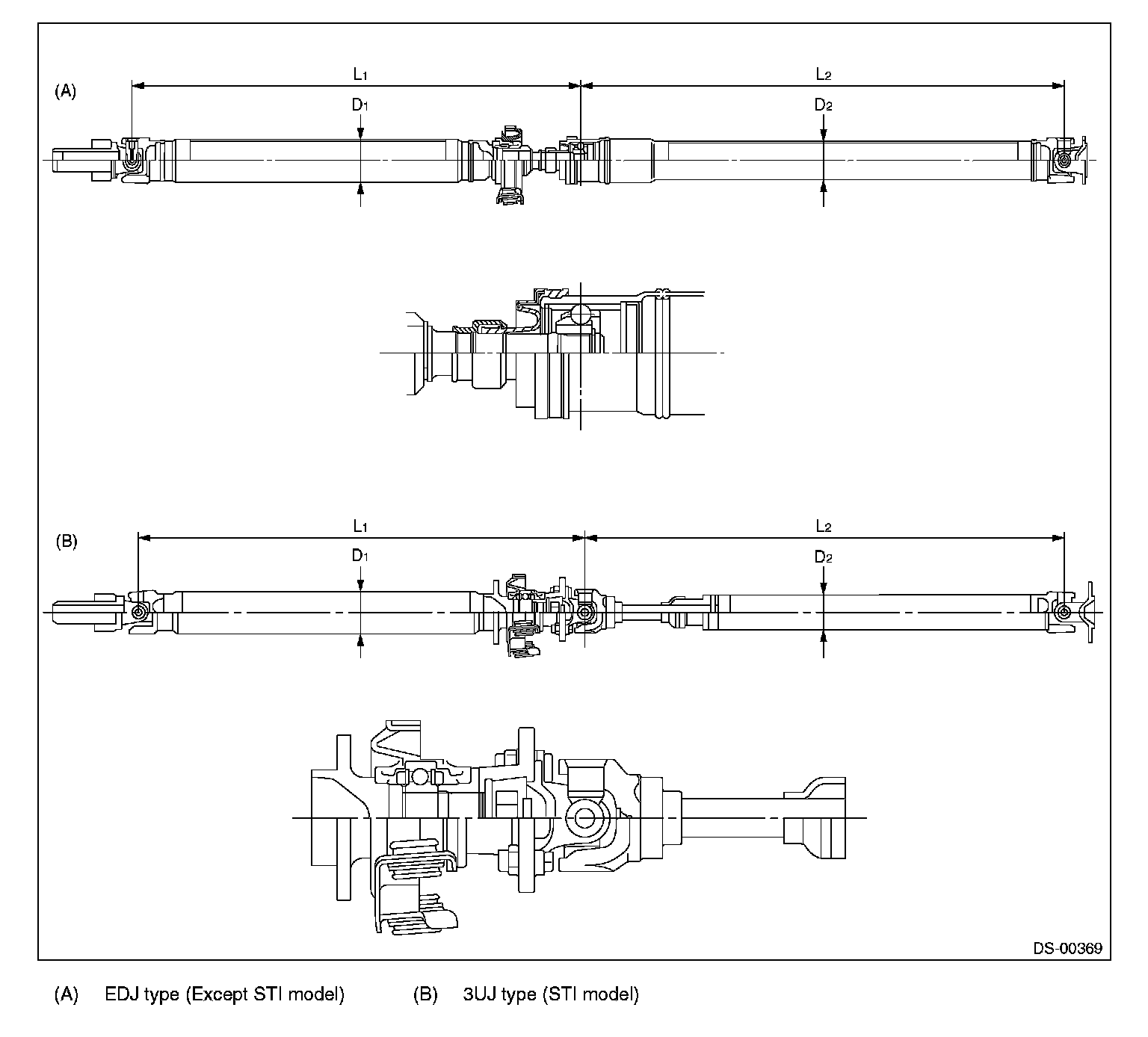

Propeller Shaft Dimensions 2:
