Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Cooling System >> System Specifications

System Specifications

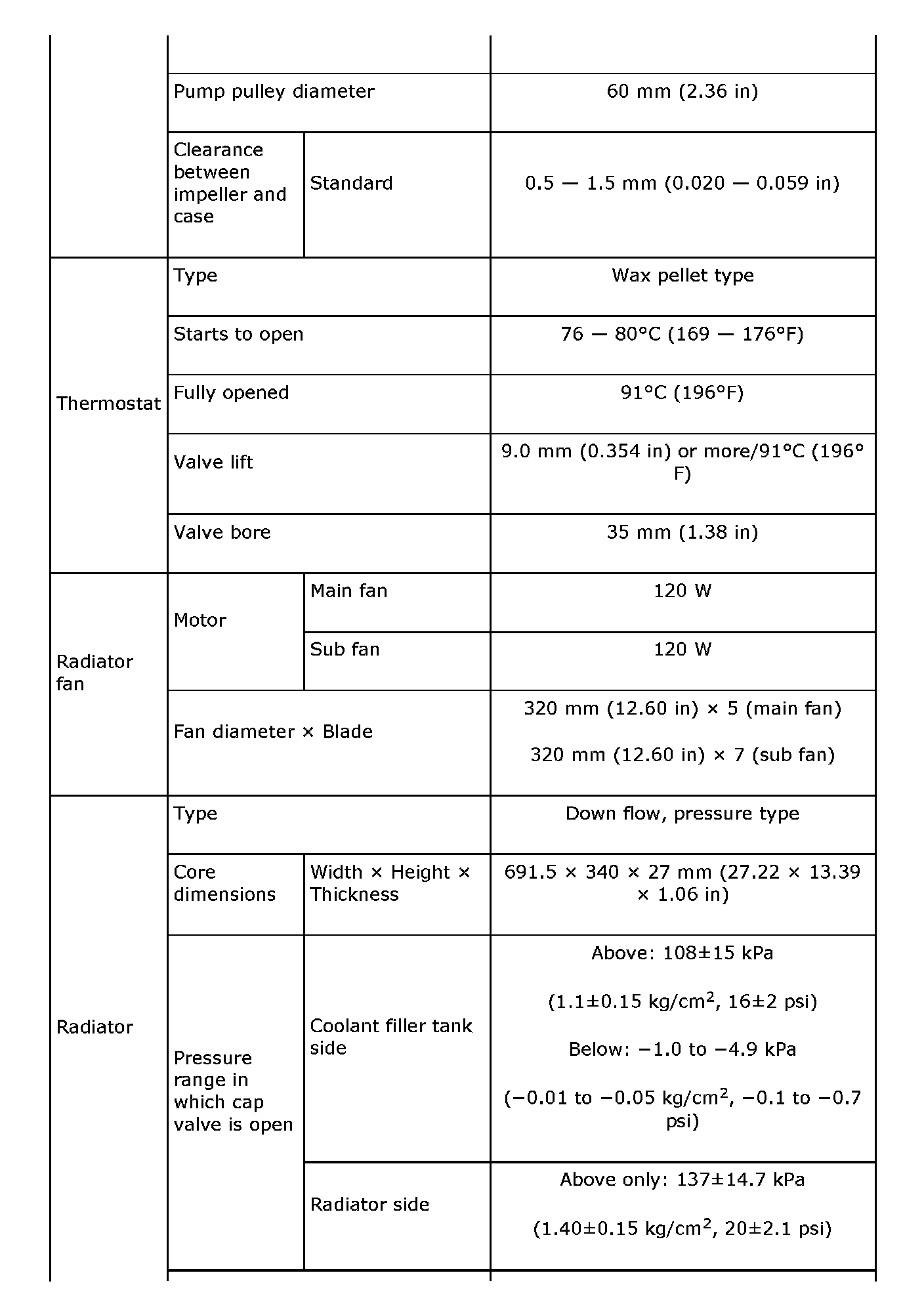

General Description Specifications (Part 1):



General Description Specifications (Part 2):

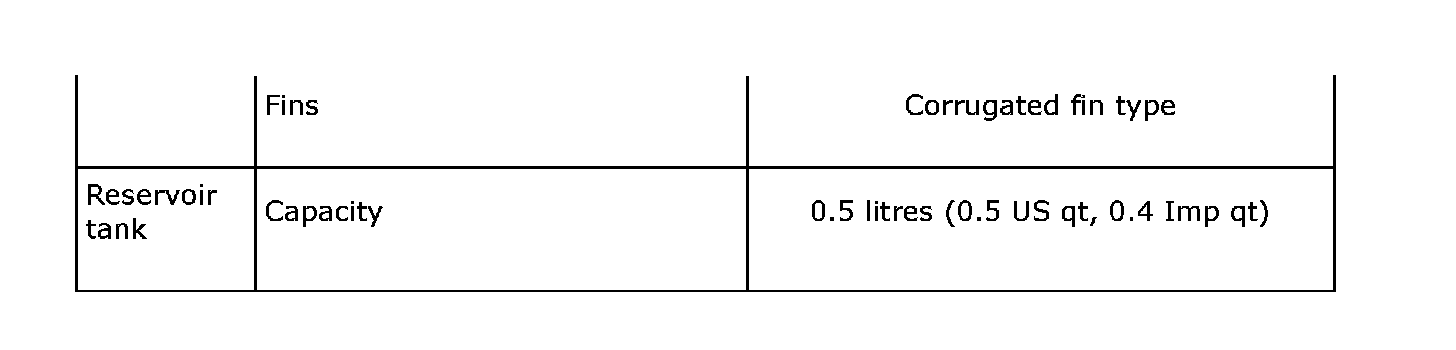

General Description Specifications (Part 3):
