Wiper Blade Heater Switch: Testing and Inspection



Wiper Deicer Switch

Inspection

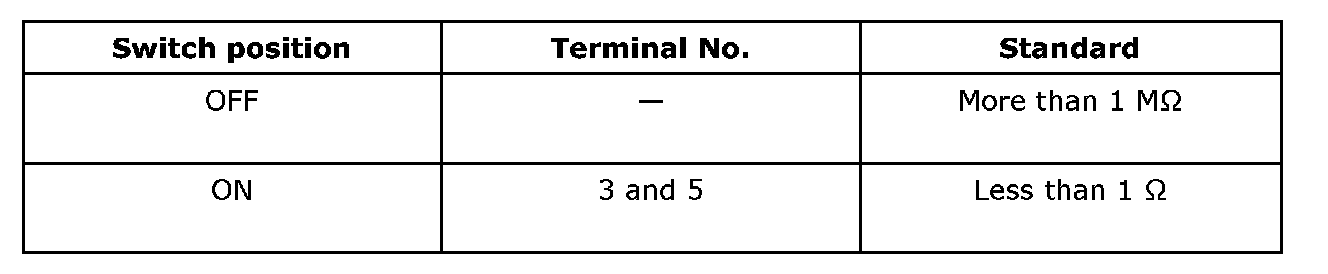

Move wiper deicer switch to each position and check continuity between terminals.







If NG, replace the switch.
