Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Heated Glass Element Switch >> Testing and Inspection

Heated Glass Element Switch: Testing and Inspection



INSPECTION

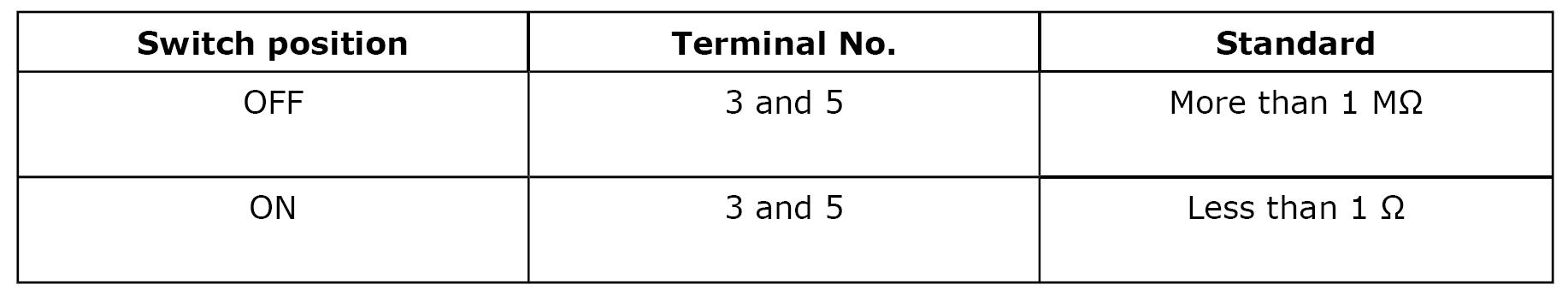

Move wiper deicer switch to each position and check continuity between terminals.










If NG, replace the switch.
