Transfer Duty Solenoid and Valve Body
Transfer Duty Solenoid And Valve BodyREMOVAL
Set the vehicle on a lift.
Disconnect the ground cable from battery.
Remove intercooler.

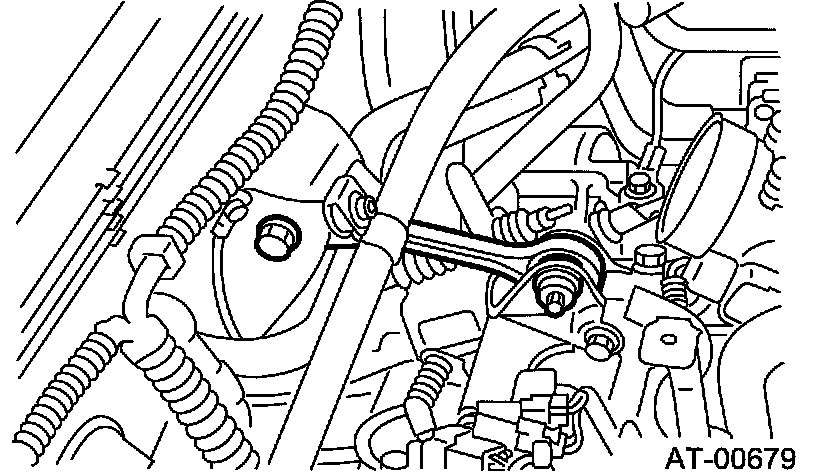

Remove the pitching stopper.
Remove center exhaust pipe.
Remove the rear exhaust pipe and muffler.

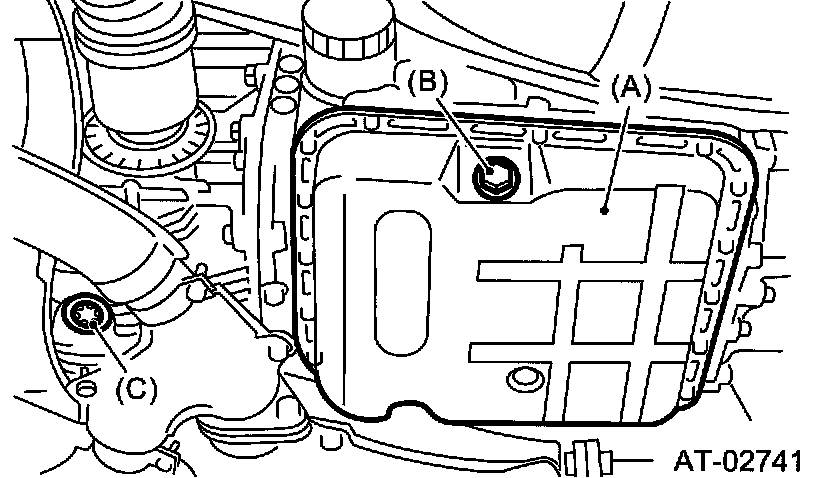

Raise the vehicle and drain the ATF.
(A) Oil pan
(B) Drain plug (ATF)
(C) Differential gear oil drain plug
Remove the heat shield cover. (If equipped)
Remove the propeller shaft.

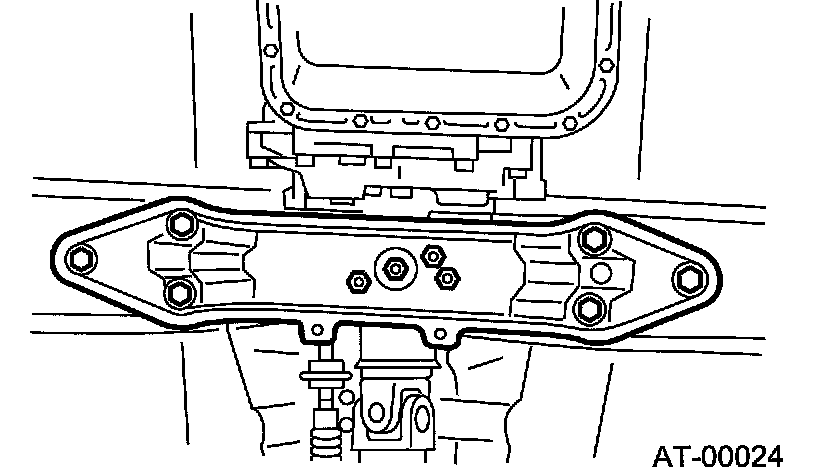

Remove the transmission rear crossmember.

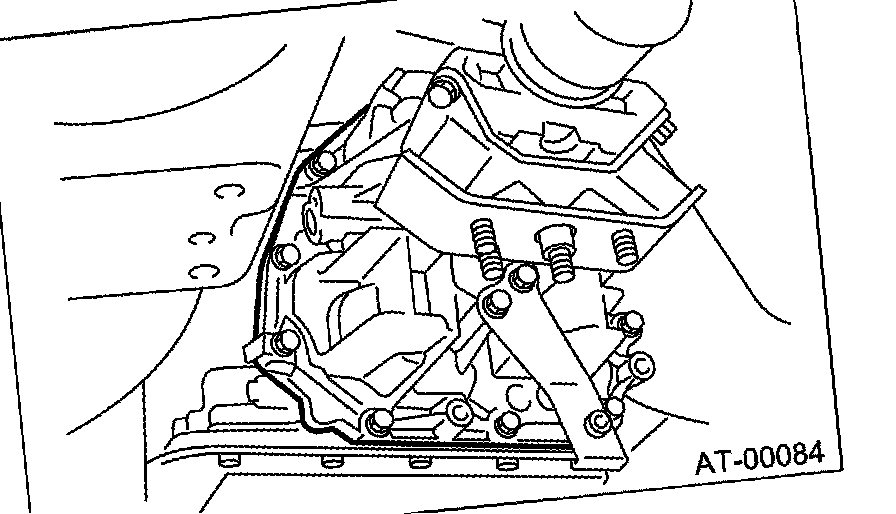

Support the transmission using a transmission jack and raise slightly.
Remove the bolts and nuts as shown in the figure.

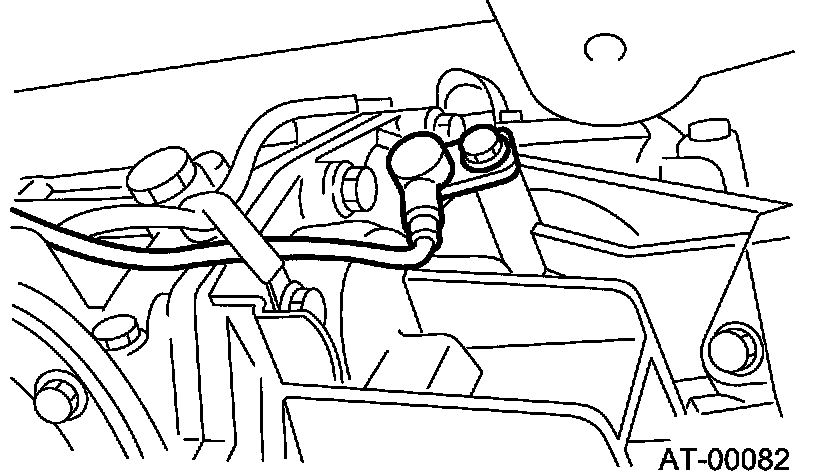

Remove the rear vehicle speed sensor.

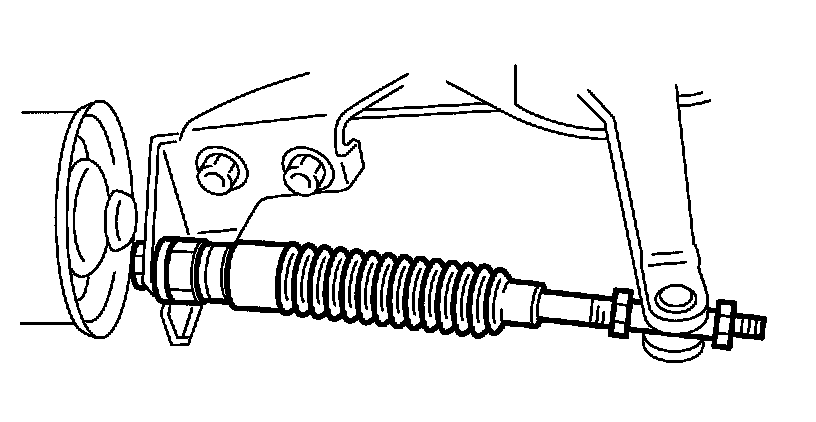

Remove the select cable nut.
Move the gear select cable so that extension bolts can be removed.
Remove the bolts.
Remove the extension case.
Note: Use a container to catch oil flowing from extension.
Disconnect the transfer duty solenoid connector.

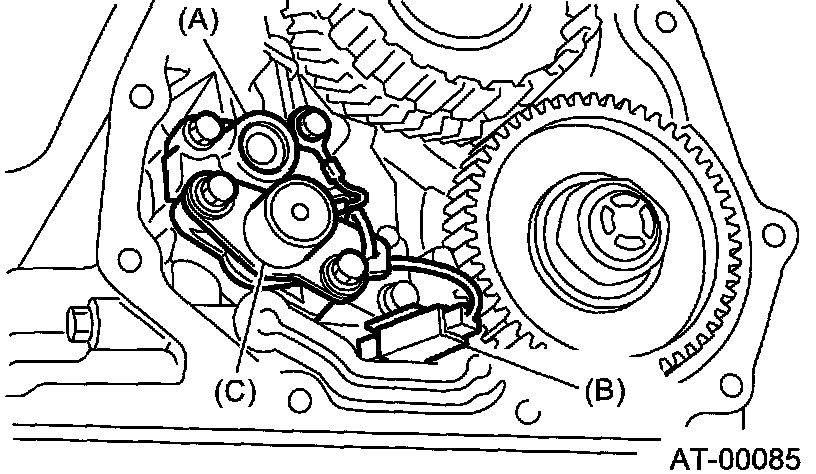

Remove the transfer duty solenoid and transfer valve body.
(A) Transfer valve body
(B) Transfer duty solenoid connector
(C) Transfer duty solenoid
INSTALLATION

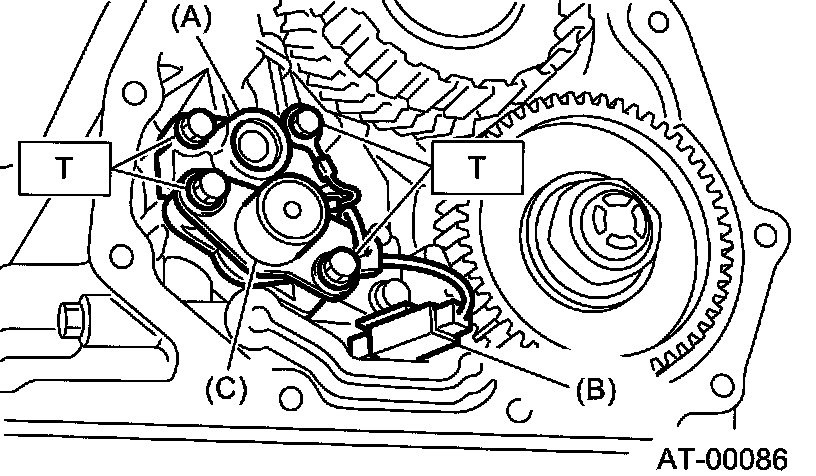

Install the transfer duty solenoid and transfer valve body. Install the transfer duty solenoid and transfer valve body. Tightening torque: T6: 8 Nm (0.8 kgf-m, 5.8 ft. lbs.) Connect the transfer duty solenoid connector.
(A) Transfer valve body
(B) Transfer duty solenoid connector
(C) Transfer duty solenoid
Install a new gasket and the extension case to transmission case.
Tighten eleven bolts.
Tightening torque: 25 Nm (2.5 kgf-m, 18.1 ft. lbs.)
Adjust the select cable.

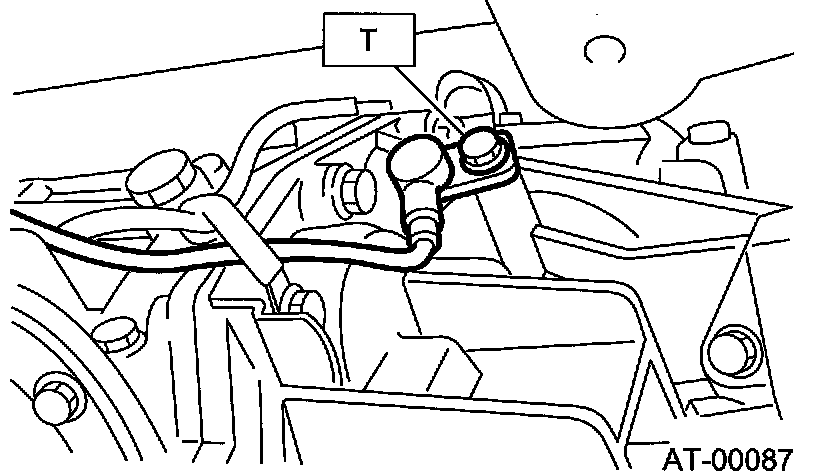

Install the rear vehicle speed sensor.
Tightening torque:
T6: 7 Nm (0.7 kgf-m, 5.1 ft. lbs.)

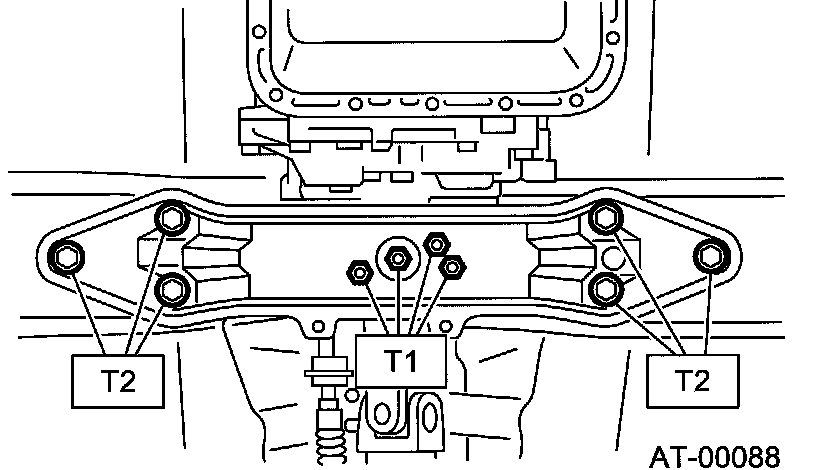

Install the transmission rear crossmember.
Tighten the bolts.
Tightening torque:
T1: 35 Nm (3.6 kgf-m, 26 ft. lbs.)
T2: 70 Nm (7.1 kgf-m, 51 ft. lbs.)
Remove the transmission jack.

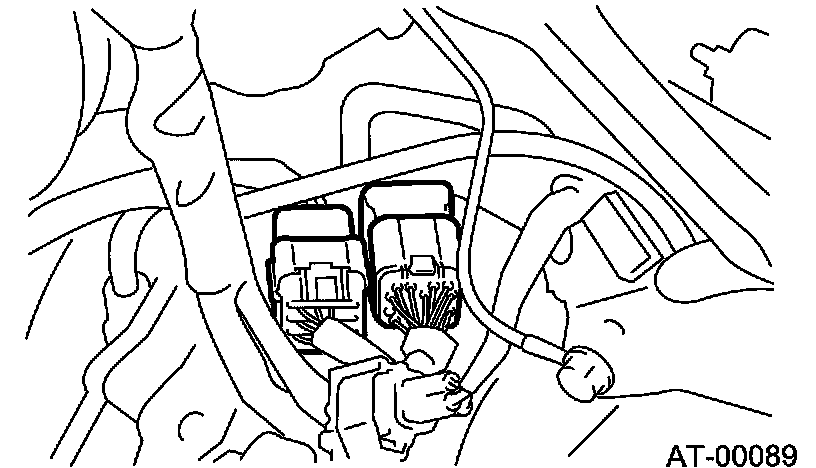

Install the propeller shaft. Install center and rear exhaust pipes, and muffler. Connect the transmission harness connector.

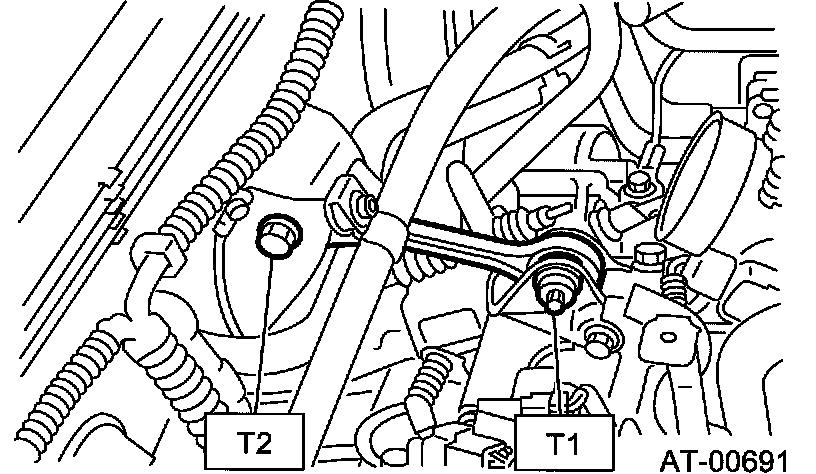

Install the pitching stopper.
Tightening torque:
T1: 50 Nm (5.1 kgf-m, 37 ft. lbs.)
T2: 58 Nm (5.9 kgf-m, 43 ft. lbs.)
Install intercooler. (Saab 9-2X 2.0T Aero)
fill ATF up to the middle of the COLD side on level gauge by using the gauge hole.
Check the ATF level.
