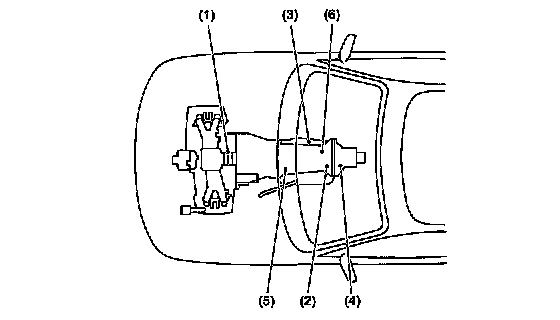

Transmission Speed Sensor: Locations





SENSOR

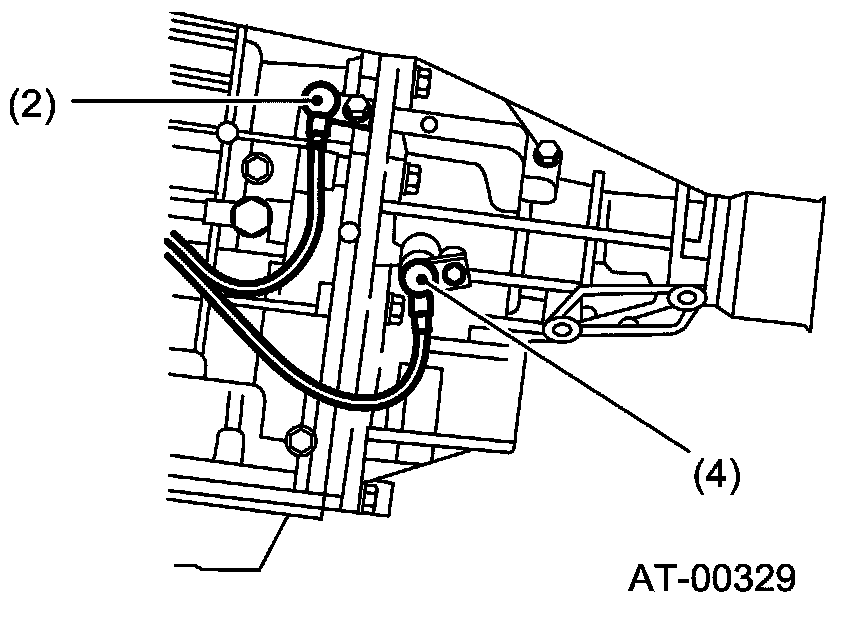

(2) Front vehicle speed sensor





(4) Rear vehicle speed sensor





(5) Torque converter turbine speed sensor
