Ignition Switch: Service and Repair



REPLACEMENT

Remove the ground cable from battery.
Remove the steering column.

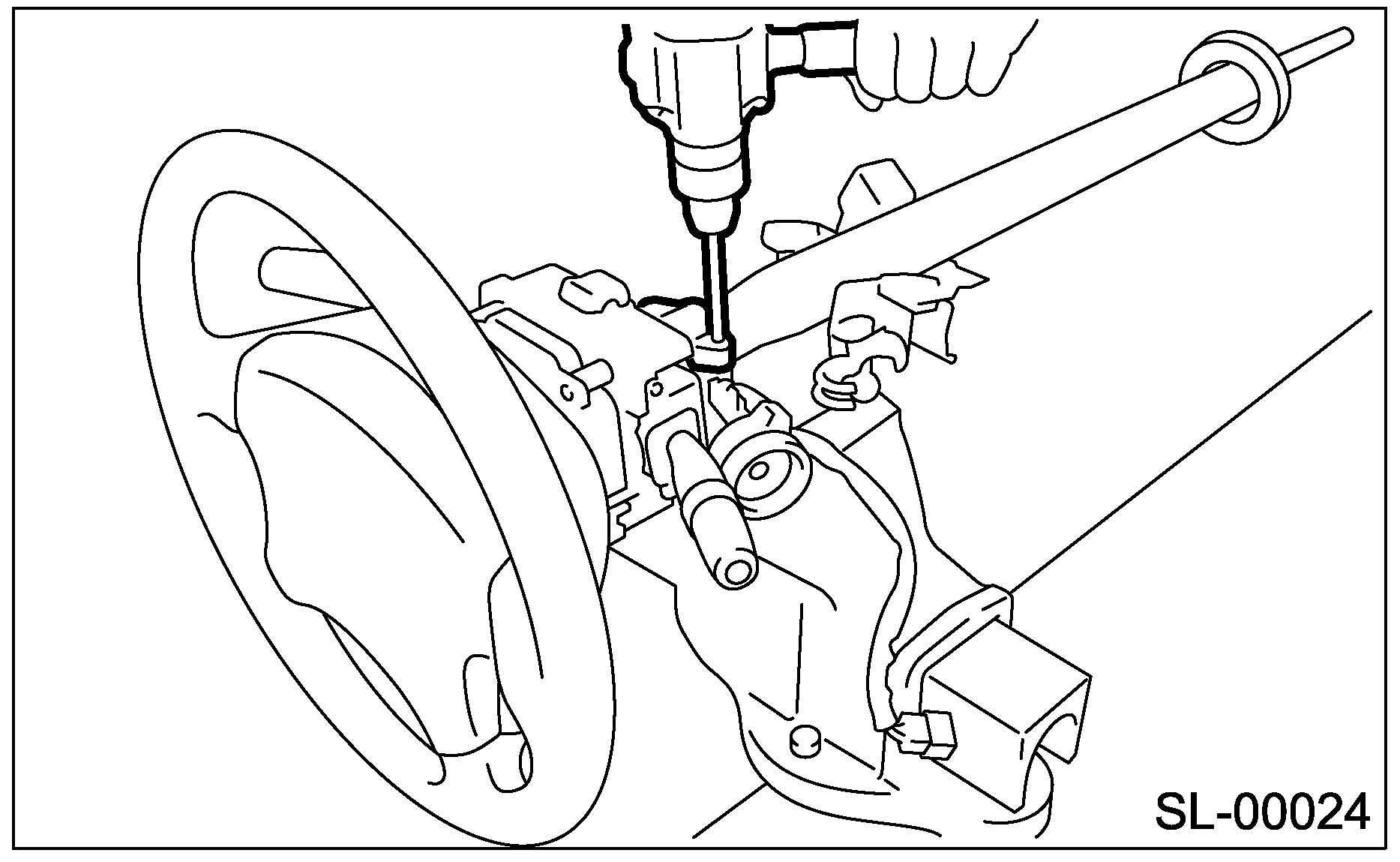

Secure the steering column in a vise. Remove the bolt with a drill.

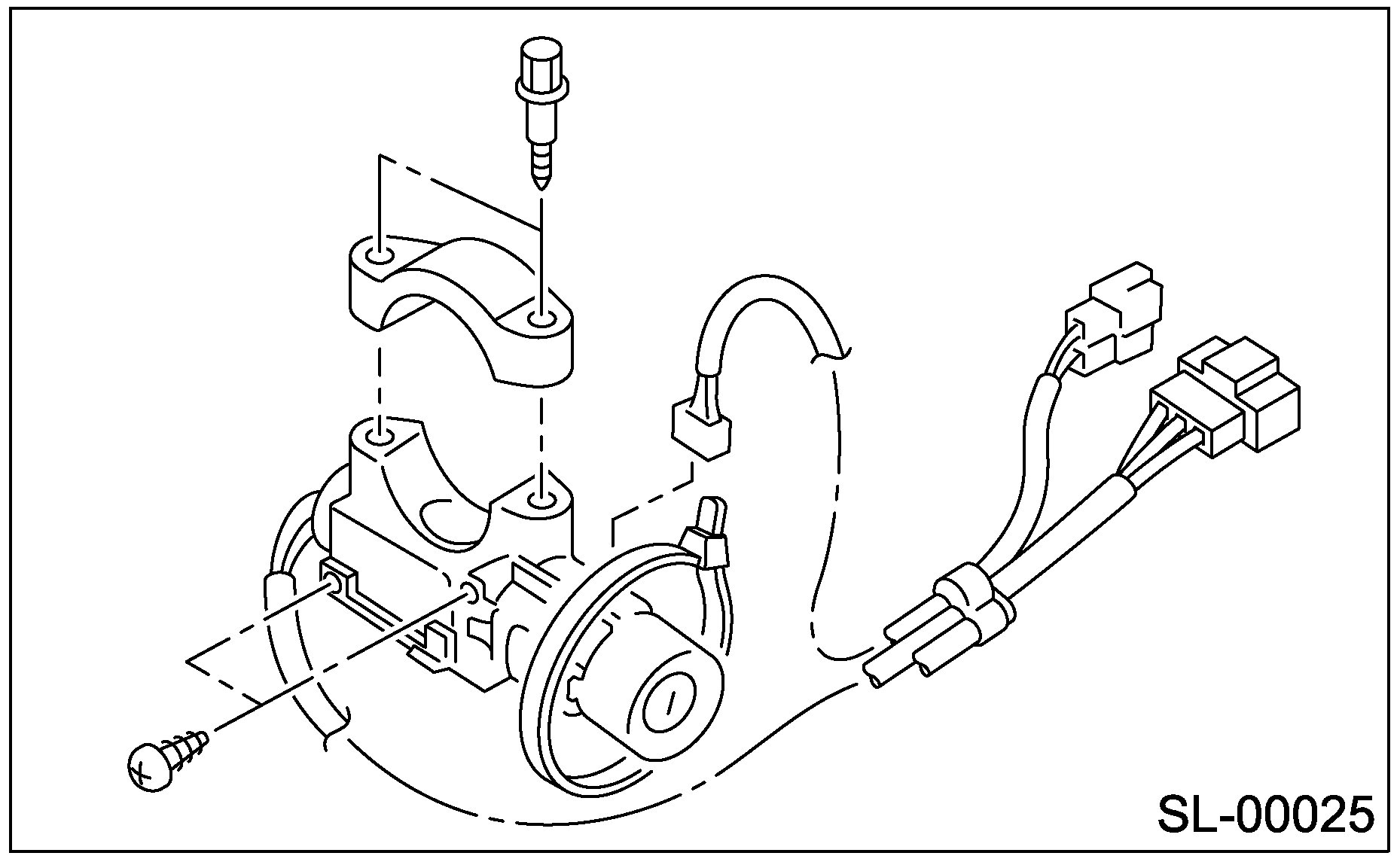

Remove the ignition key lock.
Use a new torn bolt. Tighten the torn bolt to end of thread.
