Throttle Position Sensor: Service and Repair

Throttle Position Sensor

REMOVAL

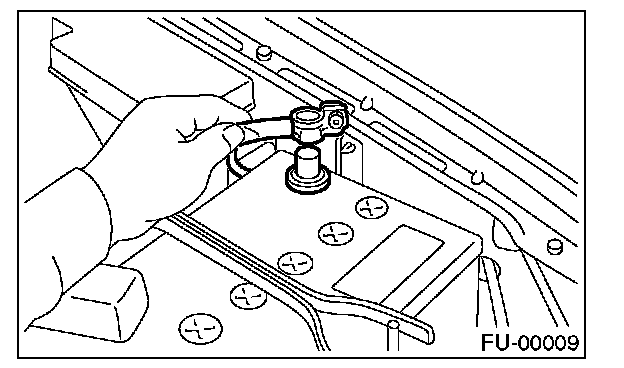

1. Disconnect the ground cable from battery.
2. Remove the intercooler.




3. Disconnect the connector from the throttle position sensor.

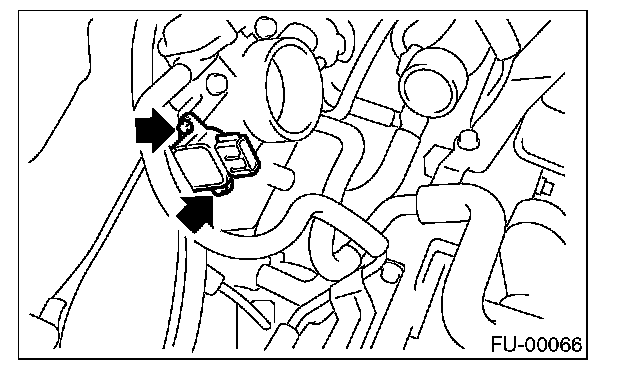

4. Remove the throttle position sensor holding screws, and remove the throttle position sensor.

INSTALLATION

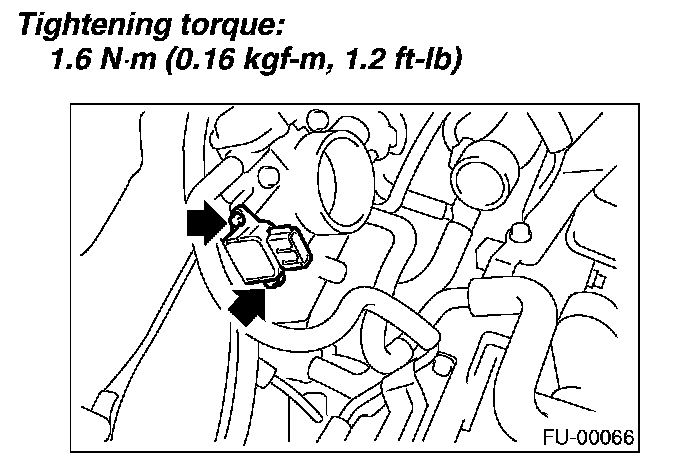

Install in the reverse order of removal.
