Brake Light Switch: Adjustments

Adjustment

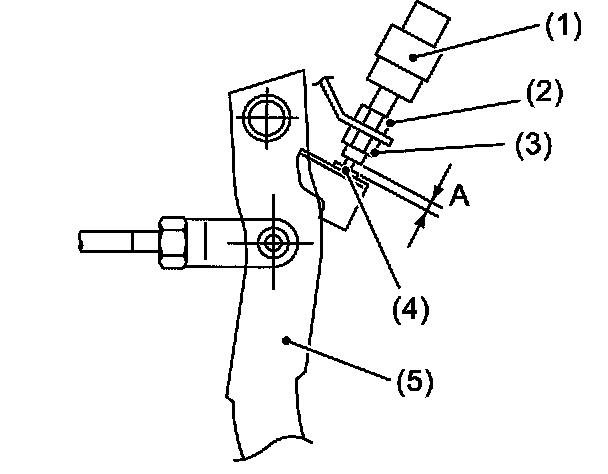

Loosen the lock nut, and adjust the stop light switch position until the clearance between threaded end of stop light switch and stopper (A) becomes 0.3 mm (0.012 inch). Then, tighten the lock nut.
Tightening torque: 8 Nm (0.8 kgf-m, 5.8 ft. lbs.)





(1) Stop light switch
(2) Lock nut A
(3) Lock nut B
(4) Stopper
(5) Brake pedal

Note: Tighten the lock nut B until the clearance between threaded end of stop light switch and stopper becomes 0 mm (0 inch). Hold the stop light switch to prevent turning, and then loosen the lock nut B approximately 601. The clearance (A) will become 0.3 mm (0.012 inch).
