Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - HVAC >> Evaporator Temperature Sensor / Switch >> Testing and Inspection

Evaporator Temperature Sensor / Switch: Testing and Inspection



Evaporator Sensor

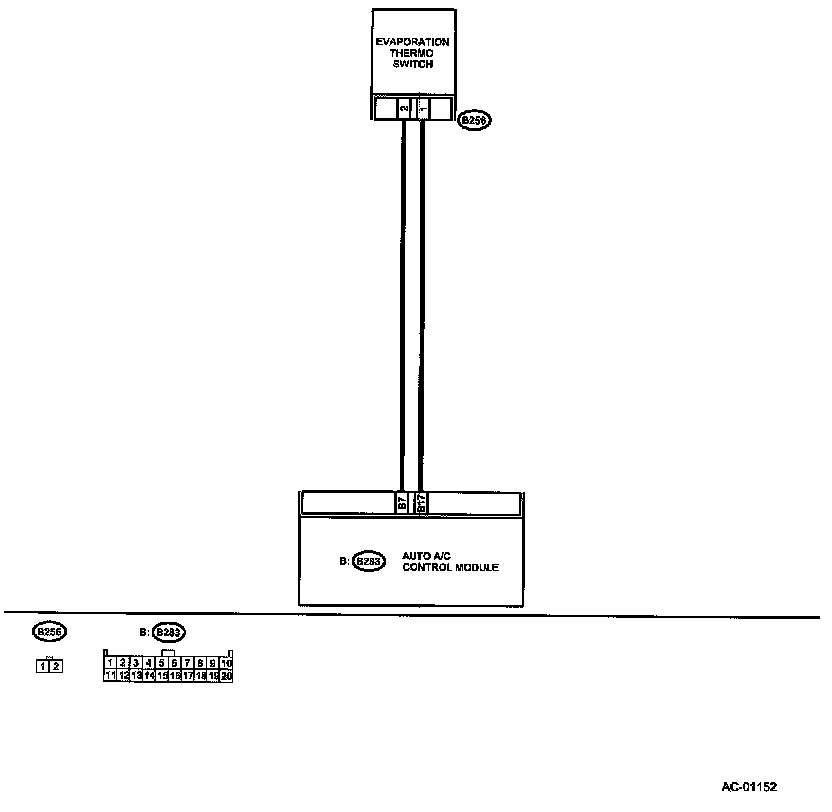

Wiring Diagram:

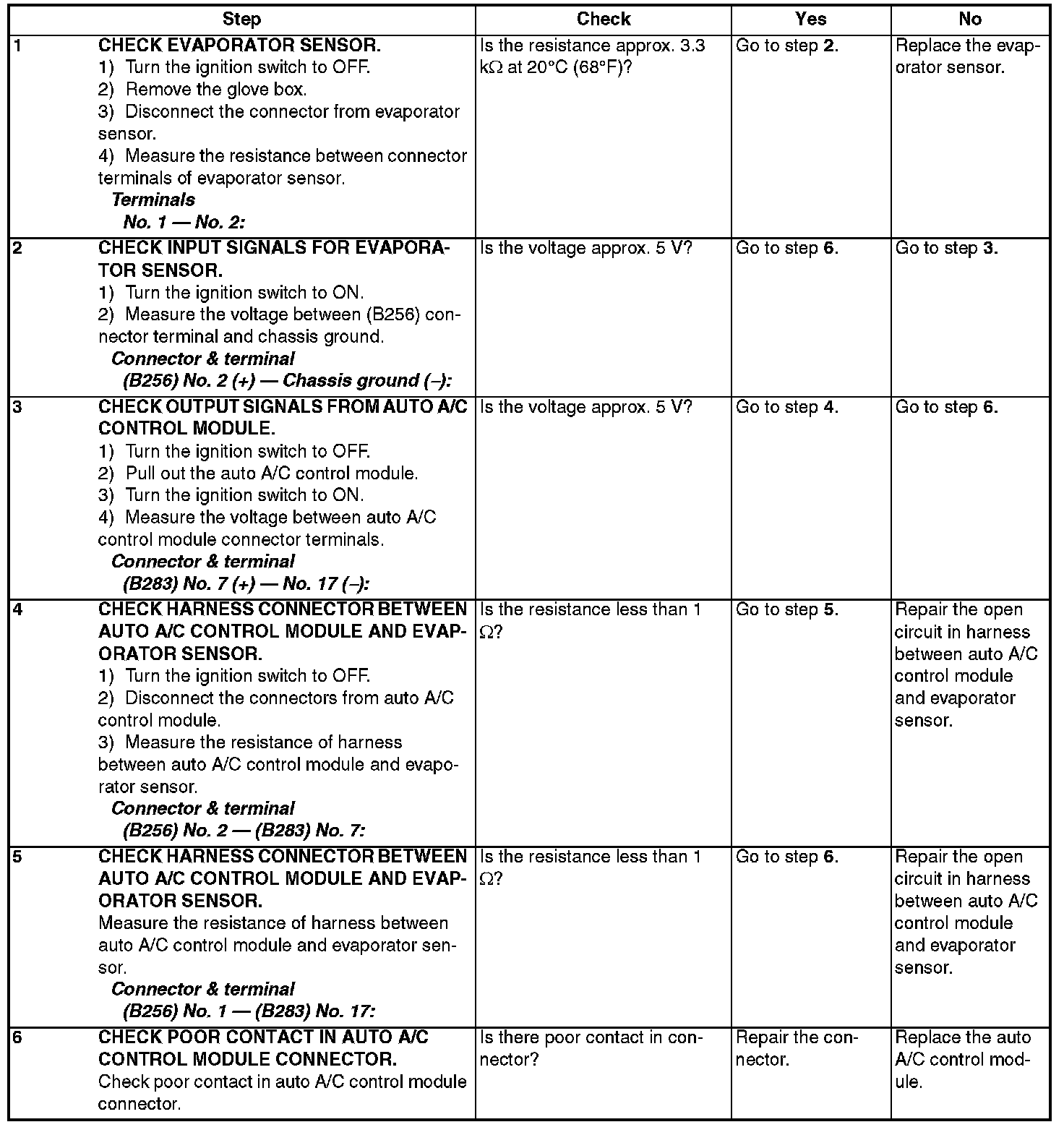

Step 1 - 6:
