Component Tests and General Diagnostics



INSPECTION

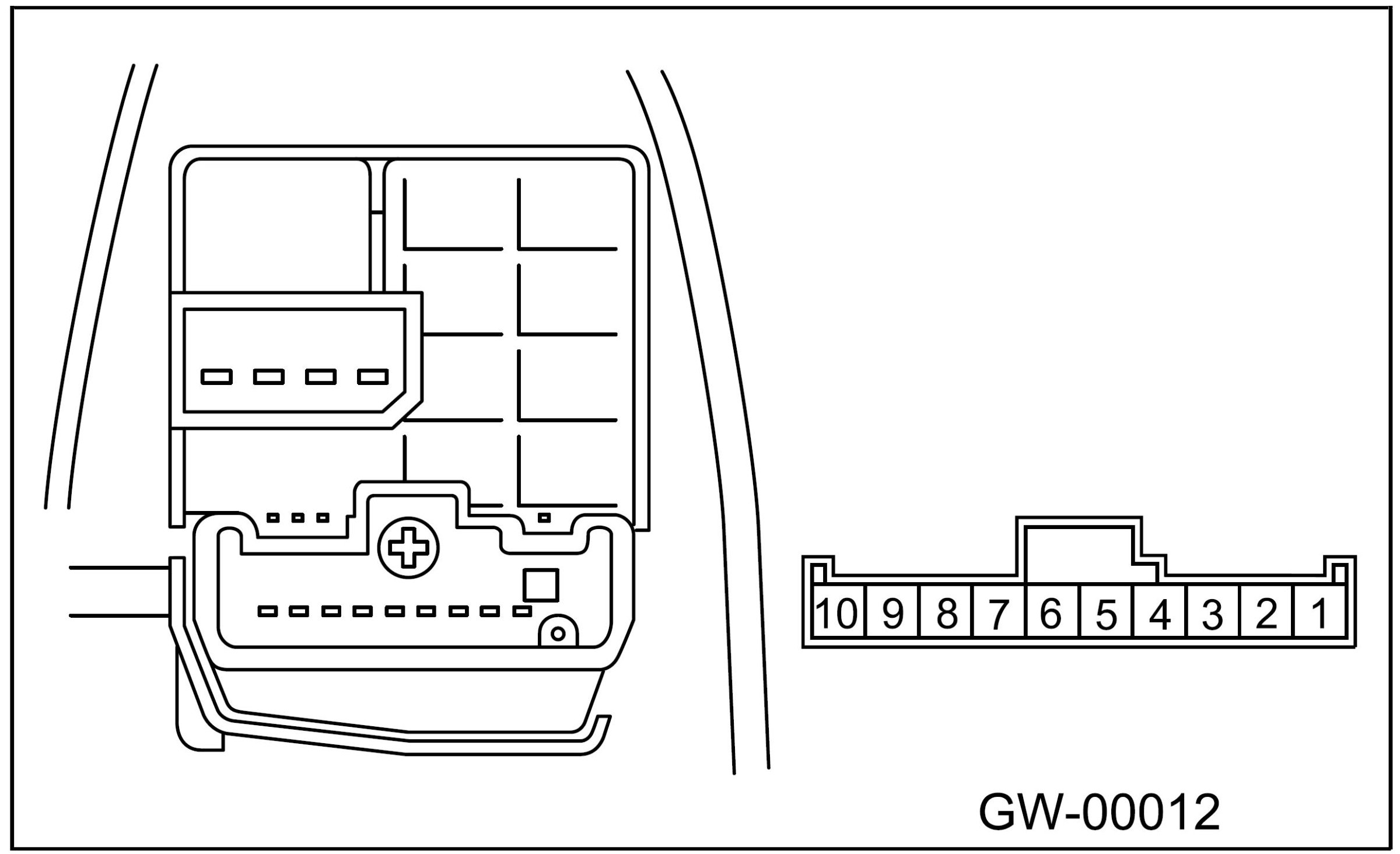

Move the rearview mirror switch to each position and check continuity between terminals.

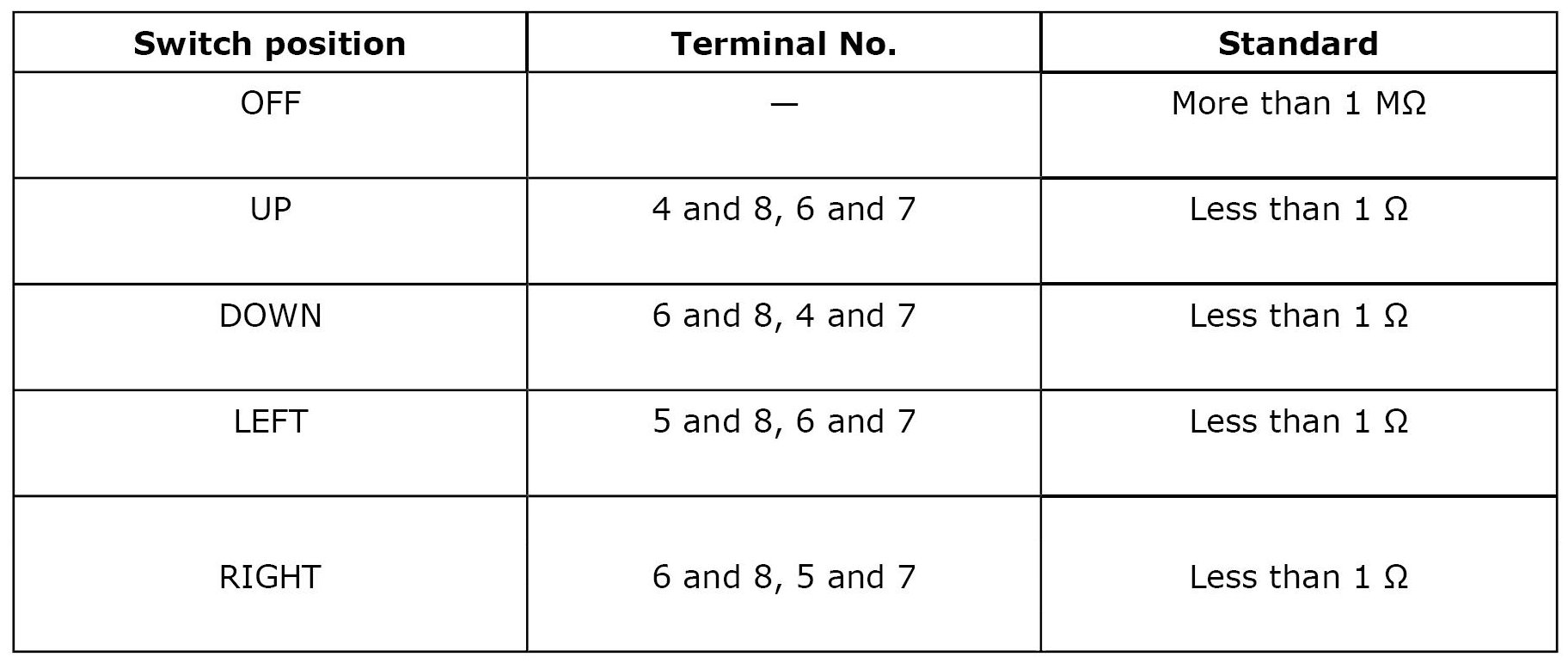

Change over switch right position:

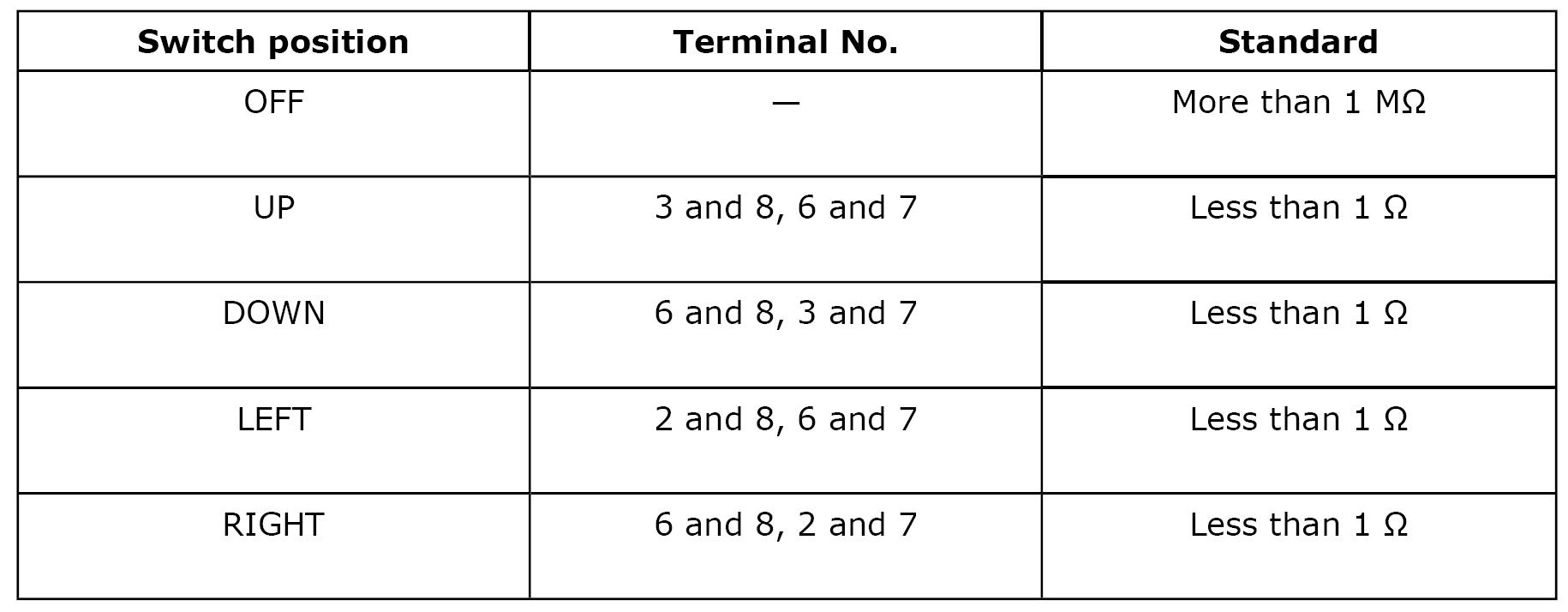

Change over switch left position:
