Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Restraints and Safety Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Diagnostic Strategies >> Basic Diagnostic Procedure

Basic Diagnostic Procedure

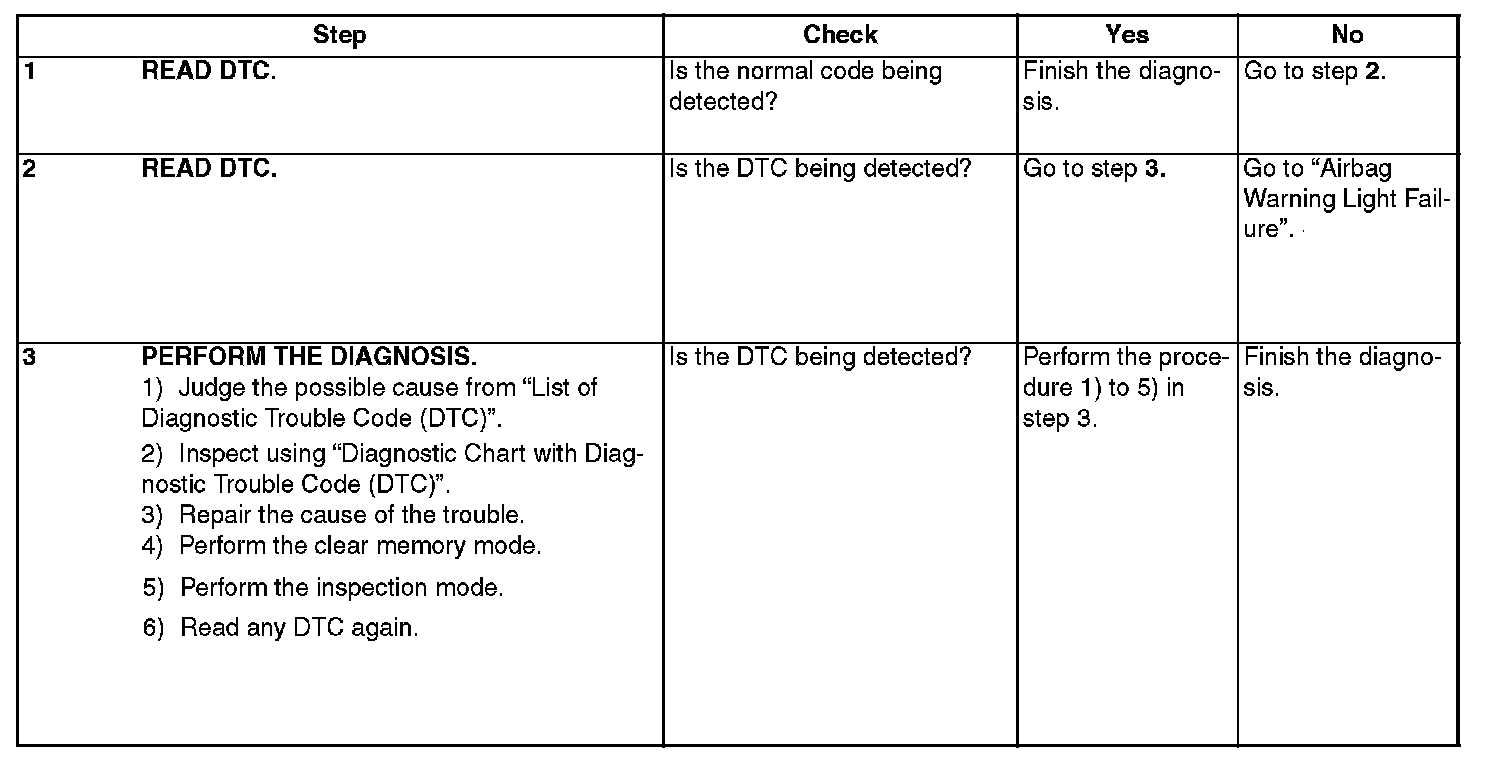

Step 1 - 3:

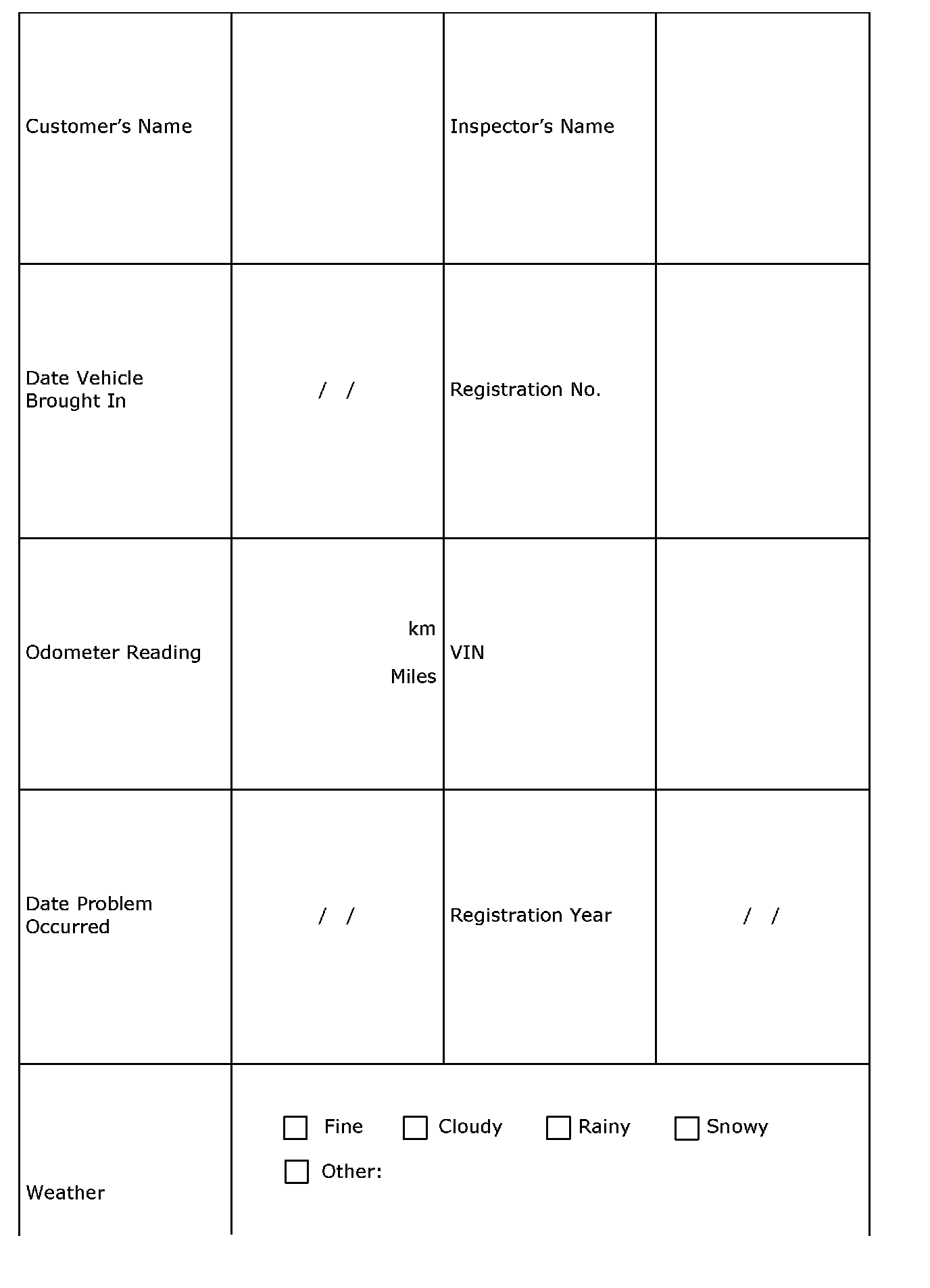

Check List For Interview Part 1:

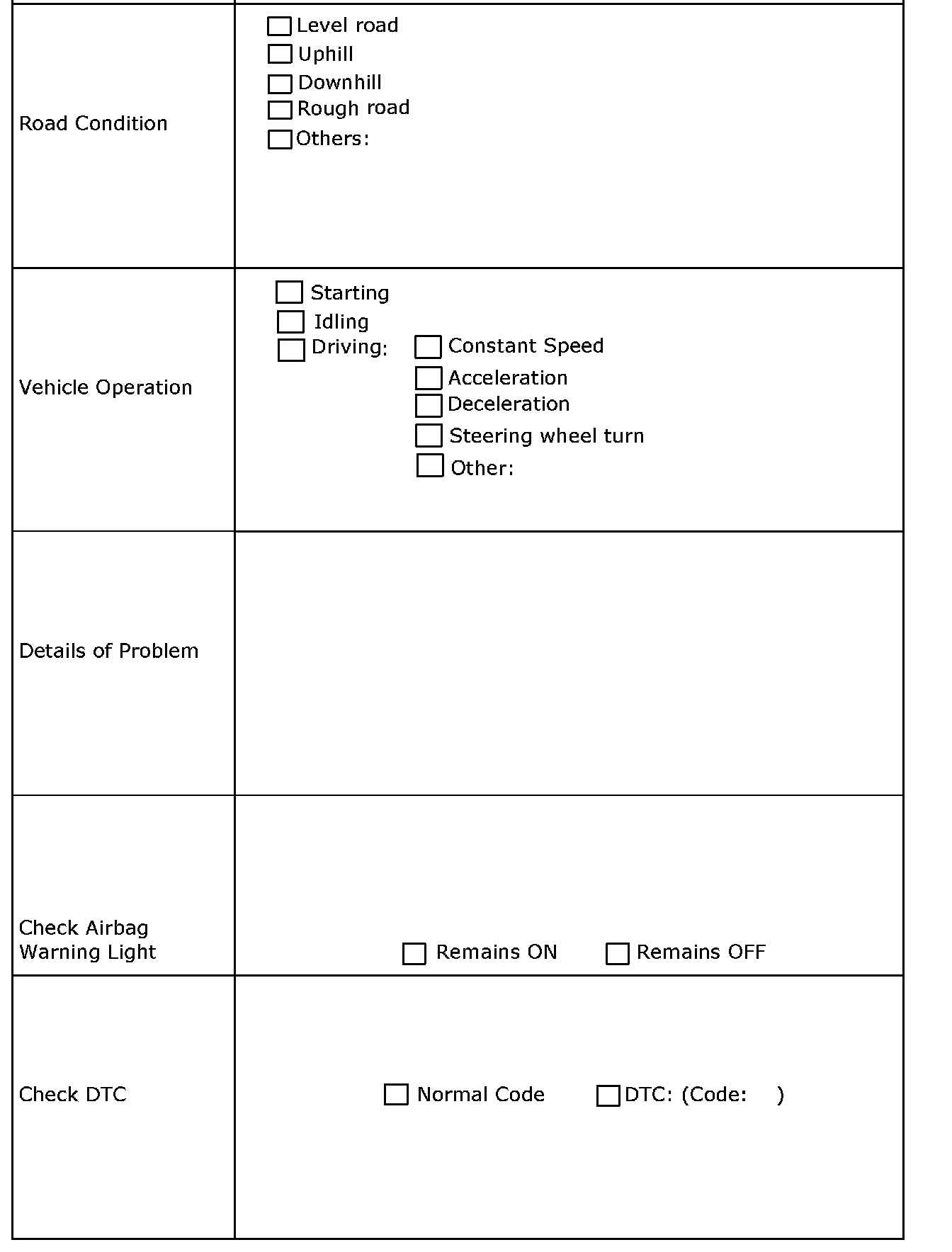

Check List For Interview Part 2:
