Rear Seat Belt

Rear Seat Belt

Removal

Outer Seat Belt Rh Assembly And LH Assembly
Remove the luggage floor mat.
Remove the rear seat cushion.
Remove the side sill rear lower cover.

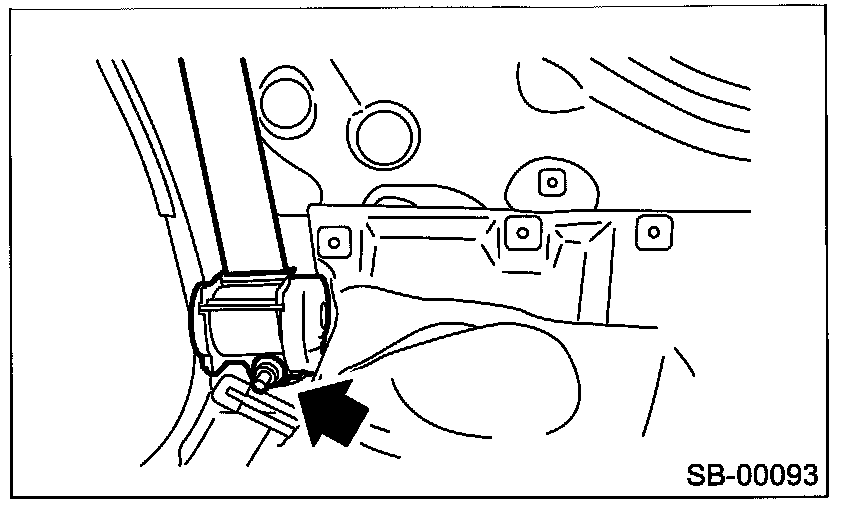

Remove the seat belt lower anchor bolt.

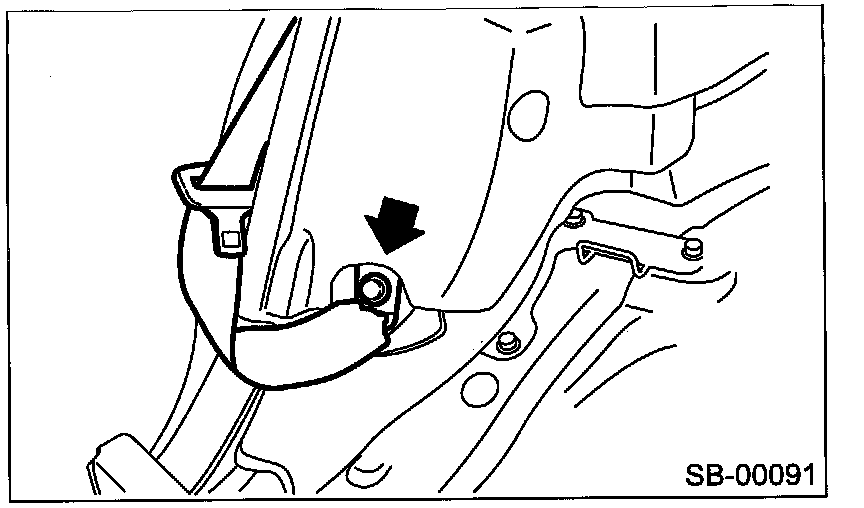

Remove the anchor cover. Remove the bolt from pillar and remove shoulder anchor.







Remove the rear quarter trim.
Remove the bolts, and then detach the outer seat belt.

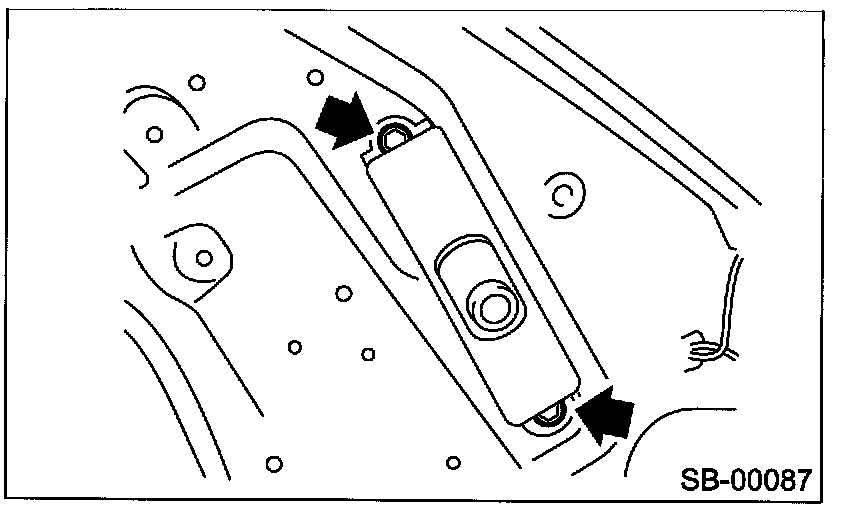

Remove the two bolts and remove adjustable anchor ASSEMBLY.







Shoulder Seat Belt Ctr Assembly

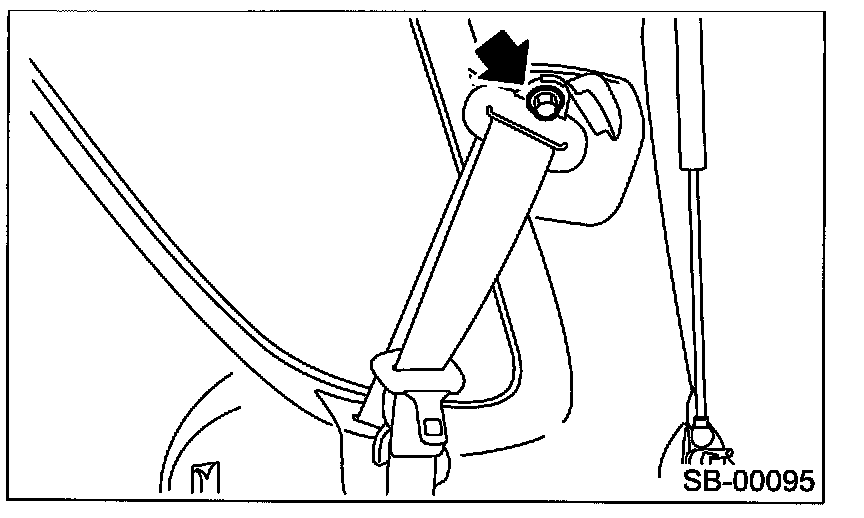

Remove the shoulder anchor bolt, and then detach the shoulder anchor from quarter pillar.







Remove the quarter trim.

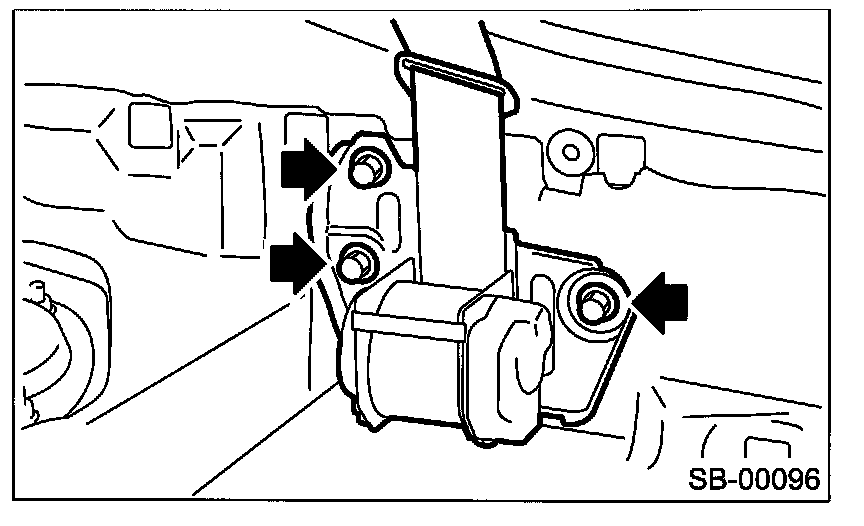

Remove the three bolts, and then detach the outer belt center.







Center Seat Belt RH Assembly And LH Assembly
Remove the rear seat cushion.

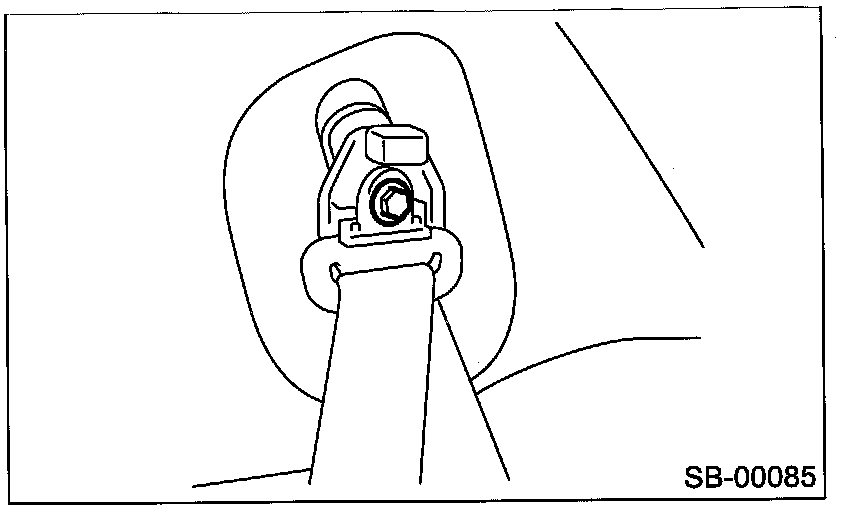

Remove the bolt, and then detach the center seat belt assembly.







Installation
Outer Seat Belt RH Assembly And LH Assembly
Install in the reverse order of removal.

IMPORTANT
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts can be smoothly extended and wound.

Shoulder Seat Belt Ctr Assembly
Install in the reverse order of removal.

IMPORTANT
- During installation, make sure that the seat belts are not twisted.
- After installation, make sure that the seat belts are smoothly extended and wound.

Center Seat Belt RH Assembly And LH Assembly
Install in the reverse order of removal.

IMPORTANT: During installation, make sure that the seat belts are not twisted.
