Seat Belt Tensioner: Service and Repair

Pretensioner Connector

Removal

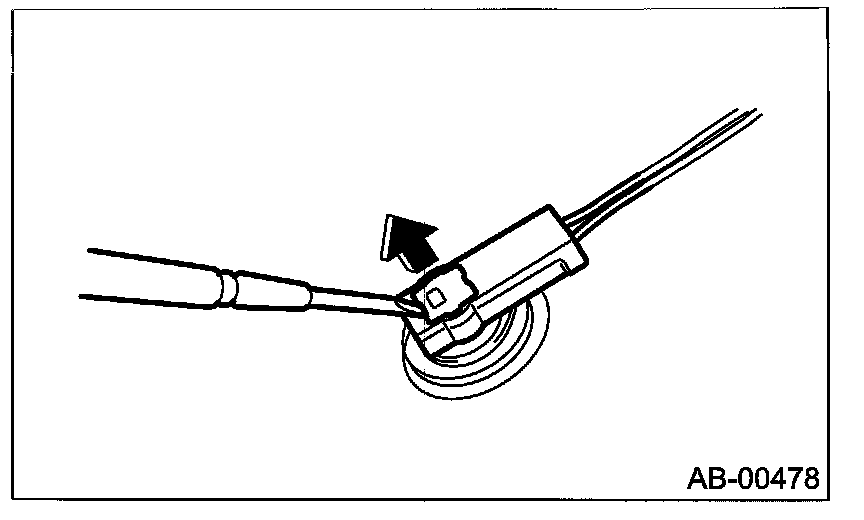

Using a flat tip screwdriver, pry the push lock upward to unlock.

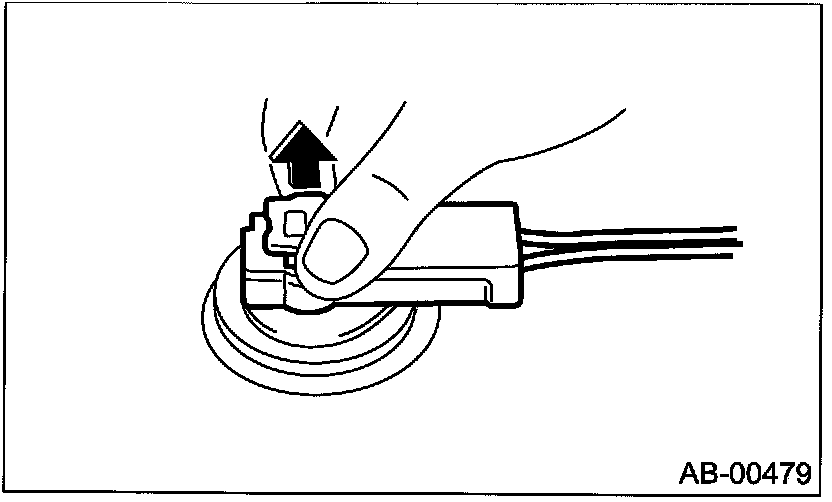

Pull the connector to disconnect from retractor assembly.







Installation

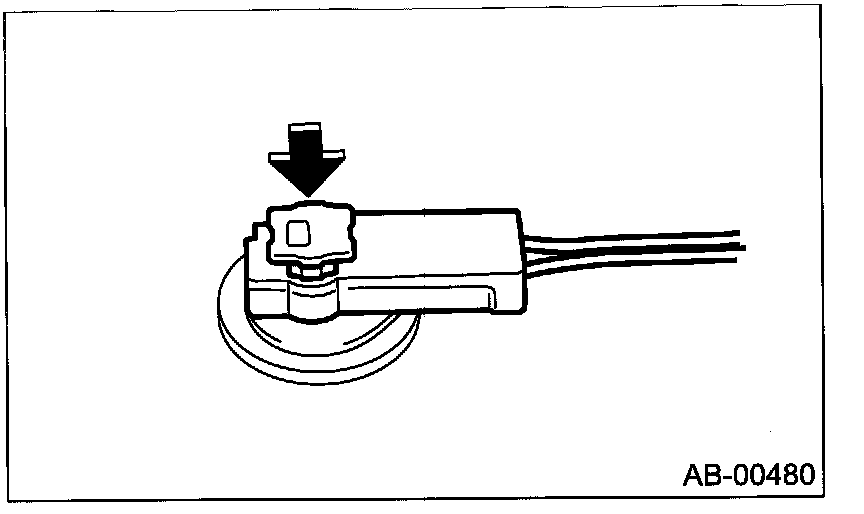

Connect the connector in reverse order of removal. At this time, be sure to insert the push lock in until connecting sound is heard.

IMPORTANT
- Be sure to insert the connector in until it locks. Then pull on it gently to make sure that it is locked.
- At this time, be sure to insert the push lock in.
