Passenger's Airbag Module

Passenger's Airbag Module

Removal

IMPORTANT: Refer to "CAUTION" in Service Precautions before handling the airbag module.

Turn the ignition switch to OFF.
Disconnect the ground cable from battery, and wait for at least 20 seconds before starting work.
Remove the glove box.

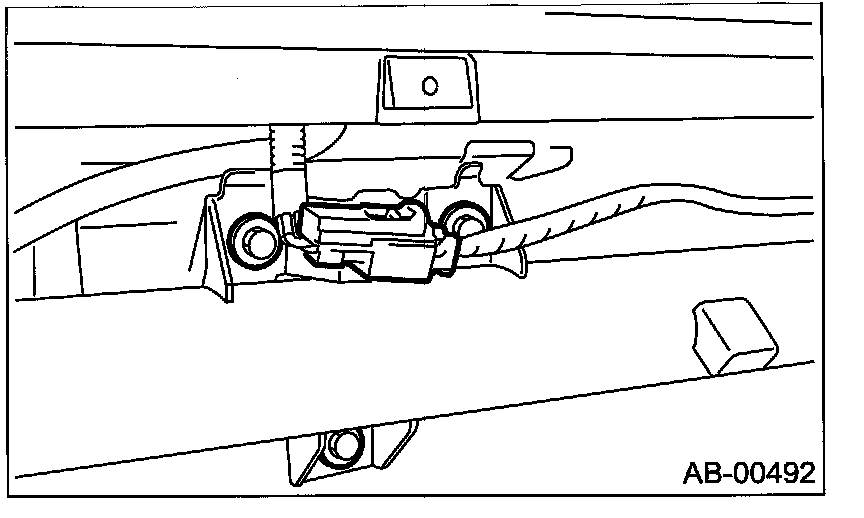

Detach the airbag connector from support beam bracket, and then disconnect the airbag connector.







Remove the three bolts, and then carefully remove the passenger's airbag module.

Refer to "CAUTION" for handling of a removed airbag module.

Installation
Install in the reverse order of removal.

IMPORTANT: Do not allow harness and connectors to interfere or get tangled up with other parts.

Tightening torque:
T1: 5.9 Nm (0.59 kgf-m, 4.4 ft-lb)
T2: 7.4 Nm (0.75 kgf-m, 5.4 ft-lb)
T3: 10 Nm (1.0 kgf-m, 7.2 ft-lb)
T4: 20 Nm (2.0 kgf-m, 14.5 ft-lb)
T5: 25 Nm (2.5 kgf-m, 18.1 ft-lb)
