Variable Induction Control Actuator: Service and Repair

Tumble Generator Valve Actuator

REMOVAL
RH SIDE
1. Release the fuel pressure.
2. Open the fuel filler lid and remove the fuel filler cap.

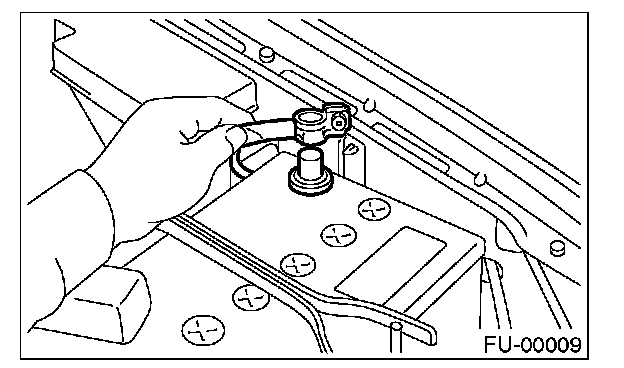

3. Disconnect the ground cable from battery.
4. Remove the intake manifold.
5. Disconnect the connector from tumble generator valve actuator RH.

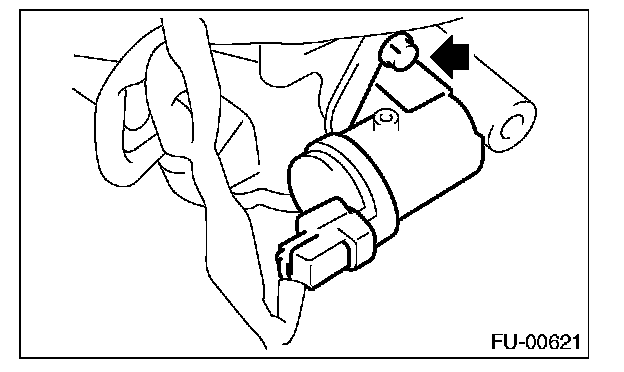

6. Remove the tumble generator valve RH.

LH SIDE
1. Release the fuel pressure.
2. Open the fuel filler lid and remove the fuel filler cap.

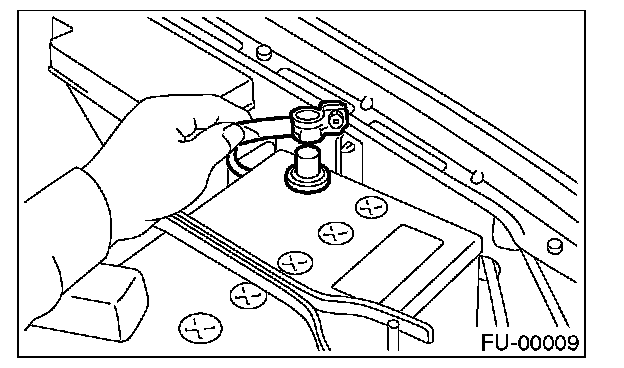

3. Disconnect the ground cable from battery.
4. Disconnect the connector from tumble generator valve LH.

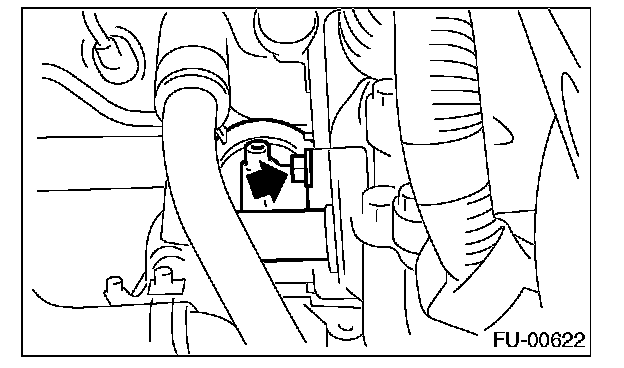

5. Remove the tumble generator valve actuator LH.

INSTALLATION

RH SIDE
Install in the reverse order of removal.

LH SIDE
Install in the reverse order of removal.
