Wastegate Solenoid: Service and Repair

Wastegate Control Solenoid Valve

REMOVAL

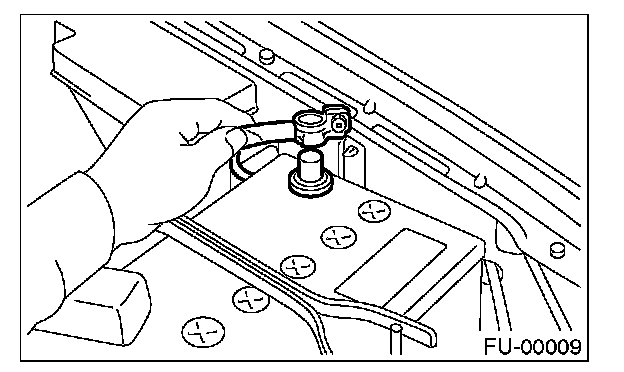

1. Disconnect the ground cable from battery.

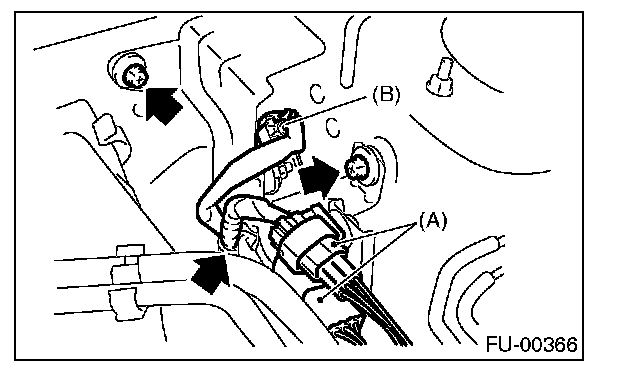

2. Disconnect the engine harness connector (A) from bracket.
3. Disconnect the connector (B) from wastegate control solenoid valve.
4. Remove the bracket from body.

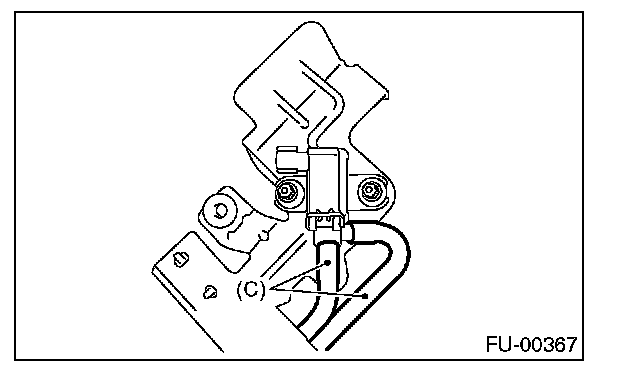

5. Disconnect the pressure hoses (C) from wastegate control solenoid valve.

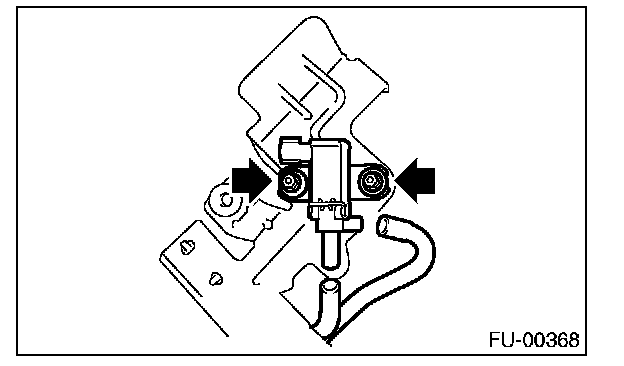

6. Remove the wastegate control solenoid valve from bracket.

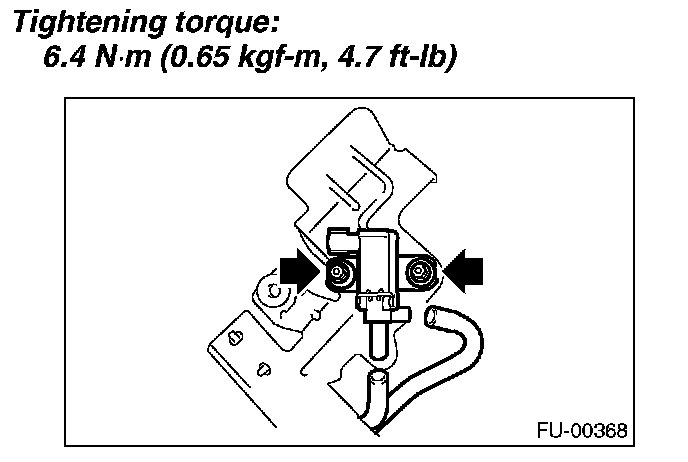

INSTALLATION




Install in the reverse order of removal.
