Air Bypass Valve: Service and Repair

Air By-Pass Valve

REMOVAL

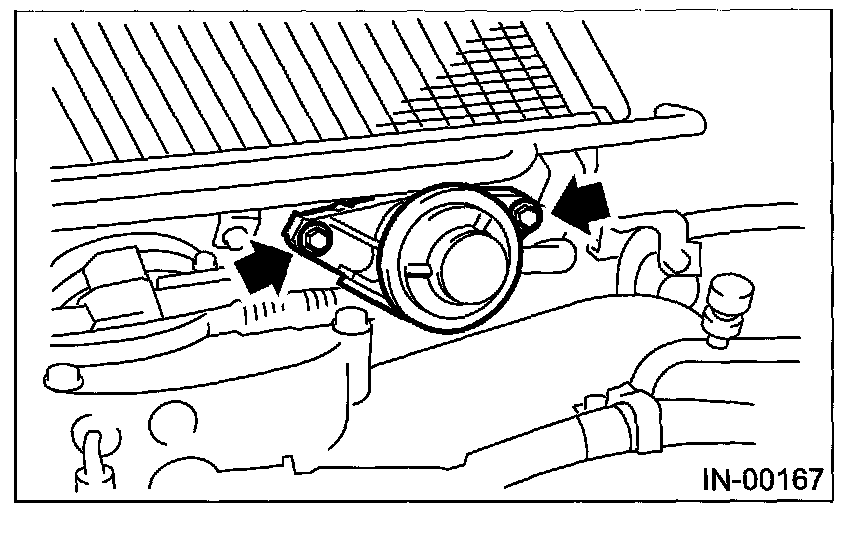

Remove the air by-pass valve from intercooler.







Disconnect the air by-pass hoses from air by-pass valve.

INSTALLATION

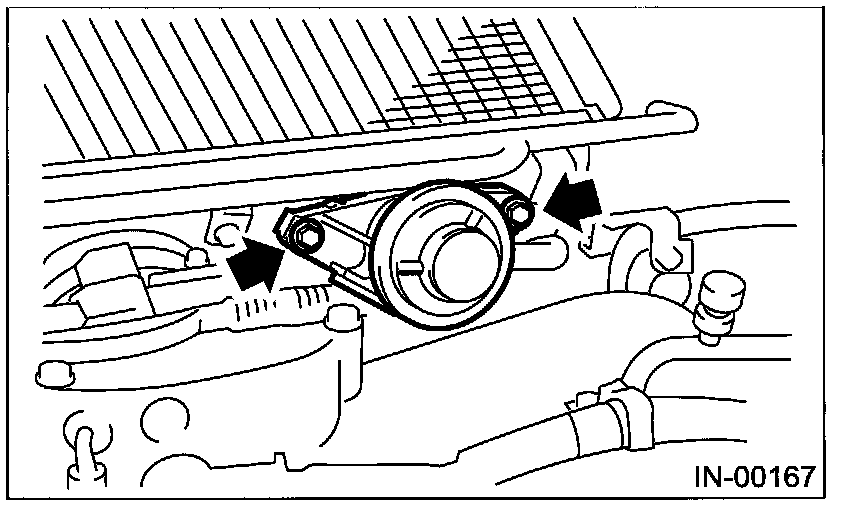

Install in the reverse order of removal.

Tightening torque: 16 Nm (1.6 kgf-m, 11.6 ft-lb)
