Throttle Cable/Linkage: Service and Repair

Accelerator Control Cable

Removal
Remove the accelerator pedal.
Separate the accelerator cable and accelerator pedal.

Installation
Install in the reverse order of removal.

NOTE:
- If the cable clamp is damaged, replace it with a new one.
- Never fail to cover the outer cable end with boot.
- Be careful not to kink the accelerator cable.
- Do not apply grease to except specified part.

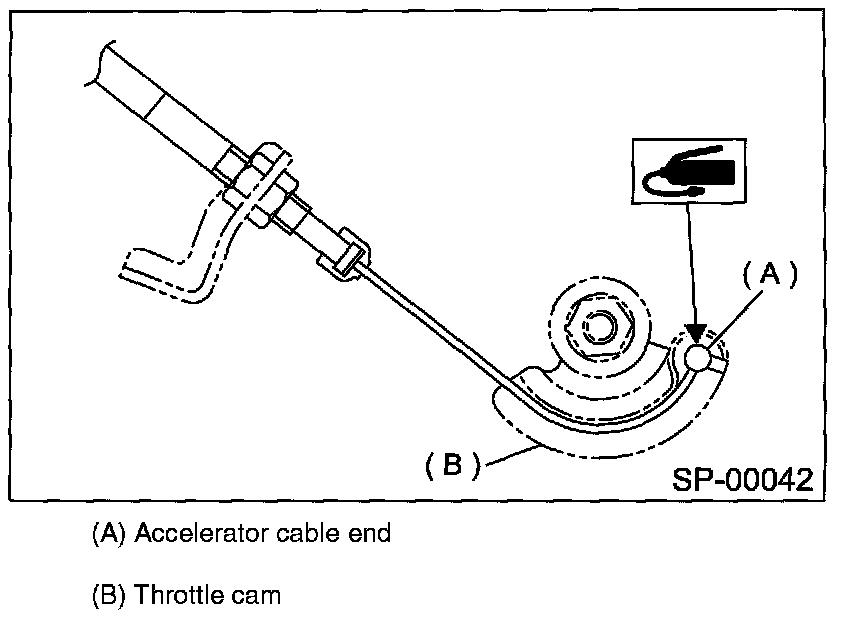

Apply grease to engine side accelerator cable end.

Grease: Silicolube G-30M (Part No. 32005017)







Adjustment after pedal installation.
