Overhaul

Fuel Filler Pipe

DISASSEMBLY

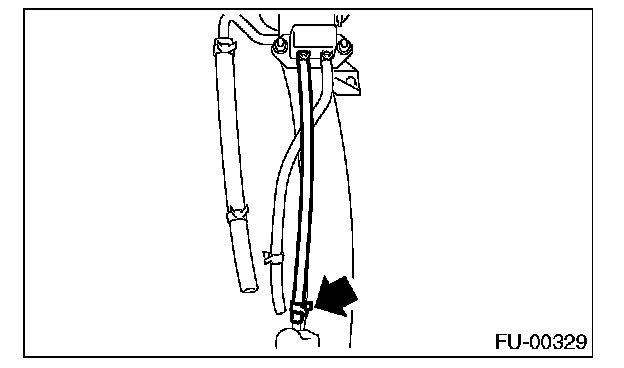

1. Move the clamp, and disconnect the evaporation hose from the joint pipe.

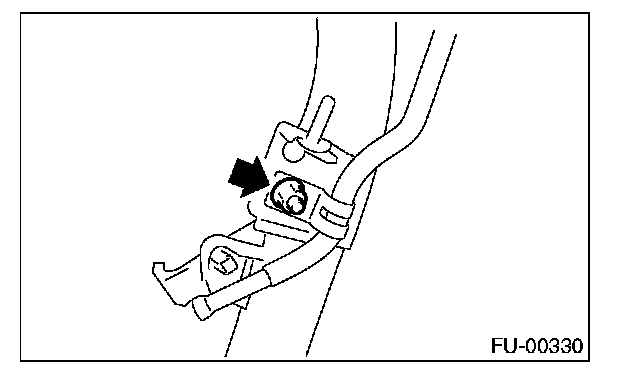

2. Remove the bolt which installs the joint pipe on the fuel filler pipe.

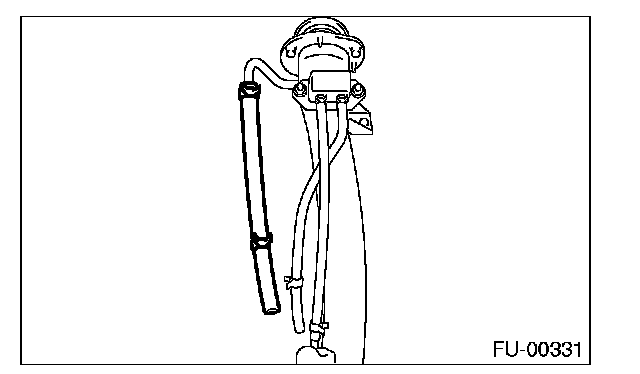

3. Disconnect the evaporation hose from the fuel filler pipe.
4. Remove the shut valve from the fuel filler pipe.

ASSEMBLY
1. Install the shut valve on the fuel filler pipe.

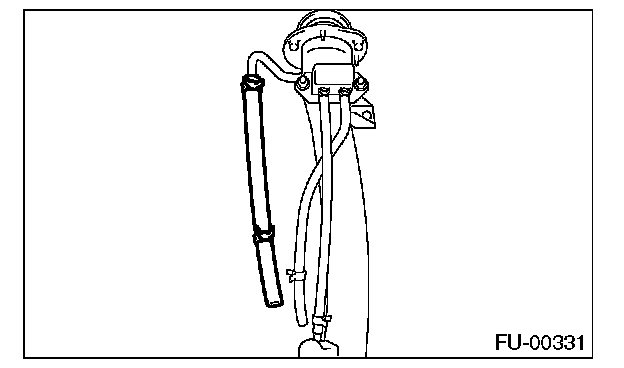

2. Connect the evaporation hose to the fuel filler pipe.

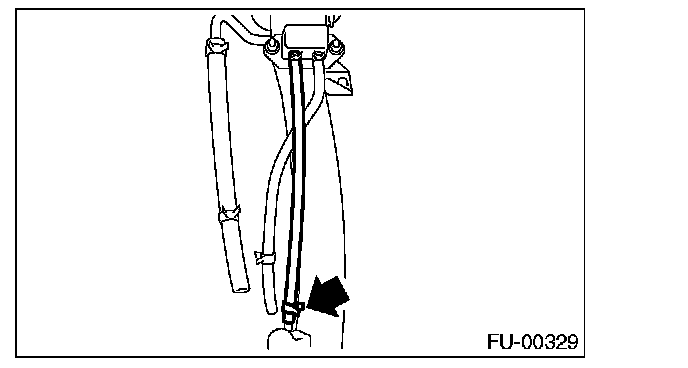

3. Connect the evaporation hose to the evaporation pipe.

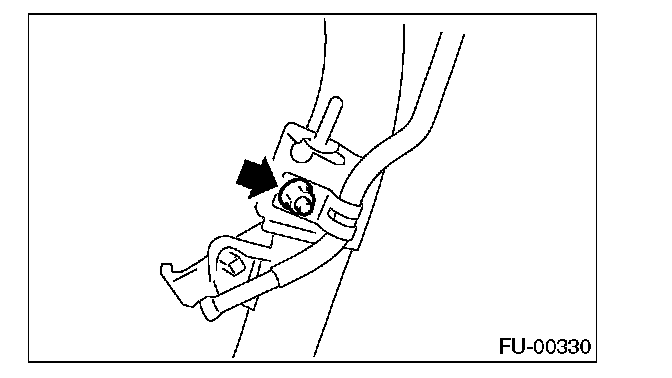

4. Install the evaporation pipe to the fuel filler pipe.
