Removal and Replacement

Accelerator Pedal

REMOVAL
Disconnect the ground cable from battery.

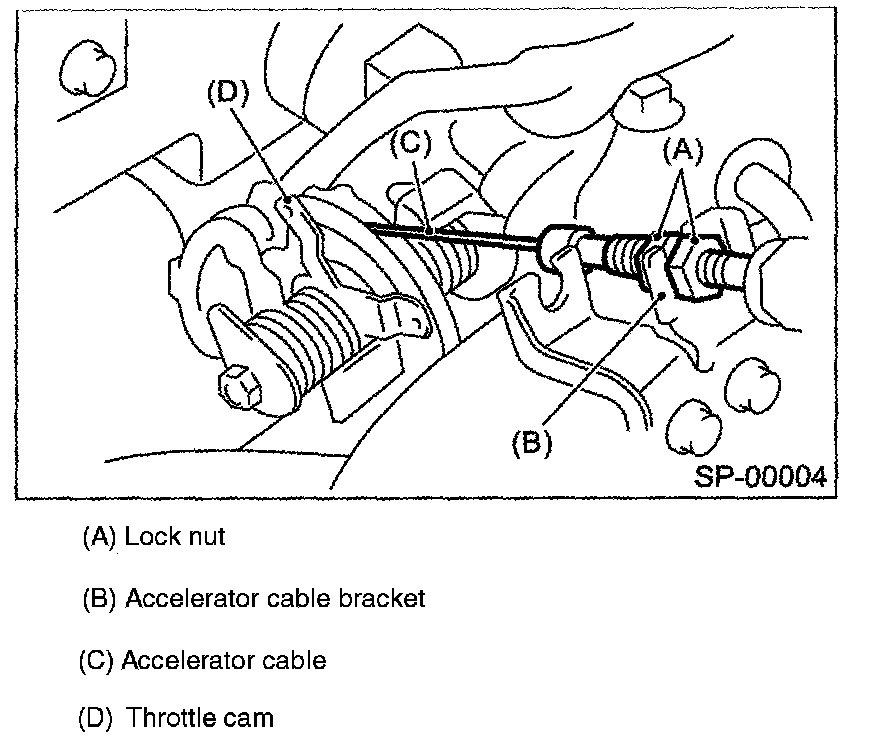

Remove the lock nut from accelerator cable bracket.
Separate the accelerator cable from bracket. Remove the accelerator cable end from throttle cam.

NOTE: Be careful not to kink the accelerator cable.

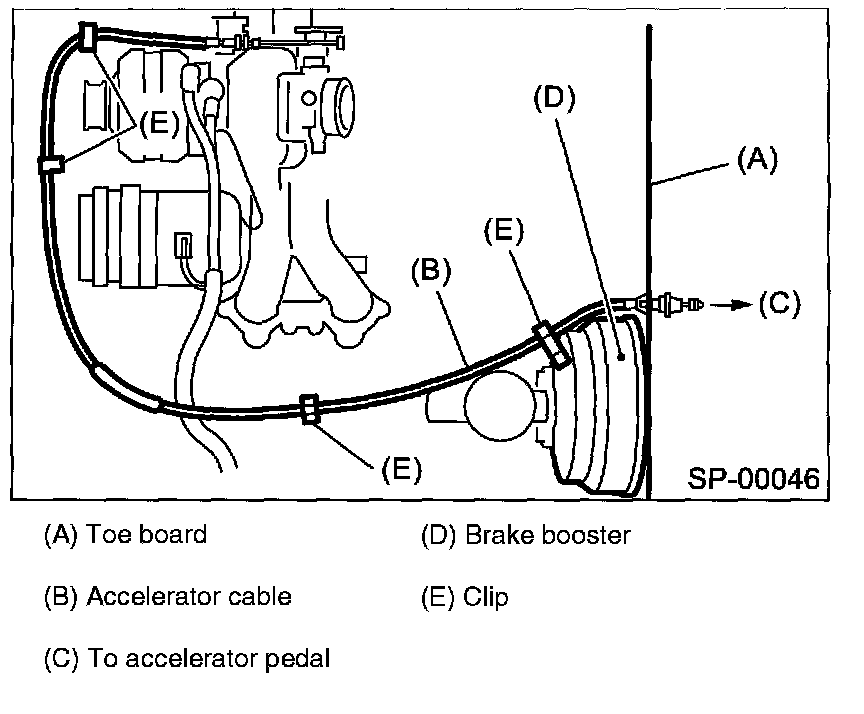

Remove the clip inside engine compartment.







Remove the instrument panel lower cover from instrument panel.

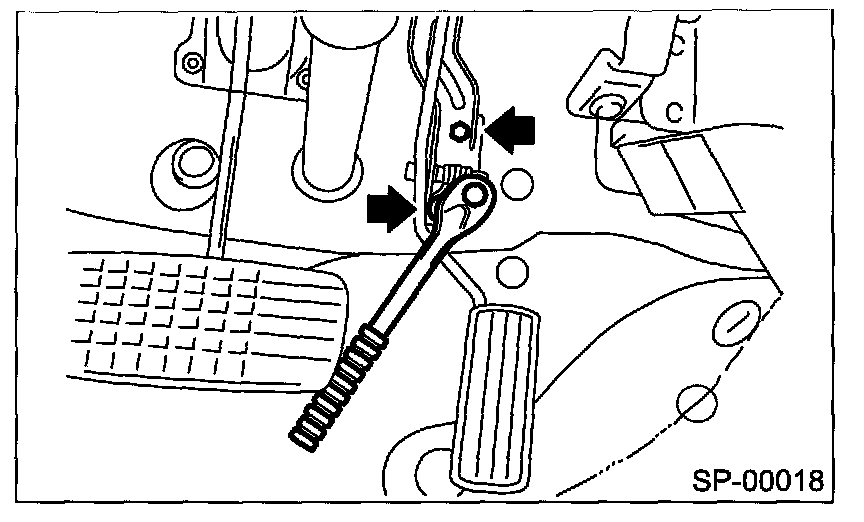

Remove the accelerator pedal connecting bolt from accelerator pedal bracket.

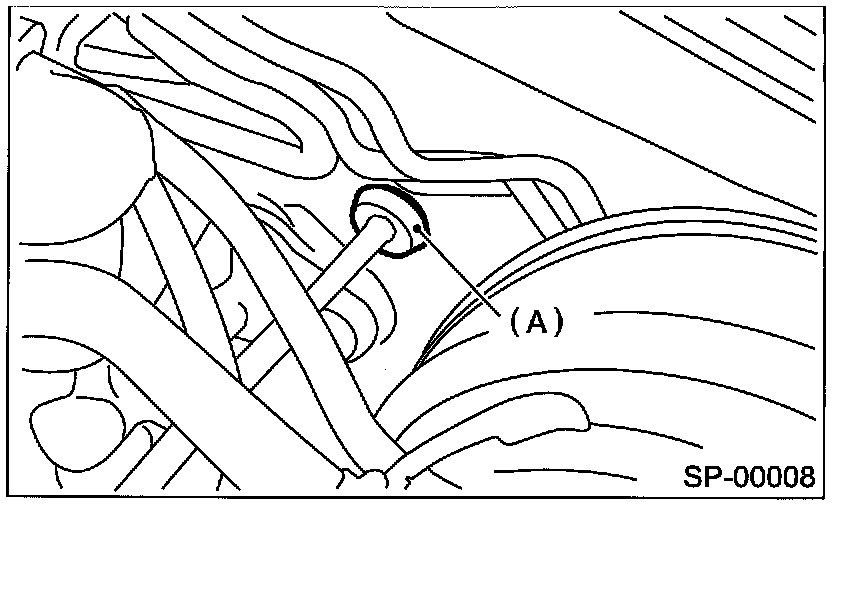

Disconnect the grommet from toe board.

NOTE: From inside compartment, push the grommet (A) into hole.







Pull out the cable from toe board hole.

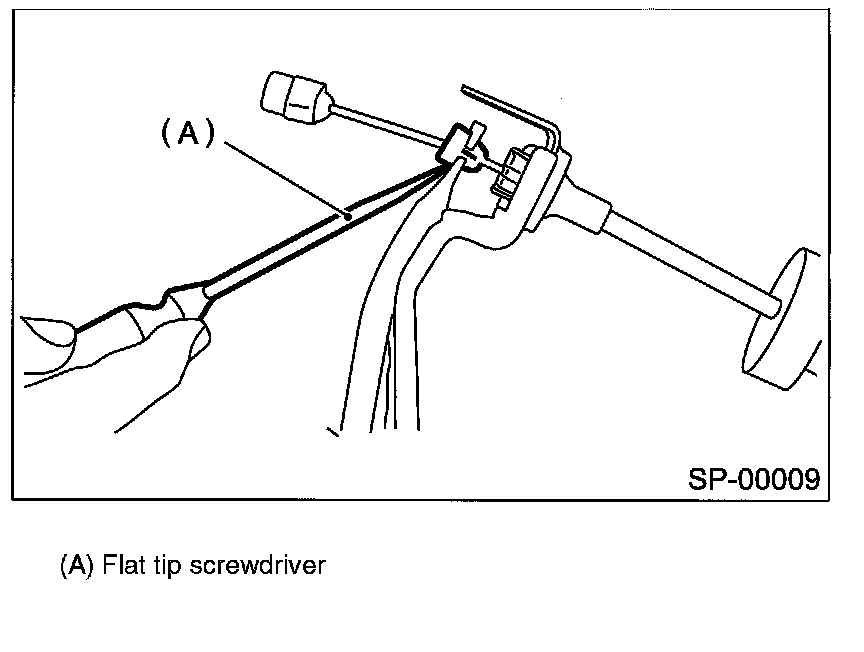

Disconnect the accelerator cable bushing from accelerator pedal lever.

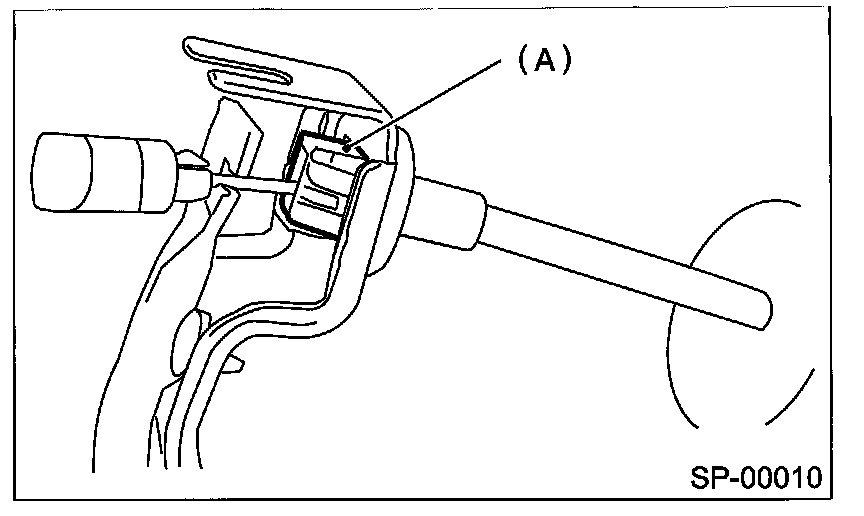

Disconnect the accelerator cable stopper (A) from bracket.







Separate the accelerator cable and bracket.


INSTALLATION
Install in the reverse order of removal.

NOTE:
- If the cable clamp is damaged, replace it with a new one.
- Never fail to cover the outer cable end with boot.
- Be careful not to kink the accelerator cable.
- Tightening torque: 18 Nm (1.8 kgf-m, 13.0 ft-lb)

After the installation, adjust the pedal.
