Atmospheric Pressure Solenoid Valve

Fuel Tank Sensor Control Valve

WARNING:
- Place "NO FIRE" signs near the working area.
- Be careful not to spill fuel.

REMOVAL
1. Remove the fuel tank.

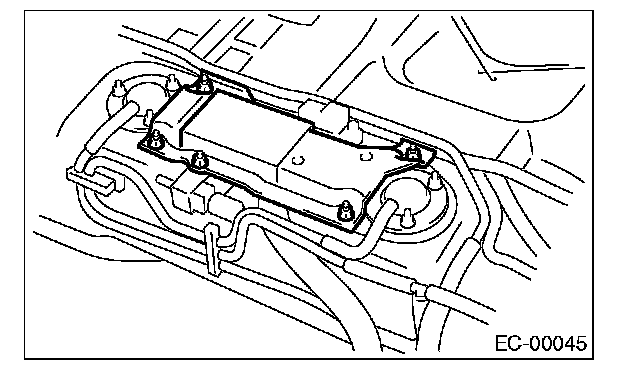

2. Remove the protector cover.

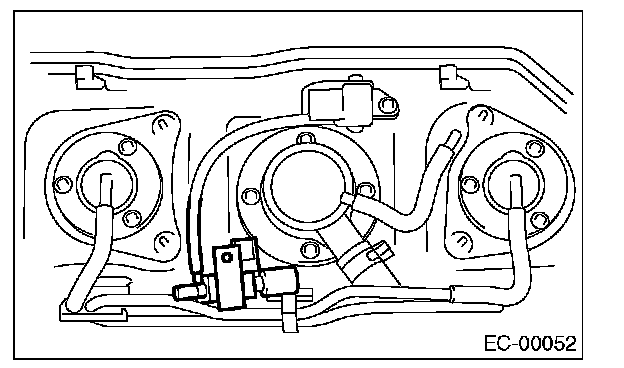

3. Disconnect the connector from fuel tank sensor control valve.




4. Disconnect hose and remove fuel tank sensor control valve.

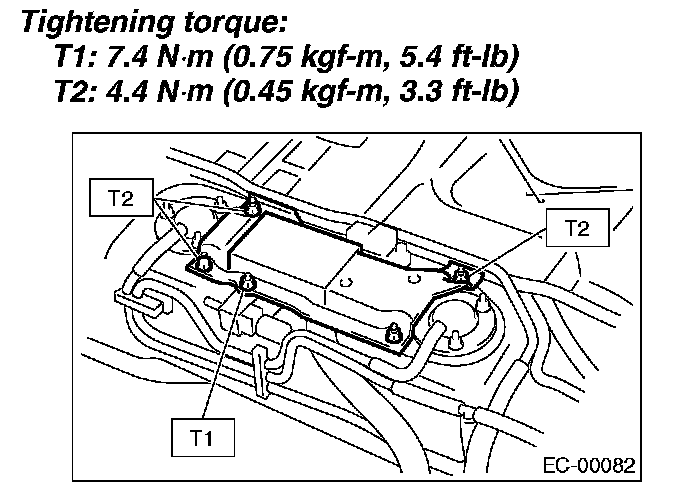

INSTALLATION




Install in the reverse order of removal.
