Canister Vent Valve: Service and Repair

Drain Valve

REMOVAL
Set the vehicle on the lift.
Disconnect the ground cable from battery.







Lift up the vehicle.
Remove the canister.

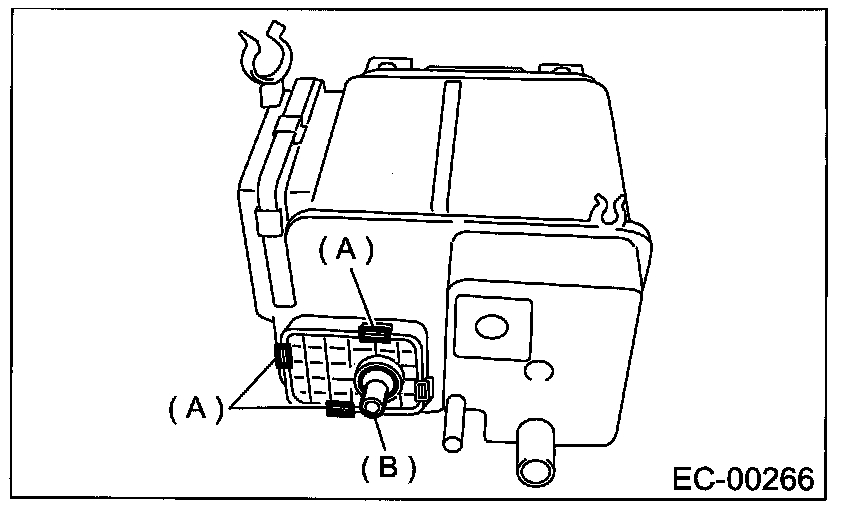

Remove clip (A), and then remove drain valve (B) from canister.







INSTALLATION
Install in the reverse order of removal.
