Canister Purge Solenoid: Service and Repair

Purge Control Solenoid Valve

REMOVAL

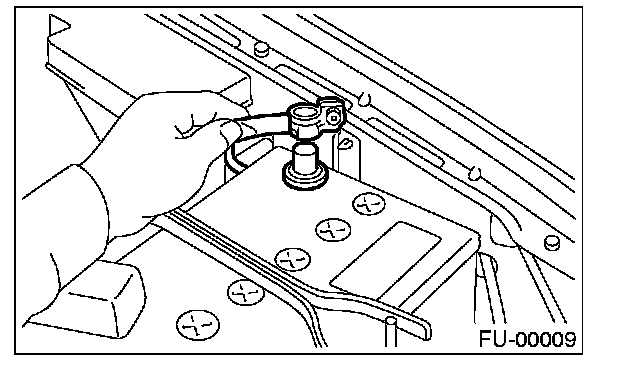

1. Disconnect the ground cable from battery.

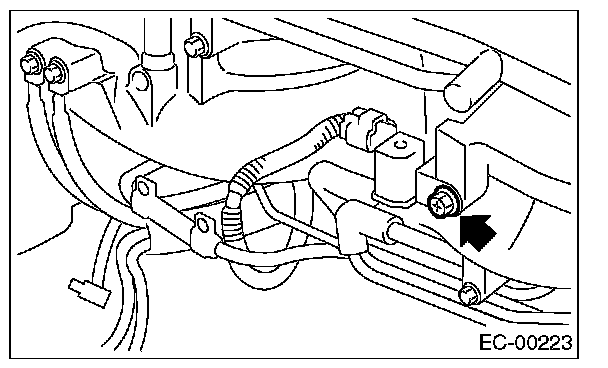

2. Disconnect the connector and hoses of purge control solenoid valve, and then remove the purge control solenoid valve.

INSTALLATION

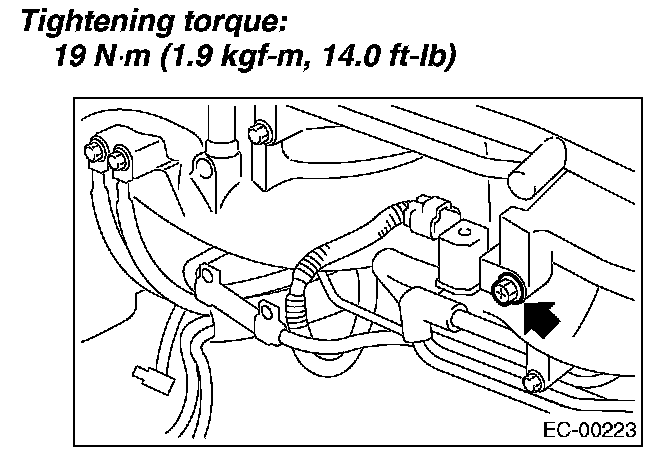

Install in the reverse order of removal.

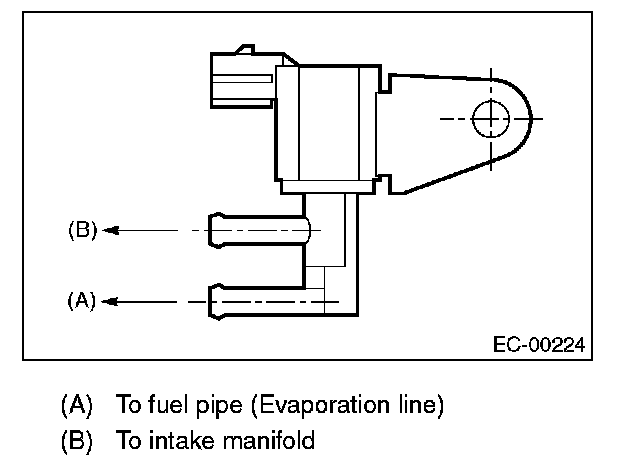

NOTE: Connect the evaporation hose as shown in the figure.
